Overview
LF DriverFlexunits series
Audio Technology
Audio Technology 8 I 52 20 06 SD
Audio Technology 8 I 52 20 06 SD is a 8" 8 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 33Hz, Qts 0.26, Vas 70L, Xmax 8mm, sensitivity 91.3dB, plus 180cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
180W
Sensitivity
91.3dB
EBP
110
Vented alignment
Vd
180cm³
T/S Parameters
Valid
Fs33Hz
Qts0.26
Qes0.30
Qms1.9
Vas70.0L
Re6.0Ω
Le0.20mH
BL10.0Tm
Sd225cm²
Mms22g
Xmax8.0mm
SPL91dB
Power180W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Audio Technology
8 I 52 20 06 SD
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
Audio Technology
8 A 77 20 06 SD
8"
Xmax8mm0%
Qts0.3+15%
BL9.3Tm-7%
Vas67L-4%
Qes0.35+17%
79%
Similarity
CIARE
HWB205
8"
Xmax7mm-12%
Qts0.29+12%
BL9.3Tm-7%
Vas79L+13%
Qes0.30%
75%
Similarity
£1,059.95
Scanspeak
21WE/4542T00
8"
Xmax7.2mm-10%
Qts0.28+8%
BL8.2Tm-18%
Vas54L-23%
Qes0.30%
73%
Similarity
£324.95

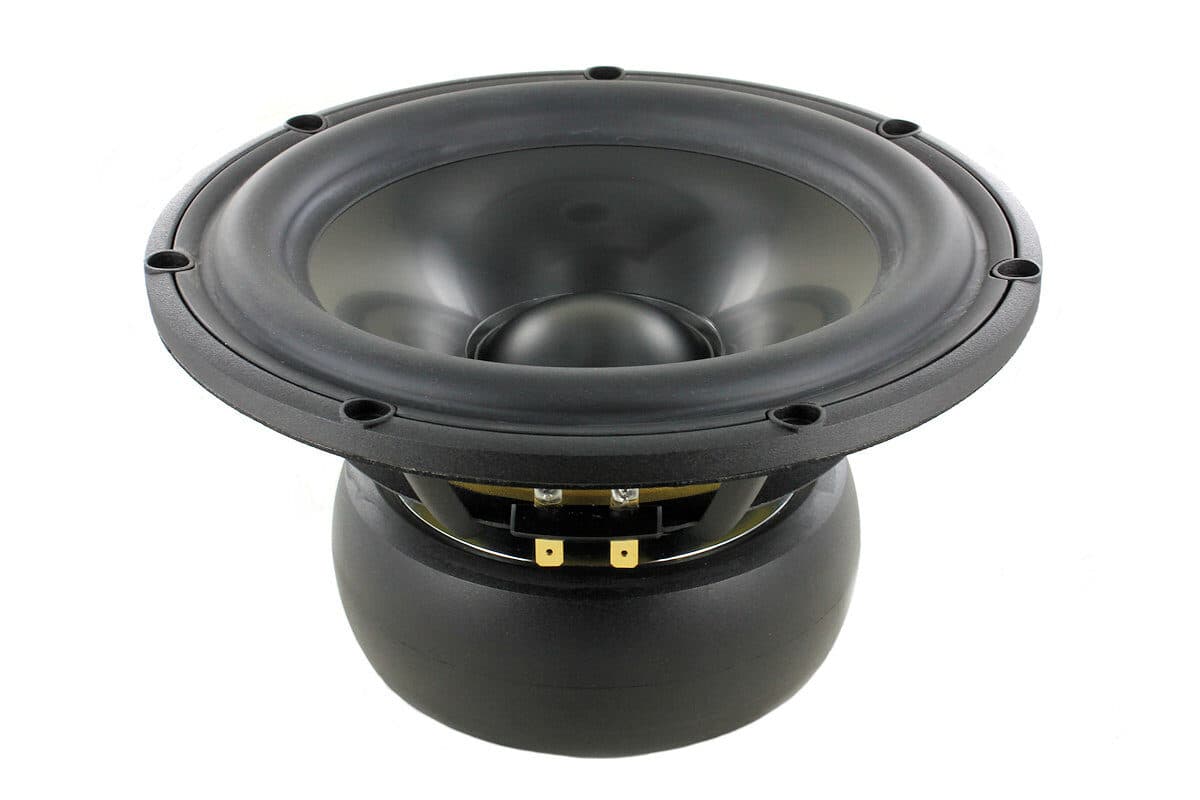

Scanspeak
22W/8857T00
8"
Xmax9mm+13%
Qts0.3+15%
BL10.1Tm+1%
Vas87.7L+25%
Qes0.32+7%
72%
Similarity
£1,166.95
Accuton
C220-6-222
8"
Xmax6mm-25%
Qts0.260%
BL11.7Tm+17%
Vas74L+6%
Qes0.27-10%
64%
Similarity
£120.21
Eighteen Sound
8NMB420
8"
Xmax5.8mm-28%
Qts0.28+8%
BL10Tm0%
Vas33L-53%
Qes0.31+3%
61%
Similarity

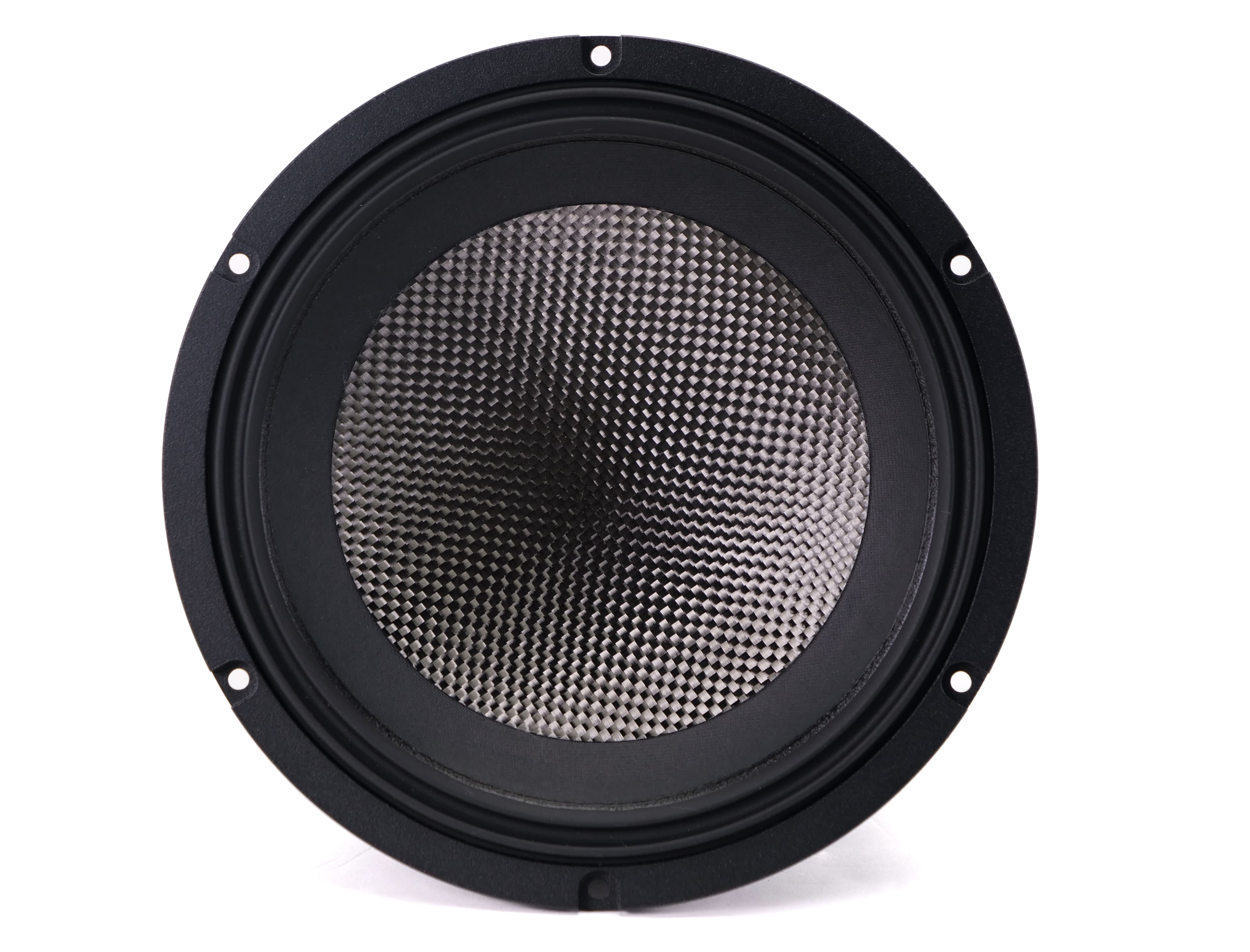

Kartesian
