LF DriverSandwich series
Accuton
Accuton S220-6-222
Accuton S220-6-222 is a 8" 6 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 25Hz, Qts 0.26, Vas 89.7L, Xmax 5.3mm, sensitivity 89.2dB, plus 118cm³ Vd and 93 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £908.95.
Size
8"
Impedance
6Ω
RMS Power
150W
Sensitivity
89.2dB
91.5dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
93
Either alignment
Vd
118cm³
T/S Parameters
Valid
Fs25Hz
Qts0.26
Qes0.27
Qms3.8
Vas89.7L
Re6.5Ω
Le0.36mH
BL10.9Tm
Sd224cm²
Mms32g
Xmax5.3mm
SPL89dB
Power150W
Impedance6Ω
F Low31Hz
F High1000Hz
Voice Coil55mm
Pricing & availability
Price definitionsPrice movement
Best current price
£908.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

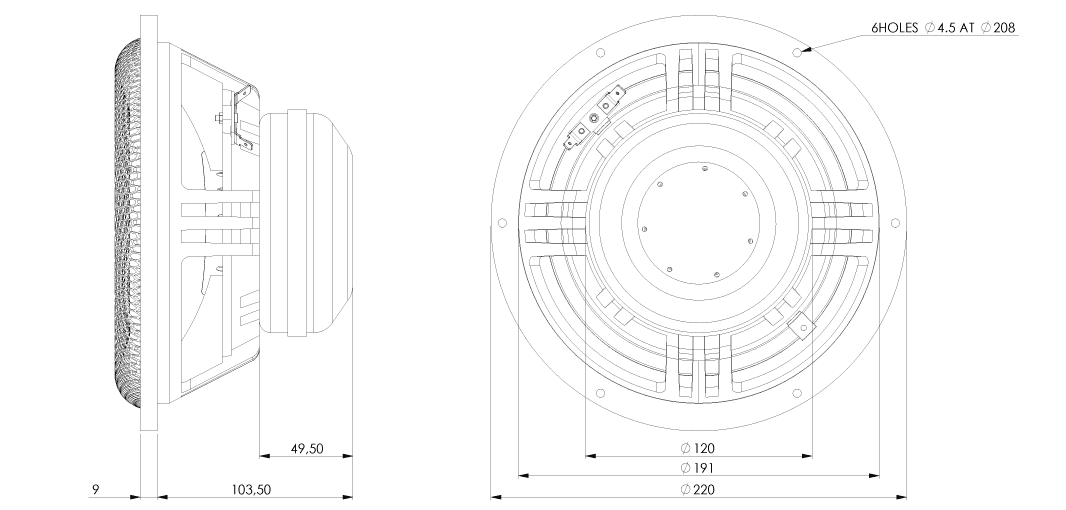

Dimensions & Physical
Diameter220.0mm
Overall Depth105.0mm
Cutout Diameter191.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
S220-6-222
8"
Best current price
£908.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
35%
Similarity
80% cheaper£178.95
Scanspeak
18W/8545K00
7"
Lower price
Xmax6.5mm+24%
Qts0.28+8%
BL8.2Tm-25%
Vas46.4L-48%
Qes0.3+11%
28%
Similarity
80% cheaper£180.95
Scanspeak
18W/8545-01
7"
Lower price
Xmax6.5mm+24%
Qts0.2-23%
BL8.4Tm-23%
Vas68.6L-24%
Qes0.22-19%
40%
Similarity
73% cheaper£246.95
Scanspeak
21W/8555-10
8"
Lower price
Xmax6.5mm+24%
Qts0.31+19%
BL8.2Tm-25%
Vas134L+49%
Qes0.33+22%
84%
Similarity
25% more£1,138.95
Accuton
C220-6-222
8"
Higher price
Xmax6mm+14%
Qts0.260%
BL11.7Tm+7%
Vas74L-17%
Qes0.270%
56%
Similarity
SEAS
H1471-08 CA22RNY
8"
Xmax6mm+14%
Qts0.3+15%
BL8.5Tm-22%
Vas82L-9%
Qes0.36+33%
52%
Similarity

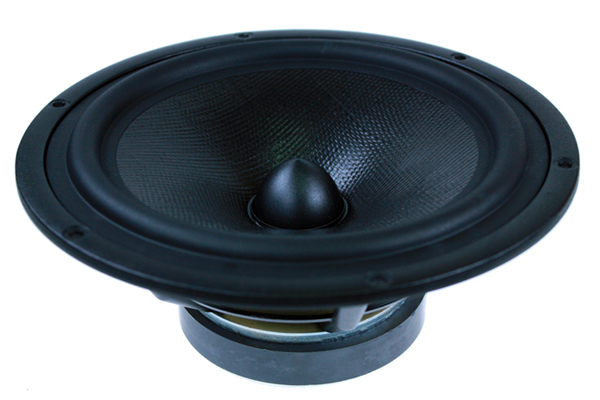

SEAS
