B&C gives the tuning only; the port is yours to size.
8-inch LF driver · 8CLA series · 64 mm voice coil · 250 W
B&C 8CLA64 8Ω
8 Ω · 70–4000 Hz
No current price
- Fs
- 71Hz
- Xmax
- 5.3mm
- SPL
- 95dB
- Pe
- 250W
- BL
- 16.4T·m
- Vd
- 117cm³
- Qts
- 0.24
- Vas
- 13L

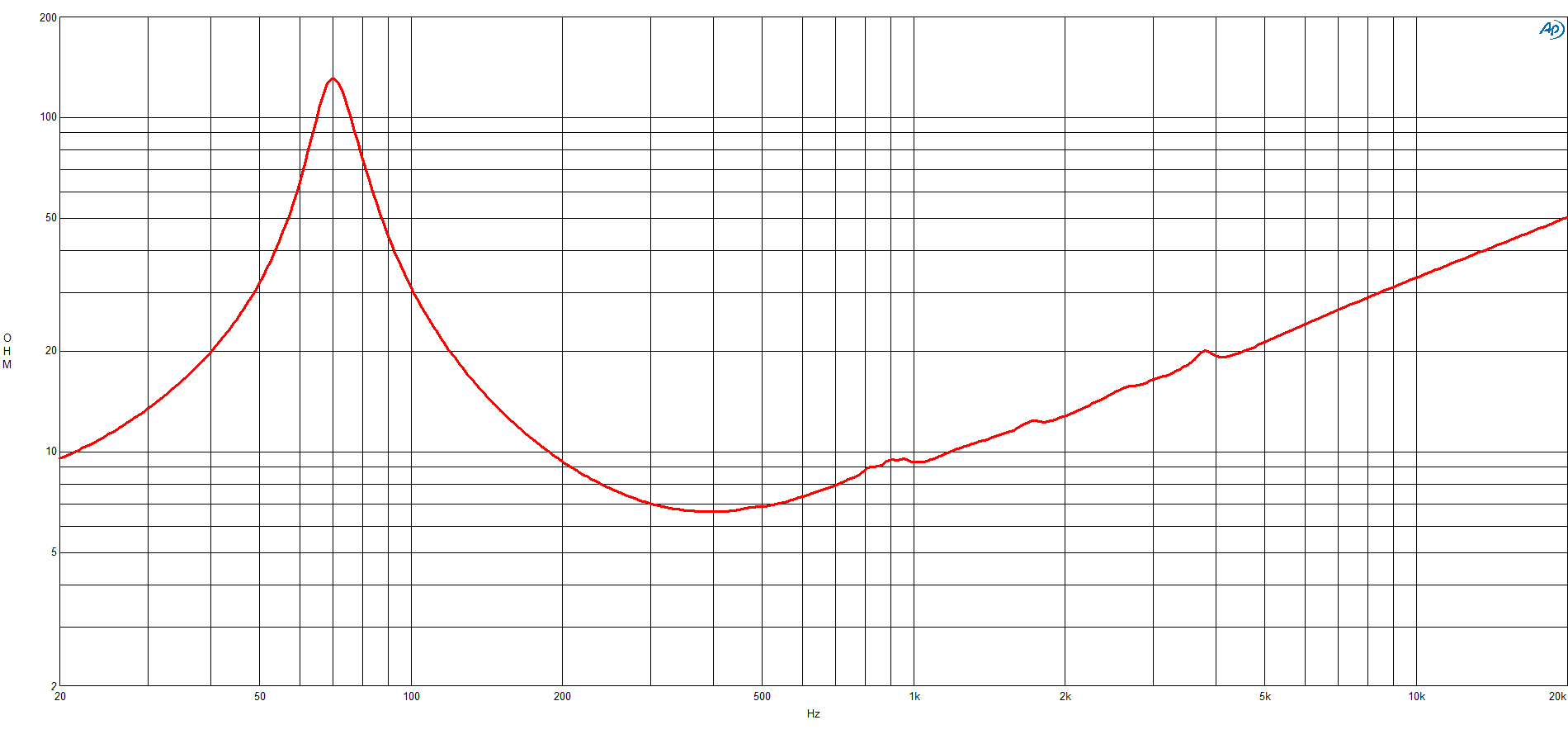

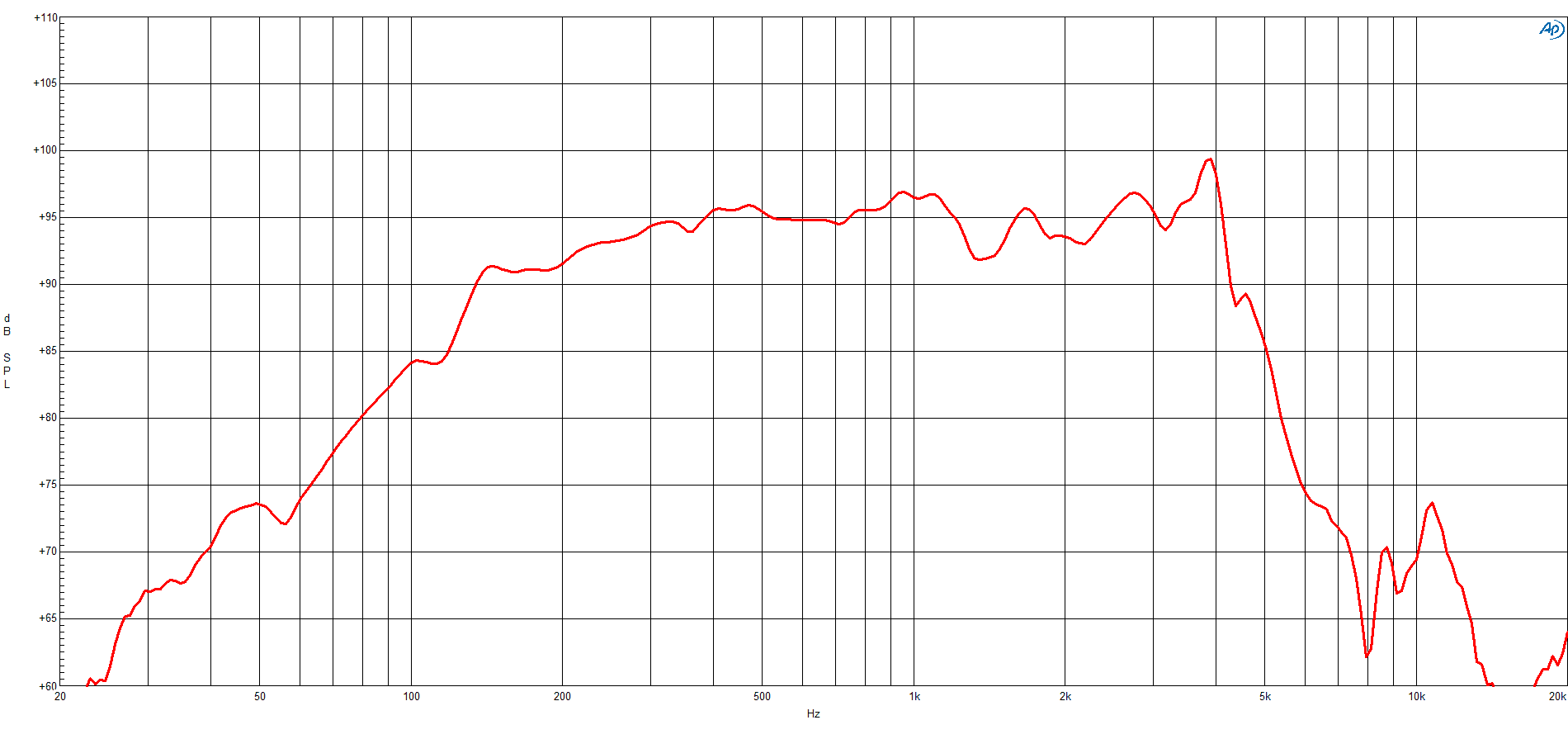

Published graphs
B&C 8CLA64 is an 8-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 71 Hz, Qts 0.24, Vas 12.5 L, Xmax 5.3 mm, sensitivity 94.6 dB, plus 117 cm³ Vd and 284 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 71Hz
- Qts
- 0.24
- Qes
- 0.25
- Qms
- 7.3
- Vas
- 12.5L
- Re
- 5.6Ω
- Le
- 1mH
Motor and cone
- BL
- 16.4T·m
- Sd
- 220cm²
- Mms
- 27g
- Xmax
- 5.3mm
- Vd †
- 117cm³
- Voice coil
- 64mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 96dB
- Power
- 250W
- Nominal power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- Range
- 70–4000Hz
- EBP †
- 284 · Leans vented
Size and mounting
- Diameter
- 209mm
- Cutout
- 185mm
- Bolt circle
- 198mm
- Depth
- 95mm
- Weight
- 1.7kg
Sensitivity shows 94.6 dB, calculated from the T/S values. B&C publishes 96.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 16.4T·m
- Fs
- 71Hz
- Le
- 1mH
- Re
- 5.6Ω
- Sd
- 220cm²
- Mms
- 27g
- Qes
- 0.25
- Qms
- 7.3
- Qts
- 0.24
- SPL
- 94.6dB
- Vas
- 12.5L
- Xmax
- 5.3mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1.20T
- Sensitivity
- 96dB
- Low limit
- 70Hz
- Nominal power
- 250W
- Calculated sensitivity †
- 94.6dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 96dB
- Min. impedance
- 6.5Ω
- Voice coil
- 64mm
- Weight
- 1.7kg
- Diameter
- 209mm
- Depth
- 95mm
- Cutout
- 185mm
- Bolt circle
- 198mm
- Bl
- 16.4 Tm
- Fs
- 71 Hz
- Le
- 1 mH
- Re
- 5.6 Ω
- Sd
- 220 cm² (34.1 in²)
- Ebp
- 284 Hz
- Mms
- 27 g
- Qes
- 0.25
- Qms
- 7.3
- Qts
- 0.24
- Vas
- 12.5 dm³ (0.44 ft³)
- Η0
- 1.8 %
- Cone
- RCK008CLA648
- Xmax
- 5.3 mm
- Xvar
- 6.6 mm
- Depth
- 95 mm (3.74 in)
- Spider
- Single
- Cone shape
- Curvilinear
- Net weight
- 1.7 kg (3.75 lb)
- Pole design
- Straight Pole
- Sensitivity
- 96 dB
- Flux density
- 1.2 T
- Winding depth
- 14.5 mm (0.57 in)
- Surround shape
- Double Roll
- Former material
- SV Kraft
- Frequency range
- 70 Hz - 4000 Hz
- Magnet material
- Neodymium Inside Slug
- Nominal diameter
- 200 mm (8 in)
- Overall diameter
- 209 mm (8.23 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 8 mm (0.31 in)
- Recommended loading
- Vented Box
- Voice coil diameter
- 64 mm (2.5 in)
- Bolt circle diameter
- 198 mm (7.8 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 185 mm (7.3 in)
- Nominal power handling
- 250 W
- Continuous power handling
- 500 W
- Flange and gasket thickness
- 9 mm (0.35 in)
- Air volume occupied by driver
- 1.1 dm³ (0.04 ft³)
