LF DriverMAF082 series
Lavoce
Lavoce MAF082.00

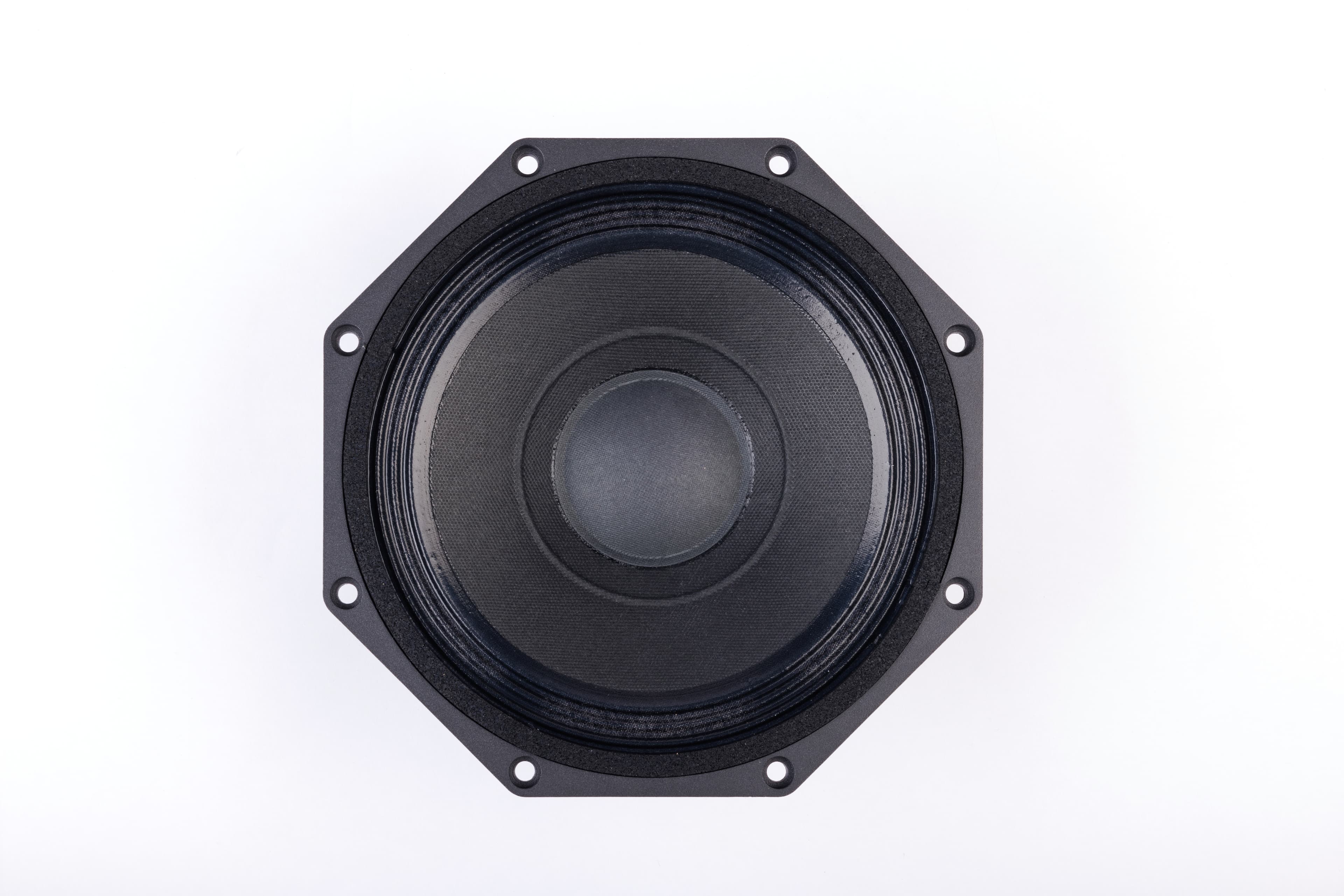

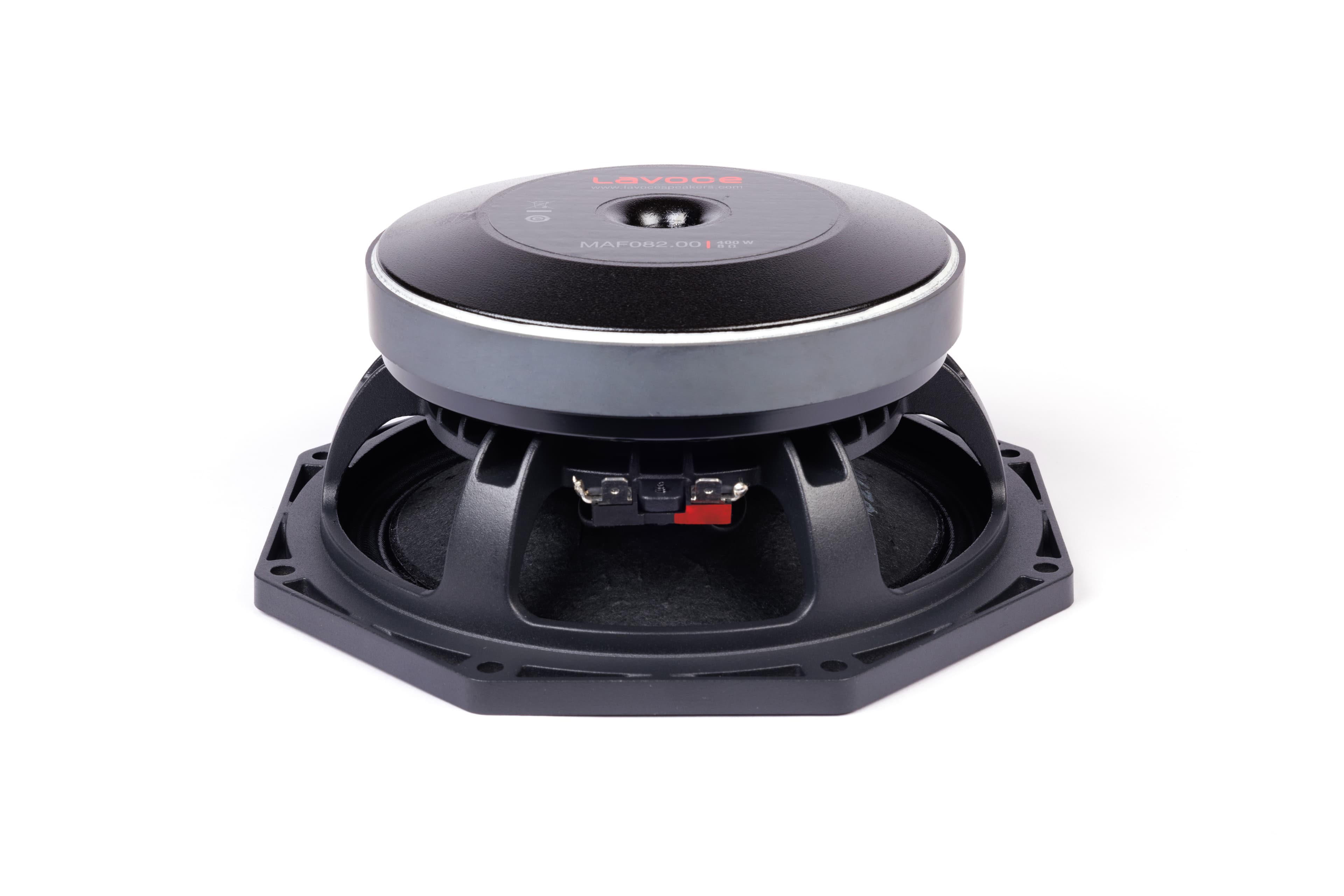

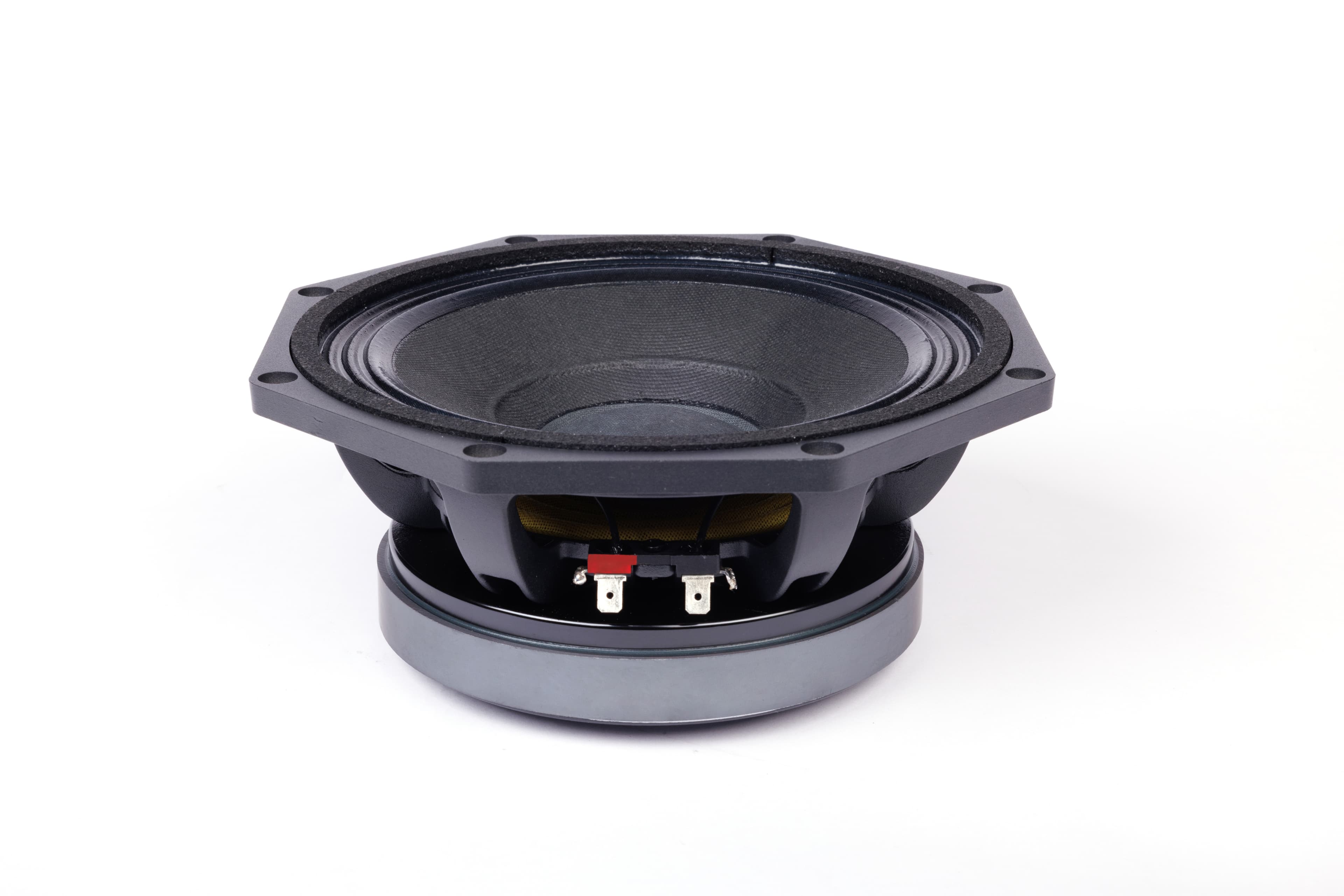

Lavoce MAF082.00 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 85Hz, Qts 0.20, Vas 11.3L, Xmax 2.6mm, sensitivity 97dB, plus 57cm³ Vd and 386 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £58.00.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
97.0dB
98.5dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
386
Vented alignment
Vd
57cm³
T/S Parameters
Valid
Fs85Hz
Qts0.20
Qes0.22
Qms3.1
Vas11.3L
Re5.7Ω
Le0.46mH
BL17.2Tm
Sd220cm²
Mms21g
Xmax2.6mm
SPL97dB
Power200W
Impedance8Ω
Min Impedance7.5Ω
F Low90Hz
F High5000Hz
Voice Coil51mm
Pricing & availability
Price definitionsPrice movement
Best current price
£58.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

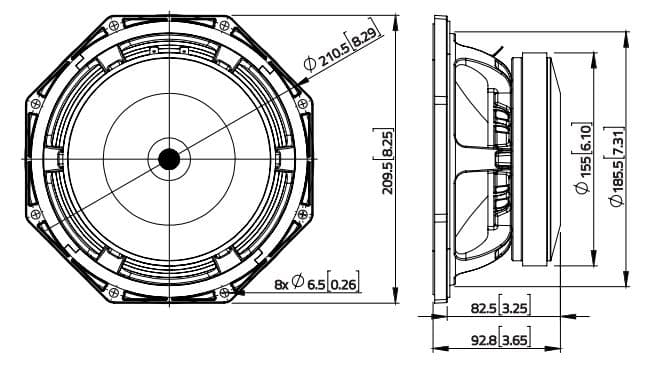

Dimensions & Physical
Weight4.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
MAF082.00
8"
Best current price
£58.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
66% more£96.00
B&C
8PE21
8"
Higher price
Xmax2.5mm-4%
Qts0.19-5%
BL16.6Tm-3%
Vas13L+15%
Qes0.2-9%
73%
Similarity
Oberton
8M250
8"
Xmax2.8mm+6%
Qts0.2+1%
BL13.7Tm-20%
Vas15.6L+38%
Qes0.2-7%
