8-inch LF driver · 8M series · 51 mm voice coil · 250 W
Oberton 8M250 8Ω
8 Ω · 90–5000 Hz
No current price
- Fs
- 74Hz
- Xmax
- 2.8mm
- SPL
- 97dB
- Pe
- 250W
- BL
- 13.7T·m
- Vd
- 56cm³
- Qts
- 0.20
- Vas
- 16L

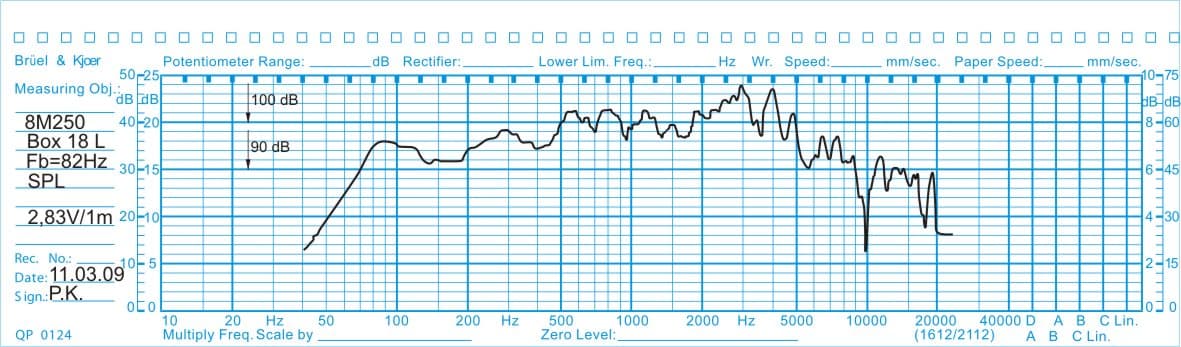

Published graphs
Oberton 8M250 is an 8-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 74 Hz, Qts 0.20, Vas 15.6 L, Xmax 2.8 mm, sensitivity 97 dB, plus 56 cm³ Vd and 365 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 74Hz
- Qts
- 0.20
- Qes
- 0.20
- Qms
- 14.0
- Vas
- 15.6L
- Re
- 5Ω
- Le
- 0.42mH
Motor and cone
- BL
- 13.7T·m
- Sd
- 202cm²
- Mms
- 16g
- Xmax
- 2.8mm
- Vd †
- 56cm³
- Voice coil
- 51mm
- Flux density
- 1.43T
Power and response
- Sensitivity †
- 97dB
- Manufacturer sensitivity
- 500dB
- Power
- 250W
- Impedance
- 8Ω
- Min. impedance
- 6.2Ω
- Range
- 90–5000Hz
- EBP †
- 365 · Leans vented

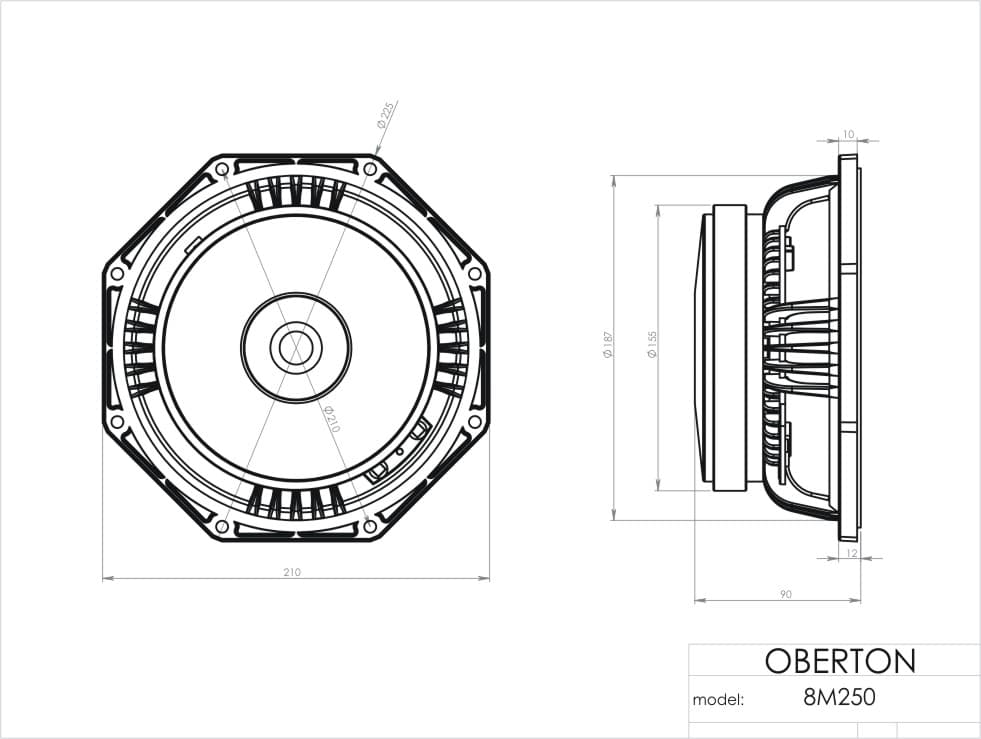

Size and mounting
- Diameter
- 225mm
- Cutout
- 187mm
- Bolt circle
- 210mm
- Depth
- 90mm
- Weight
- 4.3kg
Other published values
- Cms
- 0.28mm/N
- Power Program
- 500
Sensitivity shows 97.0 dB, calculated from the T/S values. Oberton publishes 500.0 dB, 403.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 8″
- BL
- 13.7T·m
- Fs
- 74Hz
- Le
- 0.42mH
- Re
- 5Ω
- Sd
- 202cm²
- Cms
- 0.28mm/N
- Mms
- 16g
- Qes
- 0.20
- Qms
- 14.0
- Qts
- 0.20
- SPL
- 97dB
- Vas
- 15.6L
- Xmax
- 2.8mm
- Power
- 250W
- Impedance
- 8Ω
- Flux density
- 1.43T
- Sensitivity
- 500dB
- Low limit
- 90Hz
- Power Program
- 500
- Calculated sensitivity †
- 97dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 500dB
- Min. impedance
- 6.2Ω
- Voice coil
- 51mm
- Weight
- 4.3kg
- Diameter
- 225mm
- Depth
- 90mm
- Cutout
- 187mm
- Bolt circle
- 210mm
