Overview
LF Driver
Eighteen Sound
Eighteen Sound 8NM610
Eighteen Sound 8NM610 is a 8" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 260Hz, Qts 0.21, Vas 1.5L, Xmax 3mm, sensitivity 102.4dB, plus 66cm³ Vd and 1083 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £327.41.
Size
8"
Impedance
8Ω
RMS Power
400W
Sensitivity
102.4dB
104.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
1083
Vented alignment
Vd
66cm³

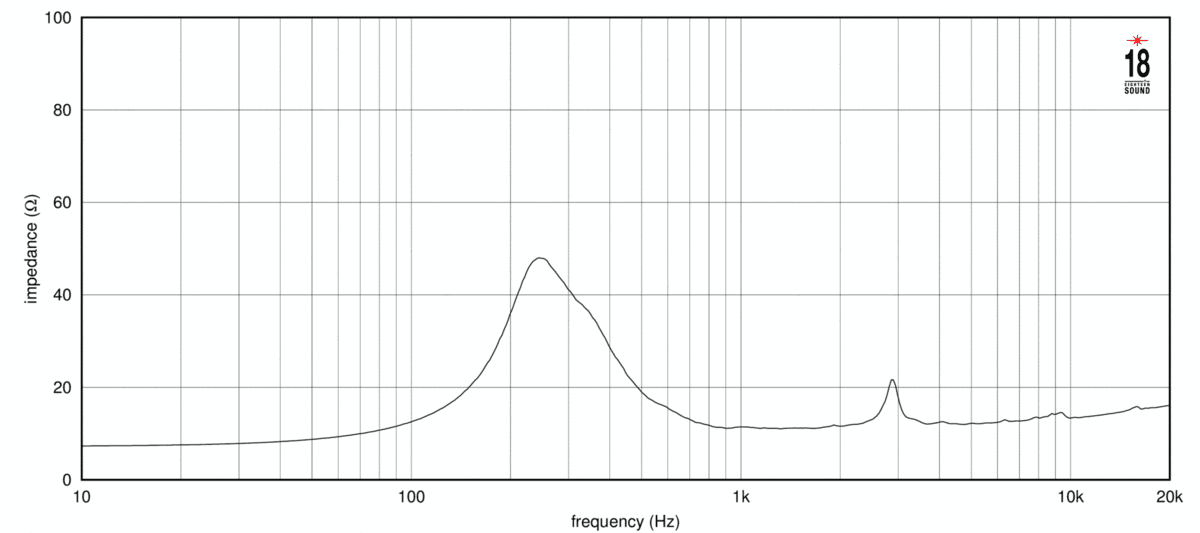

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence5,430 selected pixels of 5,520
T/S Parameters
Valid
Fs260Hz
Qts0.21
Qes0.24
Qms1.5
Vas1.5L
Re6.5Ω
Le0.40mH
BL28.3Tm
Sd220cm²
Mms18g
Xmax3.0mm
SPL102dB
Power400W
Power Nominal400W
Impedance8Ω
F Low400Hz
F High5000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
leanaudio
£327.41
inc VAT·1 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter240.0mm
Overall Depth113.0mm
Cutout Diameter192.0mm
Bolt Circle Diameter220.0mm
