Overview
LF Driver
Eighteen Sound

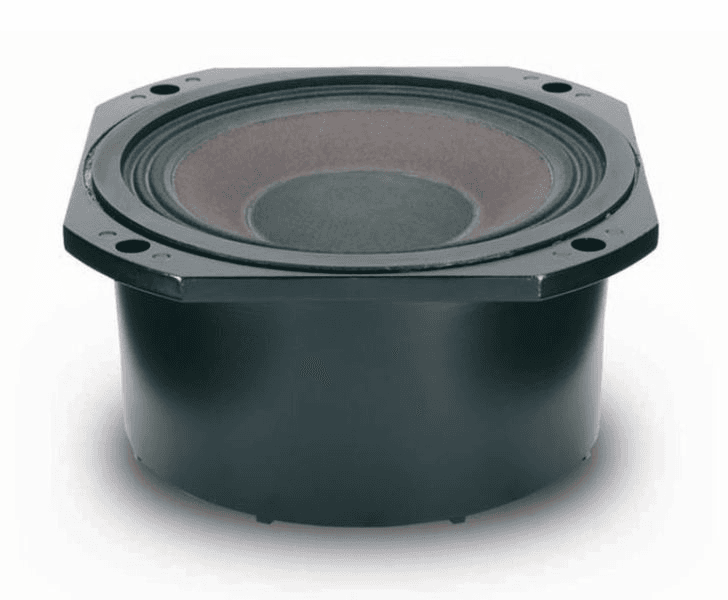

Eighteen Sound 8NM610
Eighteen Sound 8NM610 is a 8" 16 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 260Hz, Qts 0.23, Vas 1.6L, Xmax 3mm, sensitivity 102dB, plus 66cm³ Vd and 929 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
16Ω
RMS Power
400W
Sensitivity
102.0dB
104.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
929
Vented alignment
Vd
66cm³
T/S Parameters
Valid
Fs260Hz
Qts0.23
Qes0.28
Qms1.2
Vas1.6L
Re10.0Ω
Le0.50mH
BL31.0Tm
Sd220cm²
Mms17g
Xmax3.0mm
SPL102dB
Power400W
Power Nominal400W
Impedance16Ω
F Low400Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.5kg
Diameter240.0mm
Overall Depth113.0mm
Cutout Diameter192.0mm
Bolt Circle Diameter220.0mm
