REDCATT 81NPM-1 8Ω
8 Ω
No current price
- Fs
- 72Hz
- Xmax
- 6mm
- SPL
- 93dB
- Pe
- 200W
- BL
- 16.7T·m
- Vd
- 131cm³
- Qts
- 0.33
- Vas
- 10L
REDCATT 81NPM-1 is an 8-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 72 Hz, Qts 0.33, Vas 10.3 L, Xmax 6 mm, sensitivity 92.6 dB, plus 131 cm³ Vd and 212 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 72Hz
- Qts
- 0.33
- Qes
- 0.34
- Qms
- 8.0
- Vas
- 10.3L
- Re
- 5.2Ω
- Le
- 0.50mH
Motor and cone
- BL
- 16.7T·m
- Sd
- 219cm²
- Mms
- 41g
- Xmax
- 6mm
- Vd †
- 131cm³
- Voice coil
- 76mm
Power and response
- Sensitivity †
- 92.6dB
- Manufacturer sensitivity
- 93dB
- Power
- 200W
- Impedance
- 8Ω
- EBP †
- 212 · Leans vented
Size and mounting
- Diameter
- 210mm
- Cutout
- 186.9mm
- Bolt circle
- 195.5mm
- Weight
- 3.2kg
Other published values
- Xmech
- 16.5
- Power Peak
- 800
Other dimensions
- Mounting Depth
- 101.3
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 8″
- BL
- 16.7T·m
- Fs
- 72Hz
- Le
- 0.50mH
- Re
- 5.2Ω
- Sd
- 219cm²
- Mms
- 41g
- Qes
- 0.34
- Qms
- 8.0
- Qts
- 0.33
- SPL
- 92.6dB
- Vas
- 10.3L
- Xmax
- 6mm
- Xmech
- 16.5
- Power
- 200W
- Impedance
- 8Ω
- Power Peak
- 800
- Sensitivity
- 93dB
- Calculated sensitivity †
- 92.6dB
- Manufacturer sensitivity
- 93dB
- Voice coil
- 76mm
- Weight
- 3.2kg
- Diameter
- 210mm
- Mounting Depth
- 101.3
- Cutout
- 186.9mm
- Bolt circle
- 195.5mm
02
Compare
Same-size drivers, compared with the 81NPM-1. Clear differences are green when better and red when worse.
This driver81NPM-1
Best price
–
Fs
72 Hz
Qts
0.33
Vas
10.3 L
BL
16.7 T·m
Xmax
6 mm
Sensitivity
92.6 dB
Power
200 W
LavoceWAF082.00
£71.42Fs78 Hz +8%
Qts0.37 +12%, worse
Vas11.9 L +16%, worse
BL12.5 T·m −25%, worse
Xmax6.3 mm +5%
Sensitivity93.4 dB +0.8
Beyma8WRS300
£75.85Fs65 Hz −10%
Qts0.28 −15%, better
Vas15 L +46%, worse
BL15.2 T·m −9%
Xmax6 mm –
Sensitivity93.4 dB +0.8
B&C8PS21
£81.29Fs73 Hz –
Qts0.33 –
Vas14 L +36%, worse
BL12.6 T·m −25%, worse
Xmax5 mm −17%, worse
Sensitivity93.8 dB +1.2

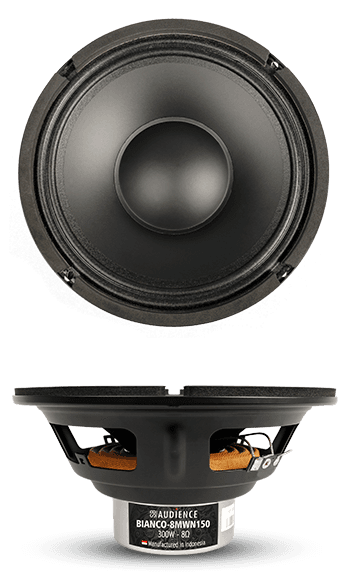

SB AudienceBIANCO-8MWN150
£81.76Fs74 Hz –
Qts0.38 +15%, worse
Vas9.9 L −4%
BL16.5 T·m –
Xmax6.0 mm –
Sensitivity92 dB −0.6
Beyma8WR300
£91.82Fs65 Hz −10%
Qts0.27 −18%, better
Vas15 L +46%, worse
BL15.5 T·m −7%
Xmax6 mm –
Sensitivity93.6 dB +1
B&C8FG51
£96.47Fs49 Hz −32%, better
Qts0.32 −3%
Vas20 L +94%, worse
BL12.9 T·m −23%, worse
Xmax6.5 mm +8%
Sensitivity90.4 dB −2.2, worse
CIARENDI8
£105.27Fs81 Hz +13%, worse
Qts0.33 –
Vas13 L +26%, worse
BL12.8 T·m −23%, worse
Xmax4.5 mm −25%, worse
Sensitivity94.9 dB +2.3, better
B&C8FG64
£107.57Fs51 Hz −29%, better
Qts0.31 −6%
Vas15 L +46%, worse
BL15.8 T·m −5%
Xmax7 mm +17%, better
Sensitivity90 dB −2.6, worse
LavoceWAN082.01
£129.51Fs85 Hz +18%, worse
Qts0.32 −3%
Vas9 L −13%, better
BL14.4 T·m −13%, worse
Xmax5.8 mm −3%
Sensitivity94 dB +1.4
BMS8S215
£137.66Fs88 Hz +22%, worse
Qts0.31 −6%
Vas11.0 L +7%
BL13.6 T·m −19%, worse
Xmax4.3 mm −29%, worse
Sensitivity95.6 dB +3, better
LavoceWAN082.02
£149.92Fs80 Hz +11%, worse
Qts0.23 −30%, better
Vas9.0 L −13%, better
BL17.8 T·m +6%
Xmax5.8 mm −3%
Sensitivity94.7 dB +2.1, better
BMS8N515
£171.89Fs88 Hz +22%, worse
Qts0.30 −9%
Vas11.0 L +7%
BL13.8 T·m −17%, worse
Xmax4 mm −33%, worse
Sensitivity95.7 dB +3.1, better
B&C8FCX51
£186.30Fs69 Hz −4%
Qts0.34 +3%
Vas16 L +55%, worse
BL11.5 T·m −31%, worse
Xmax6 mm –
Sensitivity93.7 dB +1.1
FaitalPRO8HX230
£238.20Fs70 Hz –
Qts0.29 −12%, better
Vas14.7 L +43%, worse
BL15 T·m −10%, worse
Xmax6.2 mm –
Sensitivity94.1 dB +1.5
FaitalPRO8HX200
£254.42Fs76 Hz +6%
Qts0.30 −9%
Vas13.1 L +27%, worse
BL13.8 T·m −17%, worse
Xmax4.9 mm −18%, worse
Sensitivity94.7 dB +2.1, better
Eighteen Sound8NMB750
£256.89Fs88 Hz +22%, worse
Qts0.27 −18%, better
Vas6.9 L −33%, better
BL18.7 T·m +12%, better
Xmax6.1 mm –
Sensitivity94.3 dB +1.7
FaitalPRO8HX240
£284.30Fs70 Hz –
Qts0.30 −9%
Vas12.9 L +25%, worse
BL13.8 T·m −17%, worse
Xmax6.2 mm –
Sensitivity93.6 dB +1
REDCATT81XR
£290.19Fs73 Hz –
Qts0.30 −9%
Vas7.2 L −30%, better
BL16 T·m −4%
Xmax6.3 mm +6%
Sensitivity90.8 dB −1.8
B&C8CXN64
No current priceFs71 Hz –
Qts0.33 –
Vas10.5 L –
BL15.5 T·m −7%
Xmax5.5 mm −8%
Sensitivity92.3 dB –
Beyma8CFX260ND
No current priceFs100 Hz +39%, worse
Qts0.35 +6%
Vas8 L −22%, better
BL13.5 T·m −19%, worse
Xmax6 mm –
Sensitivity95.4 dB +2.8, better
No photo
PHL Audio2420
No current priceFs72 Hz –
Qts0.33 –
Vas13.3 L +29%, worse
BL12.9 T·m −23%, worse
Xmax5.5 mm −8%
Sensitivity93.3 dB +0.7
BMS8N519
No current priceFs75 Hz +4%
Qts0.37 +12%, worse
Vas10.9 L +6%
BL13.8 T·m −17%, worse
Xmax6.3 mm +5%
Sensitivity92.5 dB –
Dayton Audio8MB200N-8
No current priceFs94 Hz +31%, worse
Qts0.32 −3%
Vas8.8 L −15%, better
BL14.4 T·m −14%, worse
Xmax3.9 mm −35%, worse
Sensitivity95.2 dB +2.6, better
No photo
PHL Audio2520
No current priceFs109 Hz +51%, worse
Qts0.33 –
Vas9 L −13%, better
BL14.3 T·m −14%, worse
Xmax2 mm −67%, worse
Sensitivity97 dB +4.4, better
No photo
PHL Audio2440
No current priceFs77 Hz +7%
Qts0.31 −6%
Vas13.1 L +27%, worse
BL12.8 T·m −23%, worse
Xmax5 mm −17%, worse
Sensitivity94.5 dB +1.9
Eighteen Sound8MB710
No current priceFs108 Hz +50%, worse
Qts0.32 −3%
Vas9 L −13%, better
BL13.4 T·m −20%, worse
Xmax2.3 mm −63%, worse
Sensitivity97.1 dB +4.5, better
Eighteen Sound8MB720
No current priceFs108 Hz +50%, worse
Qts0.32 −3%
Vas9 L −13%, better
BL13.4 T·m −20%, worse
Xmax2.3 mm −63%, worse
Sensitivity97.1 dB +4.5, better
Eighteen Sound8NTLW2500
No current priceFs76 Hz +6%
Qts0.30 −9%
Vas7.6 L −26%, better
BL18.1 T·m +8%
Xmax7.6 mm +27%, better
Sensitivity92.3 dB –
JensenBP8150-8
No current priceFs75 Hz +4%
Qts0.33 –
Vas13.1 L +27%, worse
BL13.3 T·m −20%, worse
Xmax3.1 mm −48%, worse
Sensitivity93.8 dB +1.2
