LF DriverWAF082 series
Lavoce
Lavoce WAF082.00
Lavoce WAF082.00 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 78Hz, Qts 0.37, Vas 11.9L, Xmax 6.3mm, sensitivity 93.4dB, plus 139cm³ Vd and 190 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £71.42.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
93.4dB
95.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
190
Vented alignment
Vd
139cm³
Frequency response

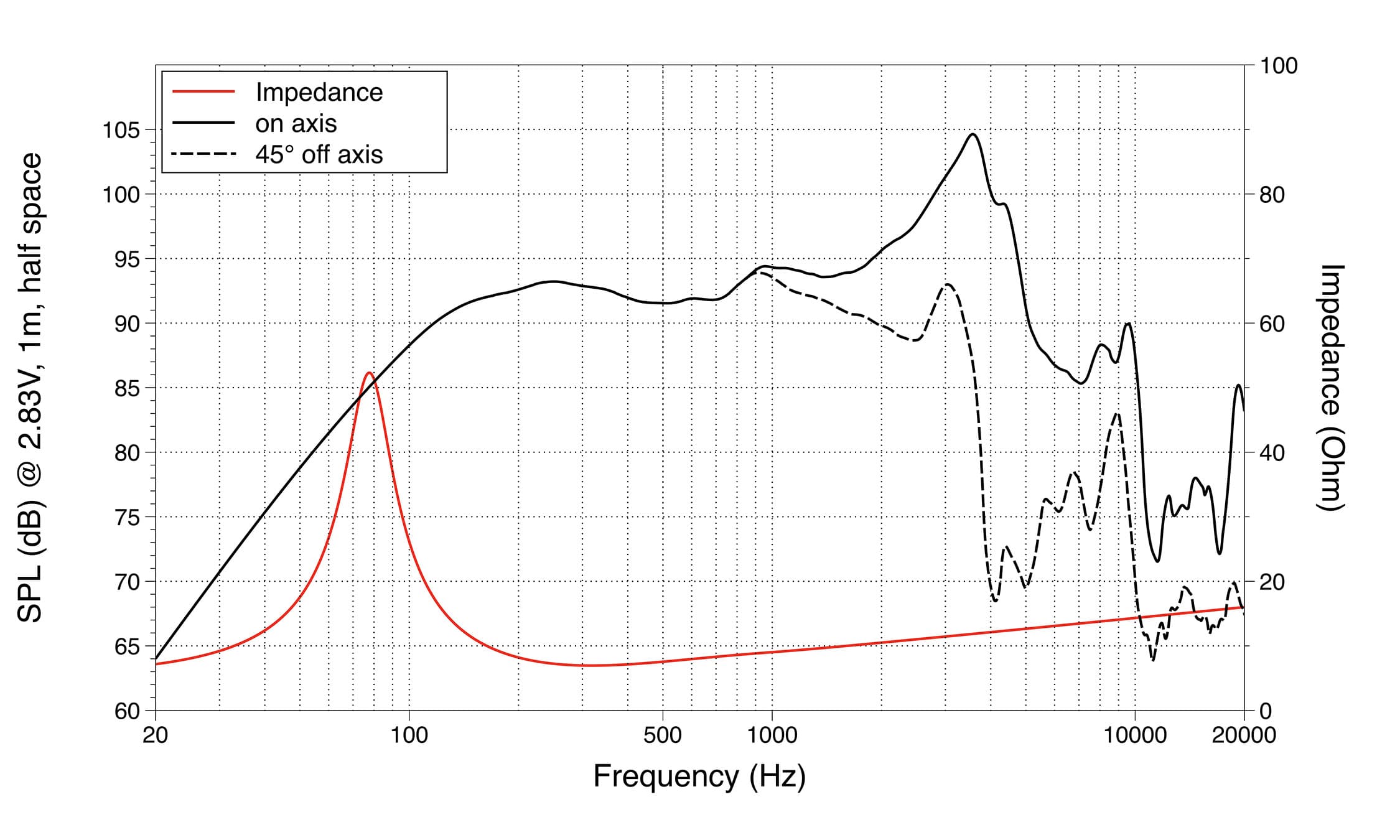

Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs78Hz
Qts0.37
Qes0.41
Qms3.7
Vas11.9L
Re5.5Ω
Le0.18mH
BL12.5Tm
Sd220cm²
Mms24g
Xmax6.3mm
SPL93dB
Power200W
Impedance8Ω
Min Impedance7.0Ω
F Low80Hz
F High3000Hz
Voice Coil51mm
Pricing & availability
Price definitionsPrice movement
Best current price
£71.42
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
