LF DriverPrestige series
SEAS
SEAS H1471-08 CA22RNY
SEAS H1471-08 CA22RNY is a 8" 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 34Hz, Qts 0.30, Vas 82L, Xmax 6mm, sensitivity 91.5dB, plus 138cm³ Vd and 94 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
90W
Sensitivity
91.5dB
EBP
94
Either alignment
Vd
138cm³

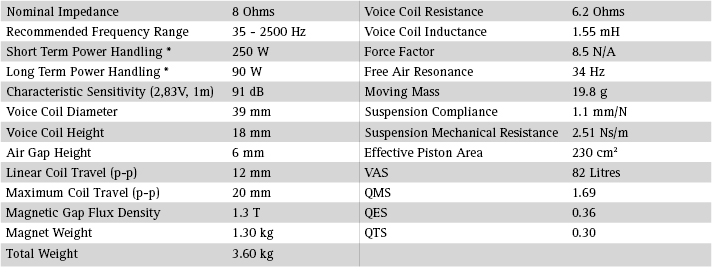

T/S Parameters
Valid
Fs34Hz
Qts0.30
Qes0.36
Qms1.7
Vas82.0L
Re6.2Ω
Le1.55mH
BL8.5Tm
Sd230cm²
Mms20g
Xmax6.0mm
SPL92dB
Power90W
Impedance8Ω
F Low35Hz
F High2500Hz
Voice Coil39mm
Flux Density1.30T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

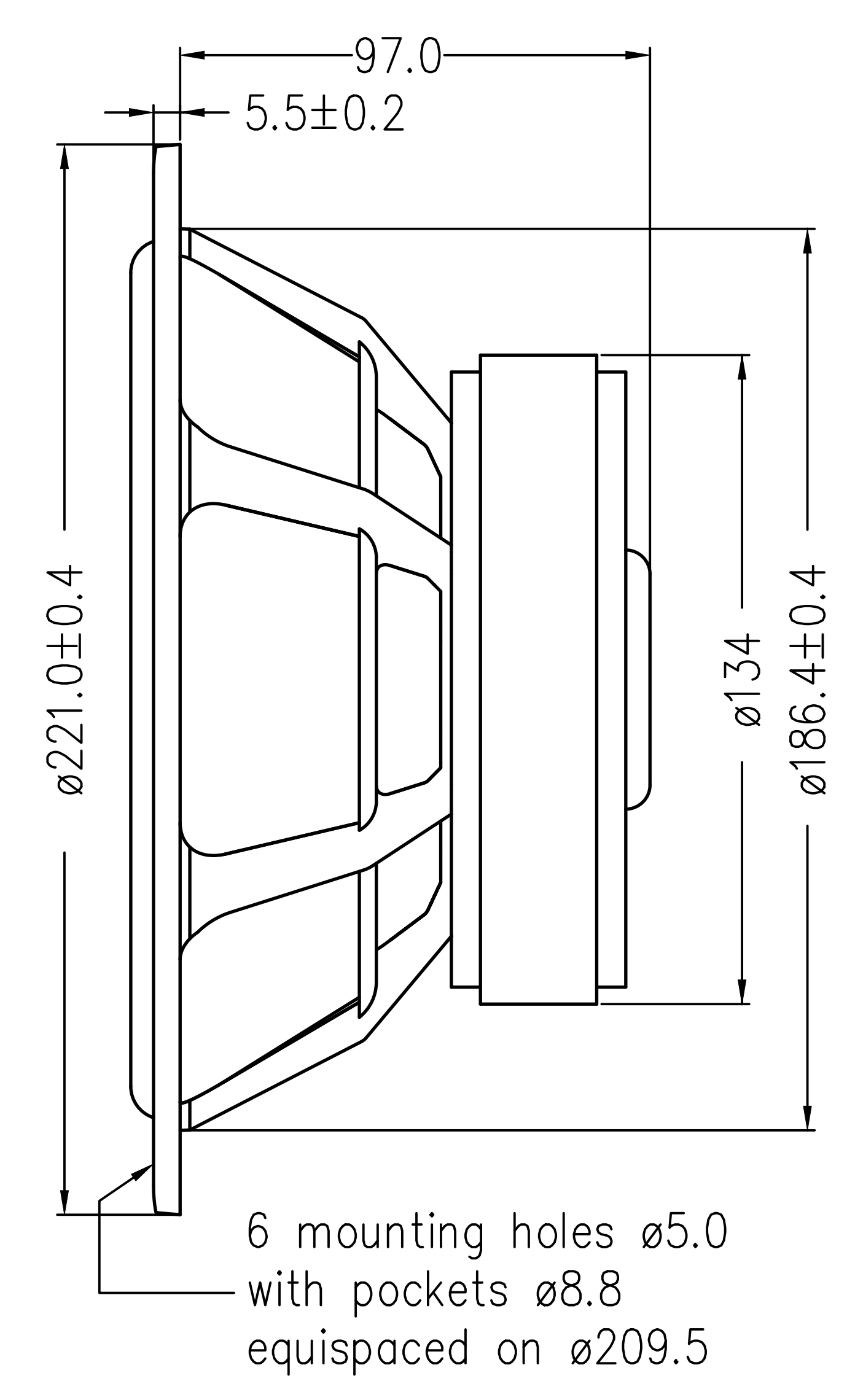

Dimensions & Physical
Weight3.6kg
