Overview
LF DriverPrestige series
SEAS
SEAS H1659-08 U22REX/P-SL
SEAS H1659-08 U22REX/P-SL is a 8" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 29Hz, Qts 0.29, Vas 103L, Xmax 4mm, sensitivity 90.7dB, plus 88cm³ Vd and 85 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
100W
Sensitivity
90.7dB
EBP
85
Either alignment
Vd
88cm³

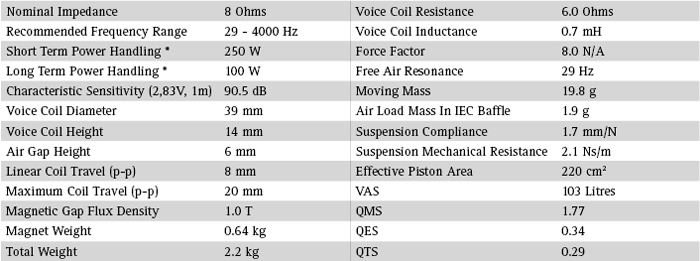

T/S Parameters
Valid
Fs29Hz
Qts0.29
Qes0.34
Qms1.8
Vas103.0L
Re6.0Ω
Le0.70mH
BL8.0Tm
Sd220cm²
Mms20g
Xmax4.0mm
SPL91dB
Power100W
Impedance8Ω
F Low29Hz
F High4000Hz
Voice Coil39mm
Flux Density1.00T
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£137.43
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

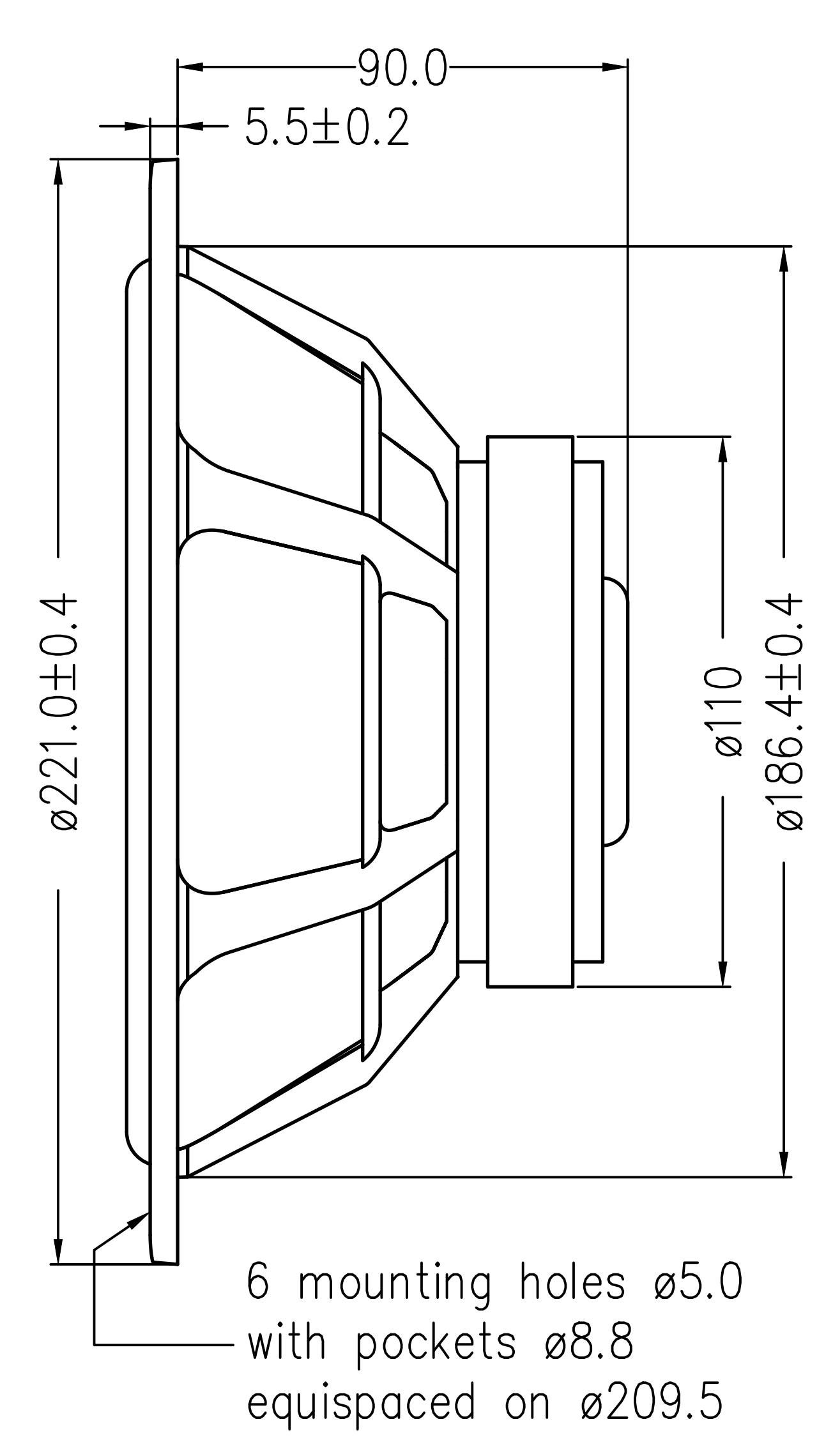

Dimensions & Physical
Weight2.2kg
