Overview
LF DriverDiscovery series
Scanspeak
Scanspeak 15W/4434G00
Scanspeak 15W/4434G00 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 43Hz, Qts 0.21, Vas 12.8L, Xmax 4.3mm, sensitivity 88.7dB, plus 34cm³ Vd and 195 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £65.95.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
88.7dB
EBP
195
Vented alignment
Vd
34cm³
T/S Parameters
Valid
Fs43Hz
Qts0.21
Qes0.22
Qms3.7
Vas12.8L
Re3.0Ω
Le0.50mH
BL5.9Tm
Sd80cm²
Mms10g
Xmax4.3mm
SPL89dB
Power60W
Impedance4Ω
Min Impedance4.1Ω
Voice Coil32mm
Pricing & availability
Price definitionsPrice movement
Best current price
£65.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
15W/4434G00
6"
Best current price
£65.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
65%
Similarity
2% more£66.95
Scanspeak
15W/8434G00
6"
Higher price
Xmax4.2mm-2%
Qts0.25+19%
BL7.3Tm+24%
Vas12.8L0%
Qes0.27+23%
33%
Similarity
340% more£289.95

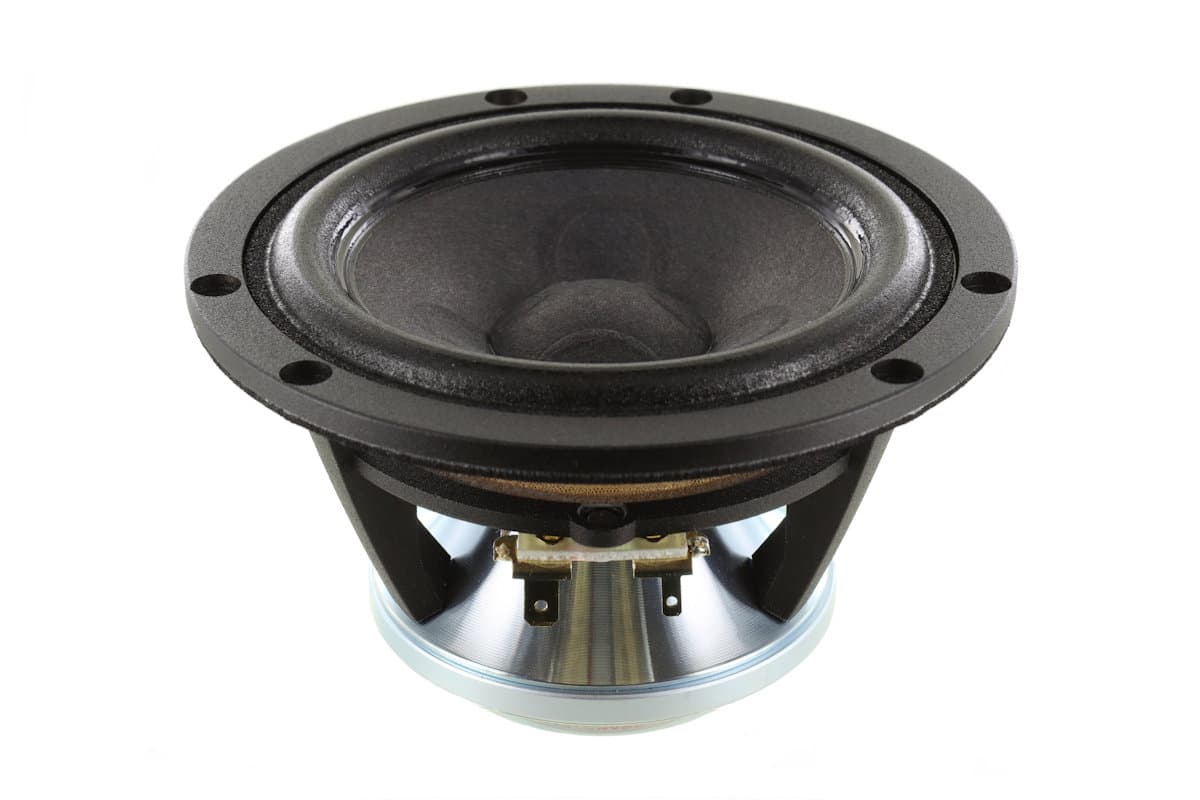

Scanspeak
12MU/4731T00
5"
Higher price
Xmax3.5mm-19%
Qts0.24+14%
BL5.1Tm-14%
Vas5.4L-58%
Qes0.26+18%
