Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespGRS 6PT-8 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
GRS
GRS 6PT-8

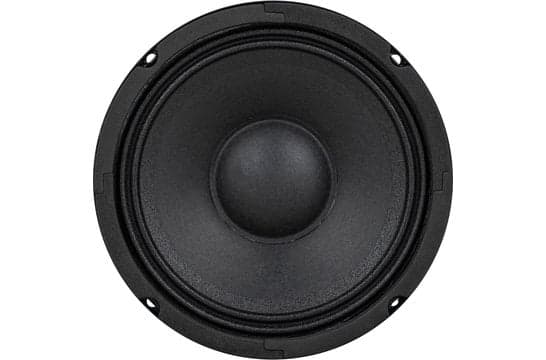

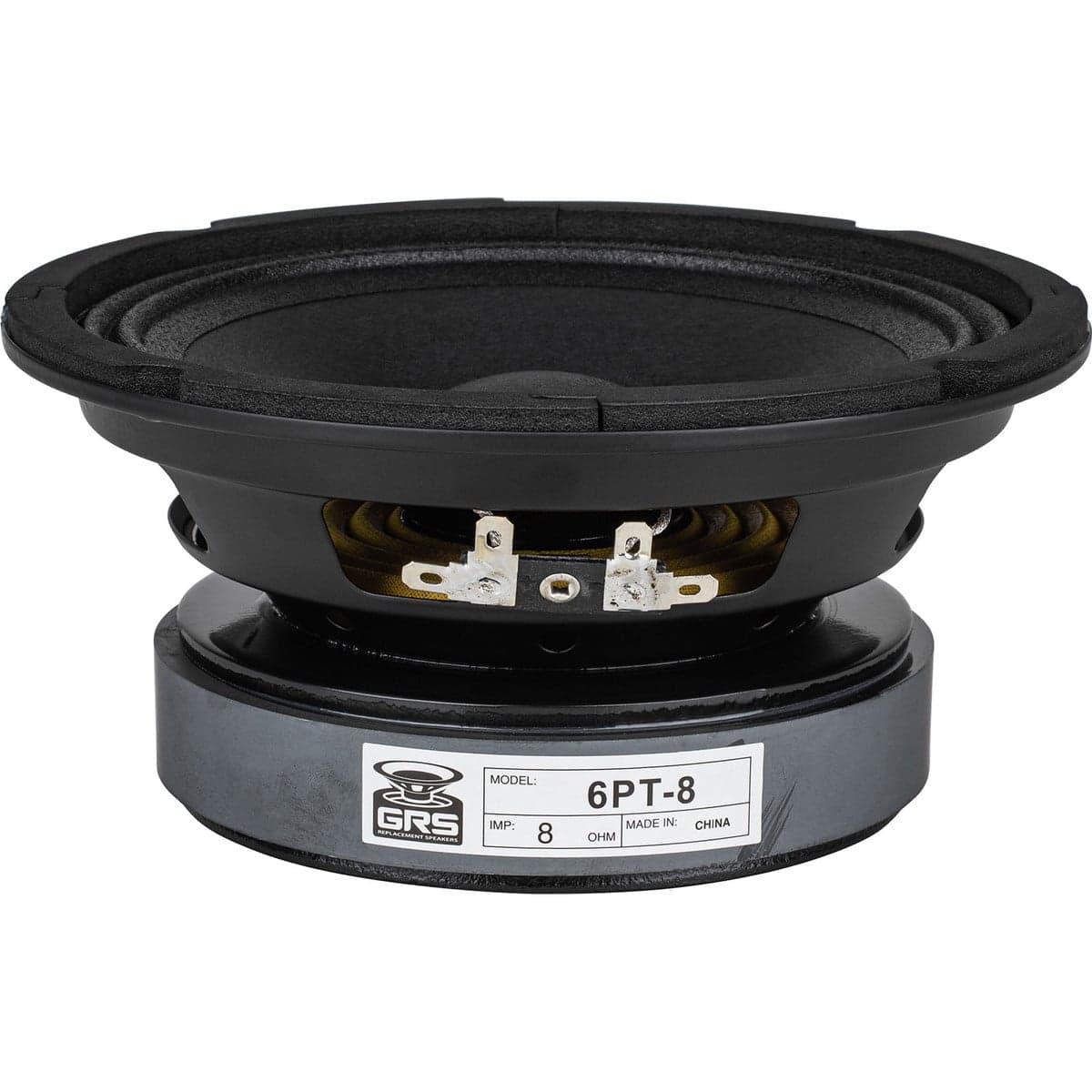

GRS 6PT-8 is a 6.5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 94Hz, Qts 0.72, Vas 0.3L, Xmax 4.2mm, sensitivity 77.2dB, plus 57cm³ Vd and 111 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
100W
Sensitivity
77.2dB
92.0dBmanufacturer; using T/S-derived value (14.8dB delta).
EBP
111
Vented alignment
Vd
57cm³
T/S Parameters
Valid
Fs94Hz
Qts0.72
Qes0.85
Qms4.7
Vas0.3L
Re7.4Ω
Le1.10mH
BL6.4Tm
Sd137cm²
Mms8g
Xmax4.2mm
SPL77dB
Power100W
Impedance8Ω
F Low55Hz
F High11000Hz
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£29.17
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter165.1mm
Overall Depth76.2mm
Cutout Diameter147.3mm
Bolt Circle Diameter156.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
GRS
6PT-8
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
Loading matches
