Overview
LF DriverHDS series
Peerless

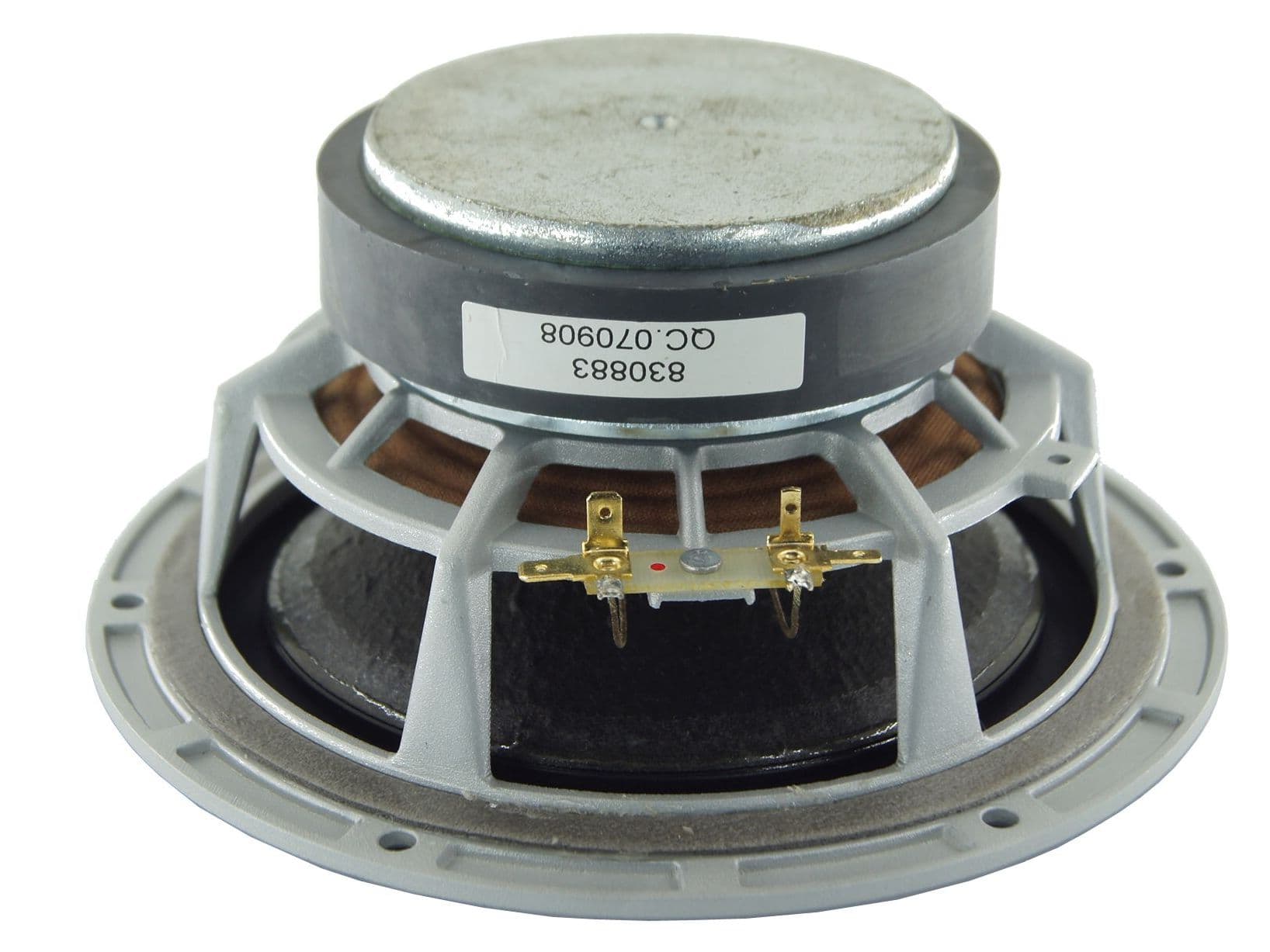

Peerless HDS-P830883
Peerless HDS-P830883 is a 6.5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 68Hz, Qts 0.67, Vas 6.8L, Xmax 7.6mm, sensitivity 85.5dB, plus 109cm³ Vd and 70 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £64.67.
Size
6.5"
Impedance
8Ω
RMS Power
30W
Sensitivity
85.5dB
87.2dBmanufacturer; using T/S-derived value (1.7dB delta).
EBP
70
Either alignment
Vd
109cm³
T/S Parameters
Valid
Fs68Hz
Qts0.67
Qes0.97
Qms2.2
Vas6.8L
Re5.9Ω
Le0.21mH
BL7.8Tm
Sd143cm²
Mms24g
Xmax7.6mm
SPL86dB
Power30W
Impedance8Ω
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£51.51
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
bluearan
£64.67
inc VAT·12 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Peerless
HDS-P830883
6.5"
Best current price
£64.67
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
45%
Similarity
19% cheaper£52.62
Peerless
HDS-P830874
6.5"
Lower price
Xmax7.3mm-4%
Qts0.51-24%
BL8.7Tm+12%
Vas10.6L+56%
Qes0.59-39%
