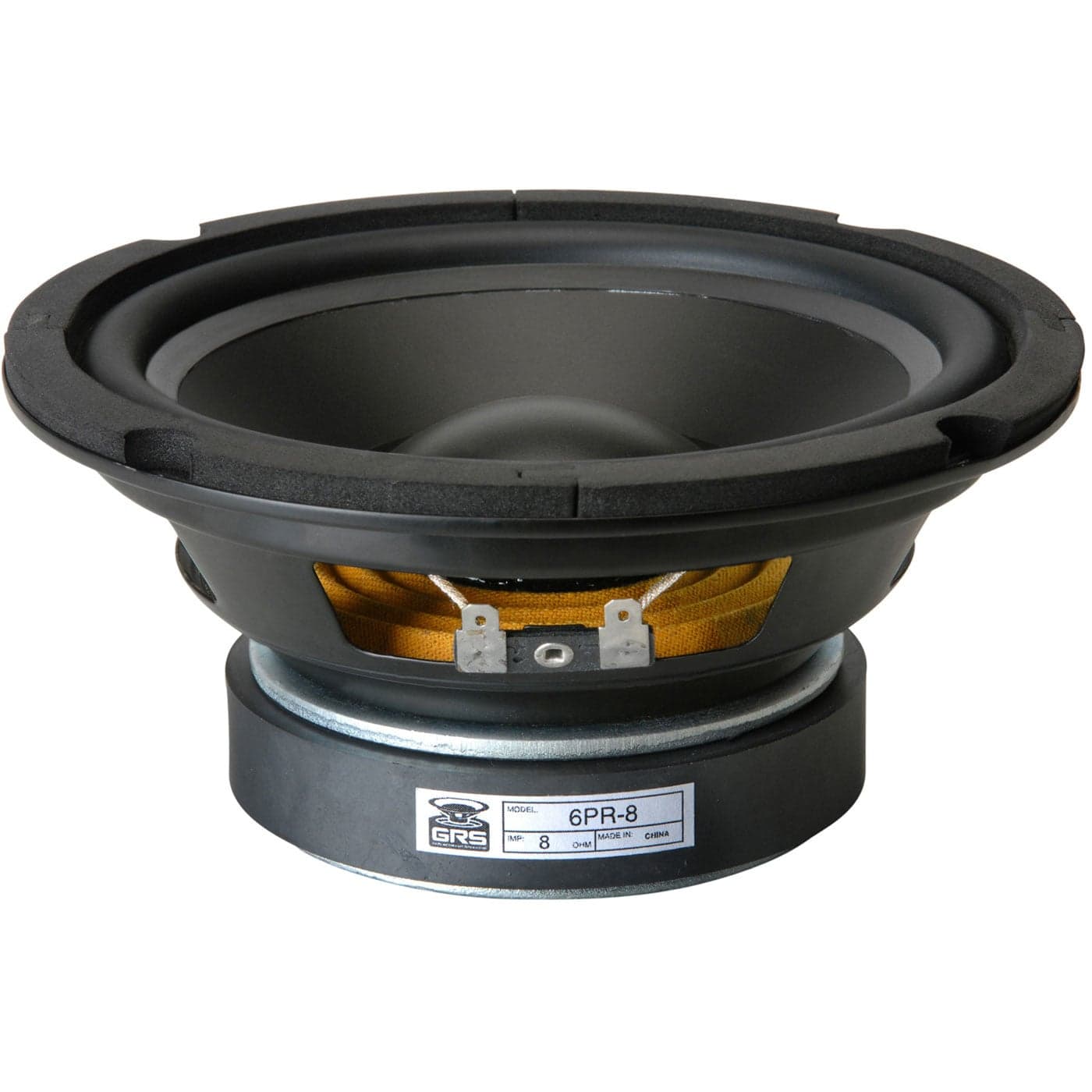

GRS6PR-8
£13.36Fs69 Hz −31%, better
Qts0.87 +18%, worse
Vas10.6 L +44%, worse
BL6.1 T·m −7%
Xmax3 mm −14%, worse
Sensitivity86.8 dB −4.2, worse
6.5-inch LF driver · FTX0617 series · 34 mm voice coil · 40 W

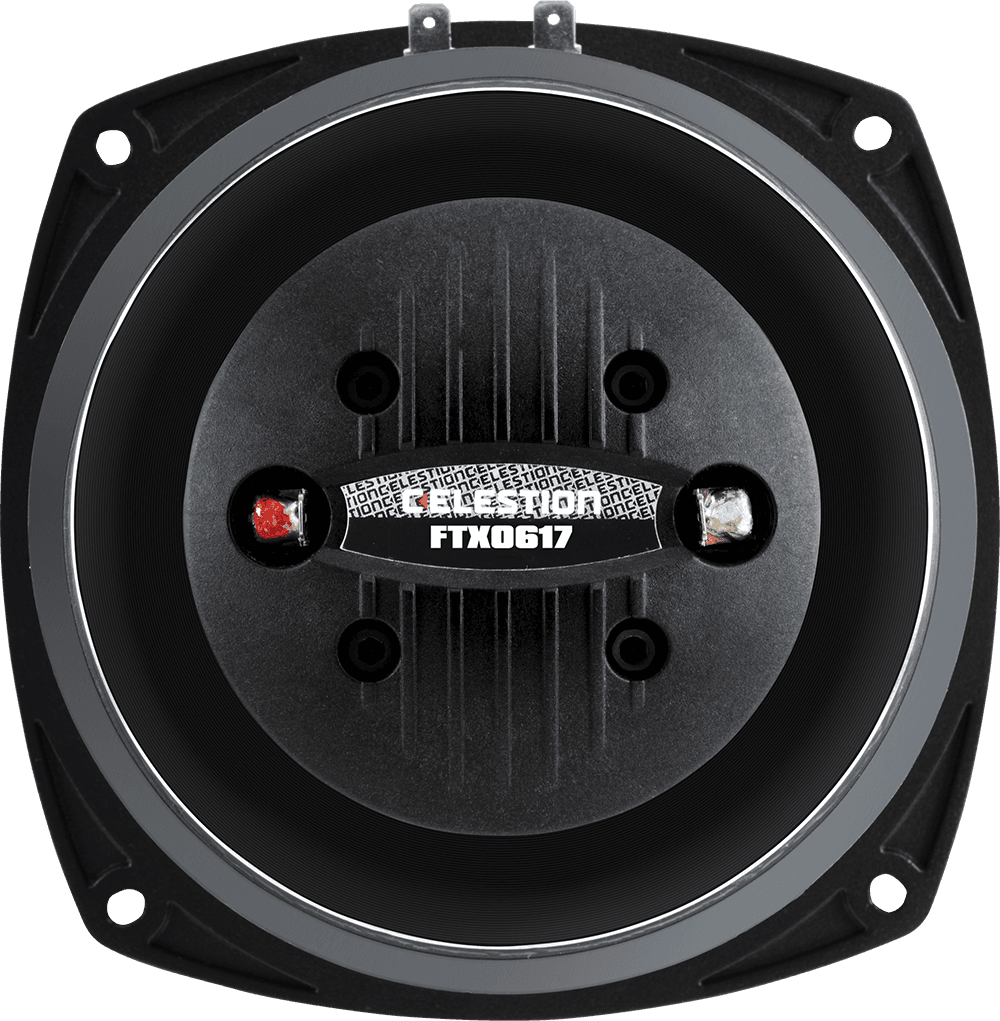

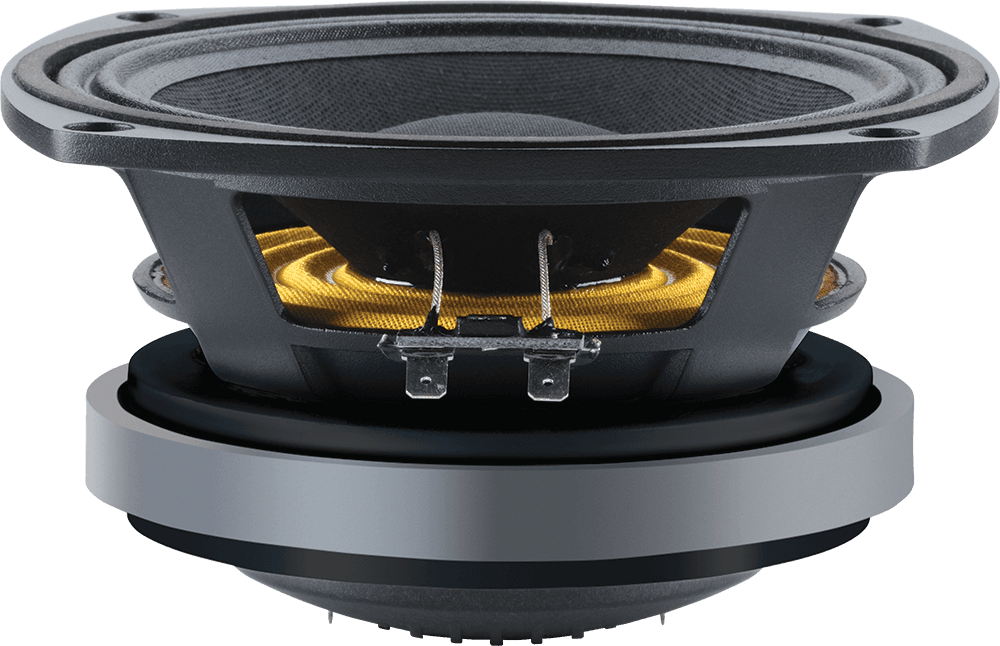

Celestion FTX0617 8Ω
8 Ω · 1500–20000 Hz
No current price
- Fs
- 100Hz
- Xmax
- 3.5mm
- SPL
- 91dB
- Pe
- 40W
- BL
- 6.6T·m
- Vd
- 54cm³
- Qts
- 0.74
- Vas
- 7L

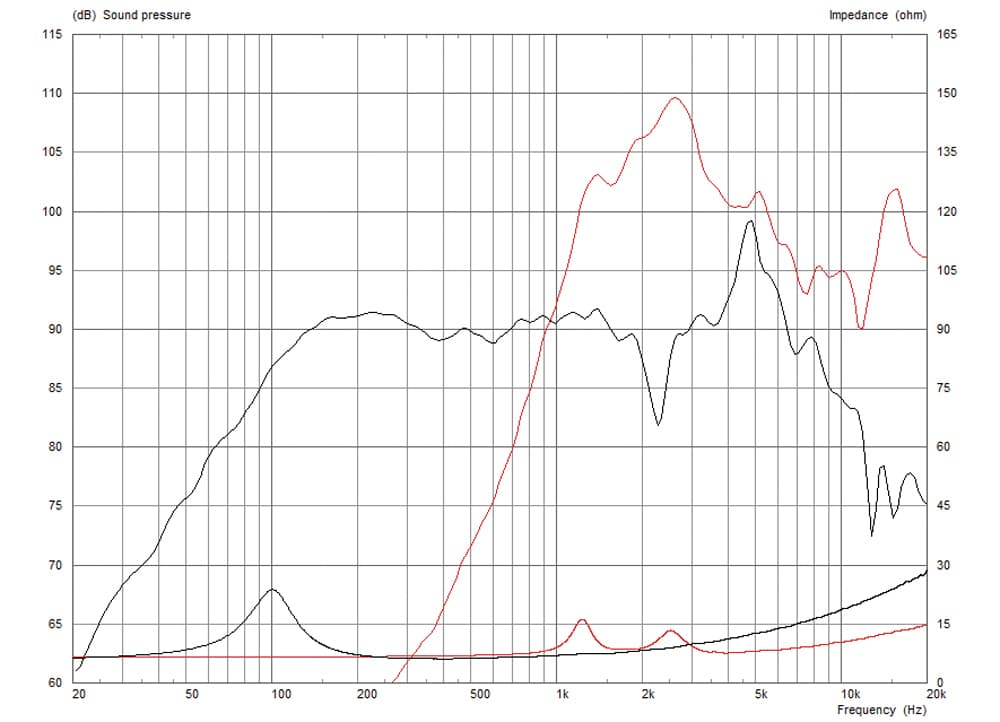

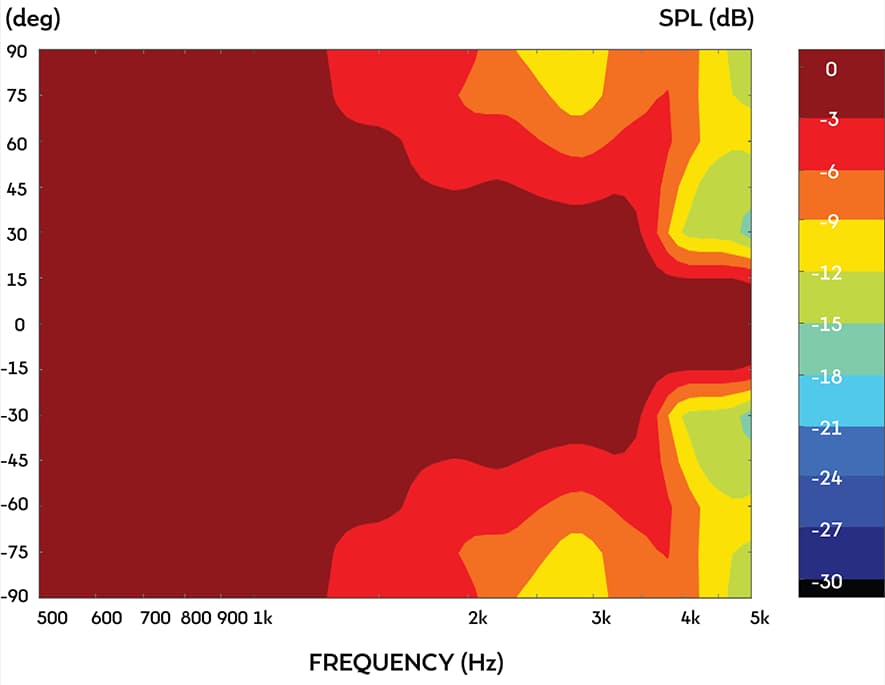

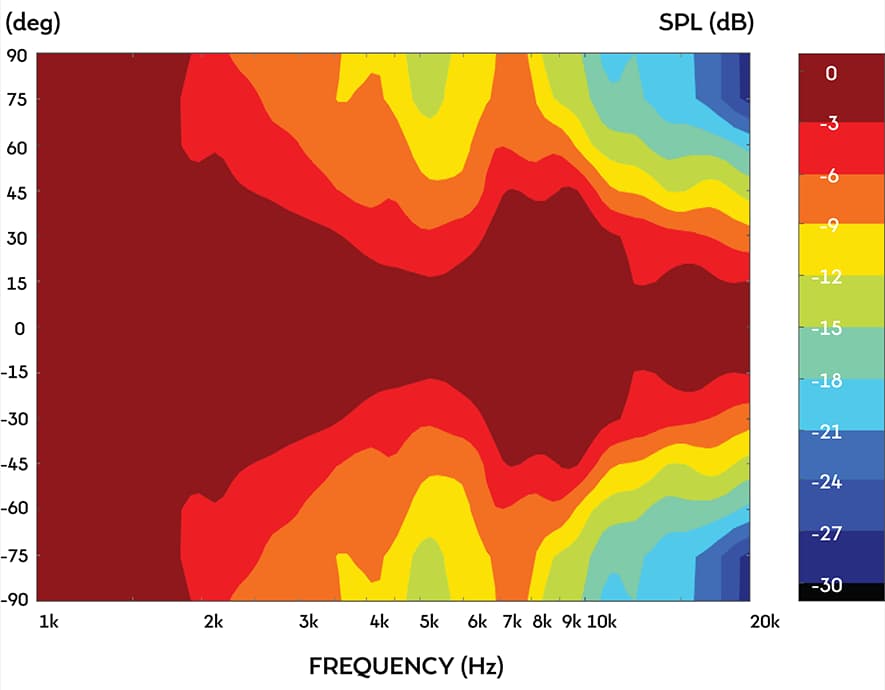

Published graphs
Celestion FTX0617 is a 6.5-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 100 Hz, Qts 0.74, Vas 7.4 L, Xmax 3.5 mm, sensitivity 91 dB, plus 54 cm³ Vd and 108 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 100Hz
- Qts
- 0.74
- Qes
- 0.93
- Qms
- 3.7
- Vas
- 7.4L
- Re
- 5.5Ω
- Le
- 0.27mH
Motor and cone
- BL
- 6.6T·m
- Sd
- 154cm²
- Mms
- 12g
- Xmax
- 3.5mm
- Vd †
- 54cm³
- Voice coil
- 34mm
Power and response
- Sensitivity †
- 91dB
- Manufacturer sensitivity
- 103dB
- Power
- 40W
- Impedance
- 8Ω
- Range
- 1500–20000Hz
- EBP †
- 108 · Leans vented
Size and mounting
- Diameter
- 189mm
- Cutout
- 150mm
- Bolt circle
- 173.5mm
- Depth
- 93mm
- Weight
- 3kg
Other published values
- Cms
- 0.22mm/N
- Rms
- 1.99kg/s
- Power Program
- 80
Sensitivity shows 91.0 dB, calculated from the T/S values. Celestion publishes 103.0 dB, 12.0 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 6.5″
- BL
- 6.6T·m
- Fs
- 100Hz
- Le
- 0.27mH
- Re
- 5.5Ω
- Sd
- 154cm²
- Cms
- 0.22mm/N
- Mms
- 12g
- Qes
- 0.93
- Qms
- 3.7
- Qts
- 0.74
- Rms
- 1.99kg/s
- SPL
- 91dB
- Vas
- 7.4L
- Xmax
- 3.5mm
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 103dB
- Low limit
- 1500Hz
- Power Program
- 80
- Calculated sensitivity †
- 91dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 103dB
- Voice coil
- 34mm
- Weight
- 3kg
- Diameter
- 189mm
- Depth
- 93mm
- Cutout
- 150mm
- Bolt circle
- 173.5mm
02
Compare
Same-size drivers, compared with the FTX0617. Clear differences are green when better and red when worse.
This driverFTX0617
Best price
–
Fs
100 Hz
Qts
0.74
Vas
7.4 L
BL
6.6 T·m
Xmax
3.5 mm
Sensitivity
91 dB
Power
40 W
GRS6PT-8
£15.70Fs94 Hz −6%
Qts0.72 –
Vas9.5 L +29%, worse
BL6.4 T·m –
Xmax4.2 mm +20%, better
Sensitivity91.7 dB +0.7
VisatonBG 17
£18.25Fs120 Hz +20%, worse
Qts0.74 –
Vas8.2 L +11%, worse
BL5.7 T·m −14%, worse
Xmax1.5 mm −57%, worse
Sensitivity93.6 dB +2.6, better
VisatonW 170
£19.63Fs57 Hz −43%, better
Qts0.69 −7%
Vas24 L +226%, worse
BL5 T·m −24%, worse
Xmax2 mm −43%, worse
Sensitivity89 dB −2, worse
GRS6LPSW-4
£20.89Fs48 Hz −52%, better
Qts1.07 +45%, worse
Vas7.6 L +3%
BL5.4 T·m −18%, worse
Xmax4 mm +14%, better
Sensitivity80 dB −11, worse
PRV Audio6MR250B-4
£26.11Fs143 Hz +43%, worse
Qts0.82 +11%, worse
Vas4 L −46%, better
BL5.8 T·m −12%, worse
Xmax3.3 mm −7%
Sensitivity93.4 dB +2.4, better
CelestionTRUVOX 0615
£32.65Fs90 Hz −10%, better
Qts0.47 −36%, better
Vas7.4 L –
BL8.0 T·m +22%, better
Xmax3.5 mm –
Sensitivity92.2 dB +1.2
Dayton AudioMB620-8
£33.65Fs104 Hz +4%
Qts0.59 −20%, better
Vas6.8 L −8%
BL6.7 T·m –
Xmax2 mm −43%, worse
Sensitivity92.5 dB +1.5
Sica6 D 1.5 CS
£37.26Fs109 Hz +9%
Qts0.63 −15%, better
Vas4.4 L −40%, better
BL7.4 T·m +12%, better
Xmax1.5 mm −57%, worse
Sensitivity90.6 dB –
CIARECME160
£40.47Fs110 Hz +10%, worse
Qts0.40 −46%, better
Vas4.5 L −39%, better
BL7.6 T·m +15%, better
Xmax3.5 mm –
Sensitivity93.3 dB +2.3, better
Dayton AudioLW150-4
£41.13Fs63 Hz −37%, better
Qts0.64 −13%, better
Vas3.5 L −53%, better
BL6.5 T·m –
Xmax4 mm +14%, better
Sensitivity82.8 dB −8.2, worse
PeerlessHDS-P830883
£42.08Fs68 Hz −32%, better
Qts0.67 −9%
Vas6.8 L −8%
BL7.8 T·m +18%, better
Xmax7.6 mm +118%, better
Sensitivity85.5 dB −5.5, worse
PRV Audio6FR200
£47.27Fs112 Hz +12%, worse
Qts1.29 +75%, worse
Vas6.9 L −6%
BL5.2 T·m −22%, worse
Xmax3.5 mm –
Sensitivity90.4 dB −0.6
PRV Audio6MR400-4
£48.52Fs144 Hz +44%, worse
Qts0.60 −19%, better
Vas4.4 L −40%, better
BL6.4 T·m −3%
Xmax3.3 mm −7%
Sensitivity95.2 dB +4.2, better
EminenceALPHA-6A
£59.00Fs103 Hz +3%
Qts0.54 −27%, better
Vas5.8 L −21%, better
BL8 T·m +21%, better
Xmax3.5 mm –
Sensitivity92.3 dB +1.3
VisatonW 165 A
£72.80Fs60 Hz −40%, better
Qts0.63 −15%, better
Vas7.8 L +6%
BL5.0 T·m −24%, worse
Xmax4.7 mm +33%, better
Sensitivity85.6 dB −5.4, worse

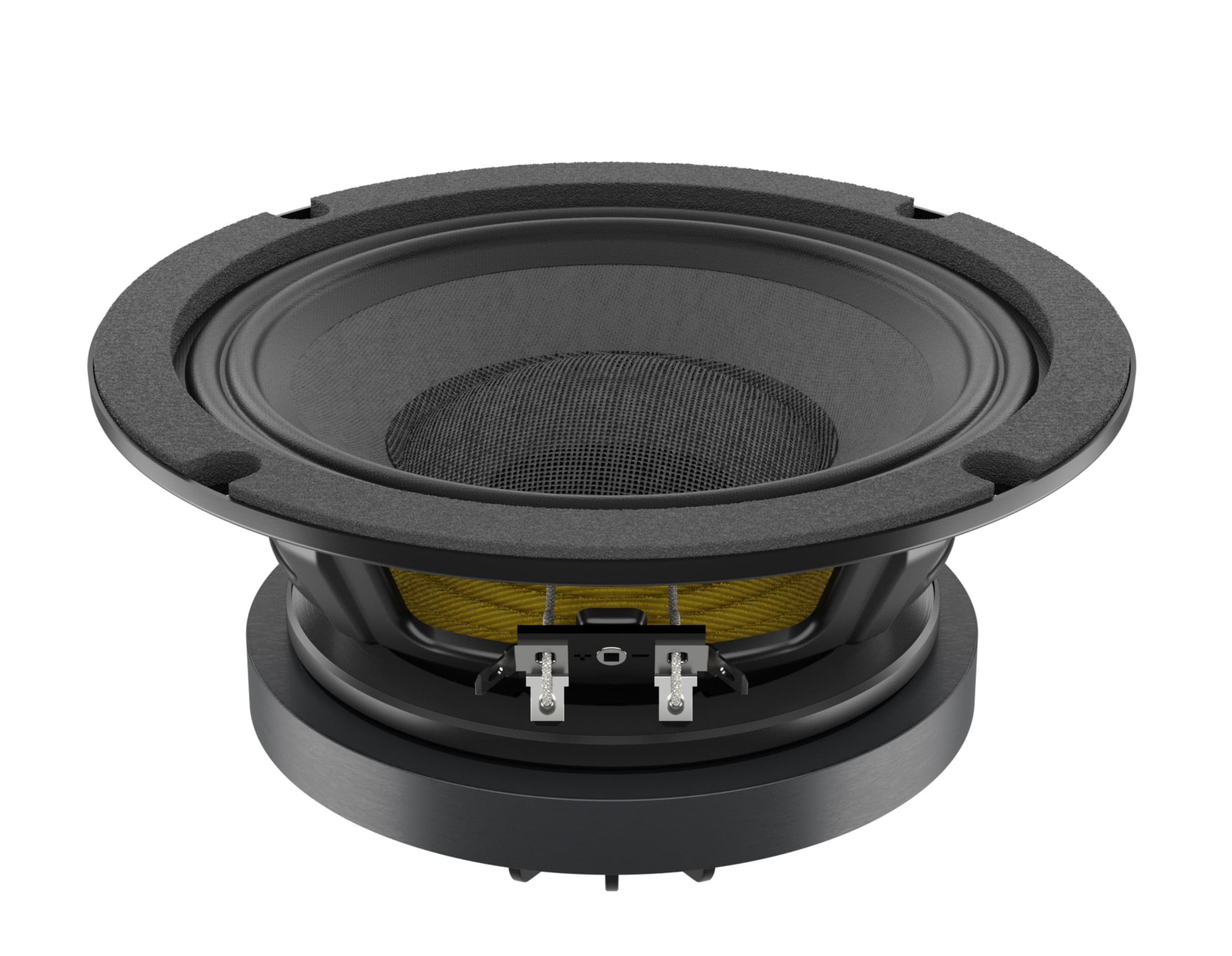

LavoceCSF061.70K
£86.22Fs97 Hz −3%
Qts0.69 −7%
Vas6.5 L −12%, better
BL6.9 T·m +5%
Xmax3.9 mm +11%, better
Sensitivity90.5 dB −0.5
RS SpeakersMW 140.38 FIBONACCI
£118.90Fs56 Hz −44%, better
Qts0.44 −40%, better
Vas6.9 L −6%
BL6.2 T·m −7%
Xmax4 mm +14%, better
Sensitivity85.9 dB −5.1, worse
Scanspeak18M/8631T00
£192.54Fs65 Hz −35%, better
Qts0.71 −4%
Vas14 L +90%, worse
BL6.5 T·m –
Xmax3 mm −14%, worse
Sensitivity88.7 dB −2.3, worse
PRV Audio6MR400CF-4
No current priceFs131 Hz +31%, worse
Qts0.76 –
Vas4.1 L −44%, better
BL6.3 T·m −4%
Xmax3.5 mm –
Sensitivity92.8 dB +1.8
No photo

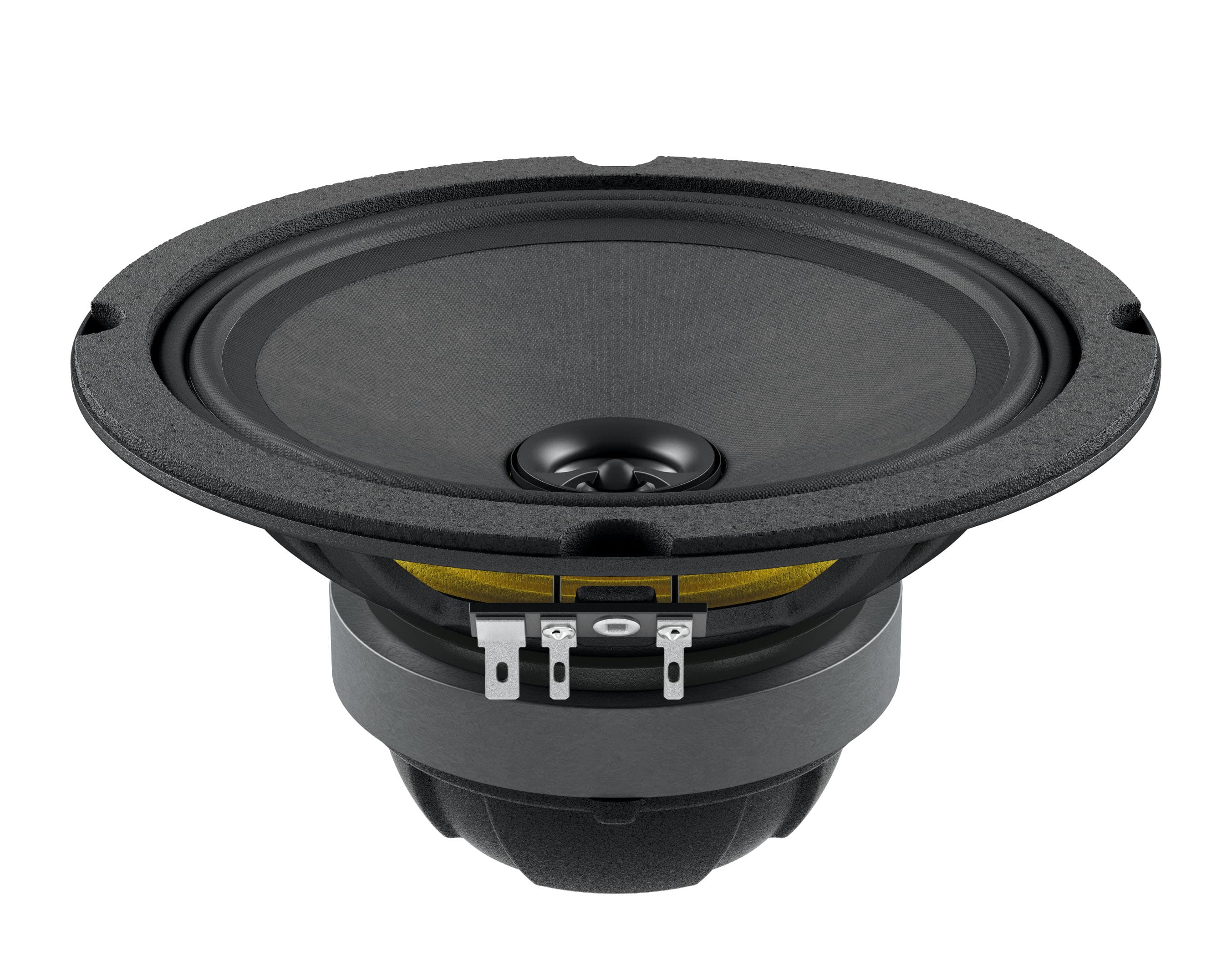

LavoceCSF061.21
