Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespGRS 6LPSW-4 4Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
GRS
GRS 6LPSW-4

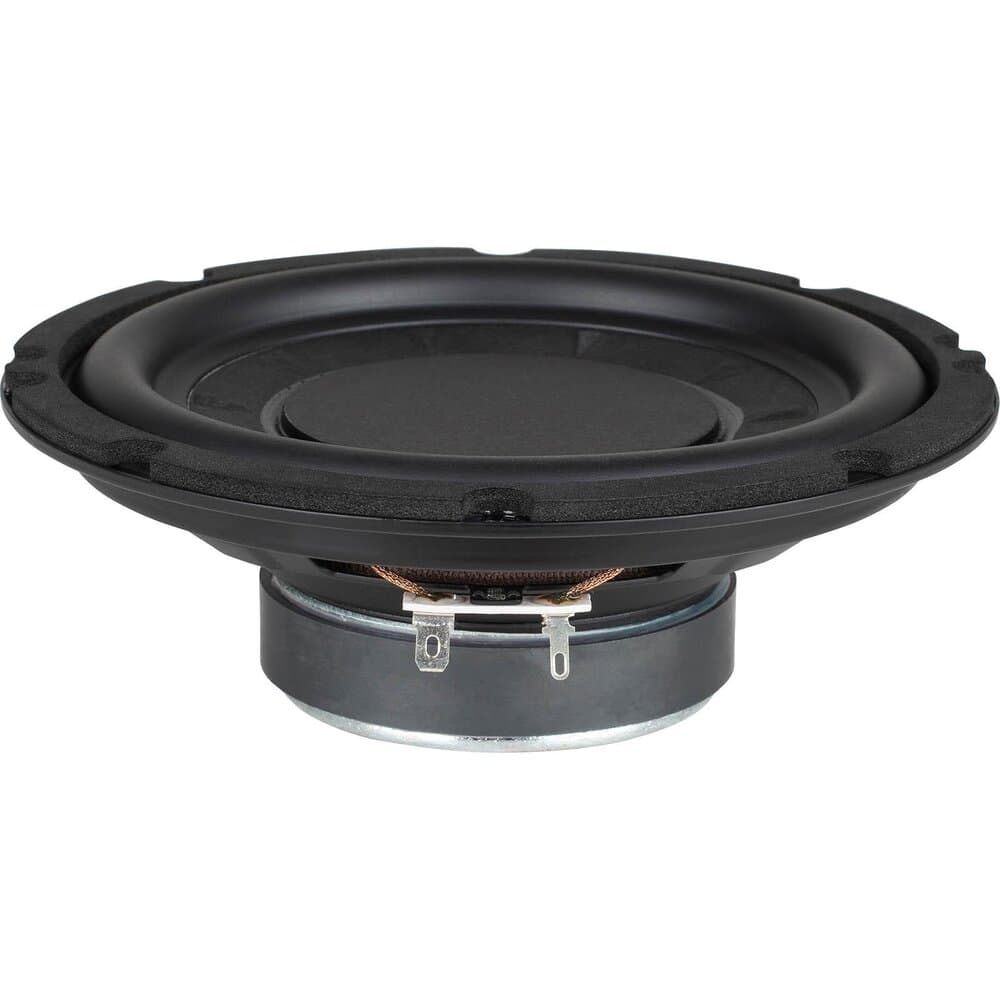

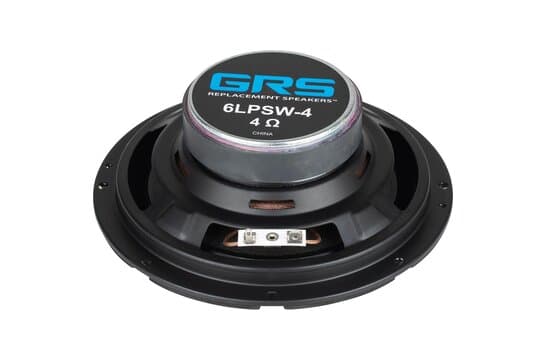

GRS 6LPSW-4 is a 6.5" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 48Hz, Qts 1.07, Vas 7.6L, Xmax 4mm, sensitivity 80dB, plus 42cm³ Vd and 36 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
30W
Sensitivity
80.0dB
83.2dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
36
Sealed alignment
Vd
42cm³
T/S Parameters
Valid
Fs48Hz
Qts1.07
Qes1.35
Qms5.3
Vas7.6L
Re3.7Ω
Le1.00mH
BL5.4Tm
Sd104cm²
Mms36g
Xmax4.0mm
SPL80dB
Power30W
Impedance4Ω
F Low47Hz
F High1500Hz
Voice Coil38mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£21.44
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter165.2mm
Overall Depth64.0mm
Cutout Diameter144.5mm
