Visaton W 165 A 2Ω

LF Driver

WatchWatch price SimSimulate

Media

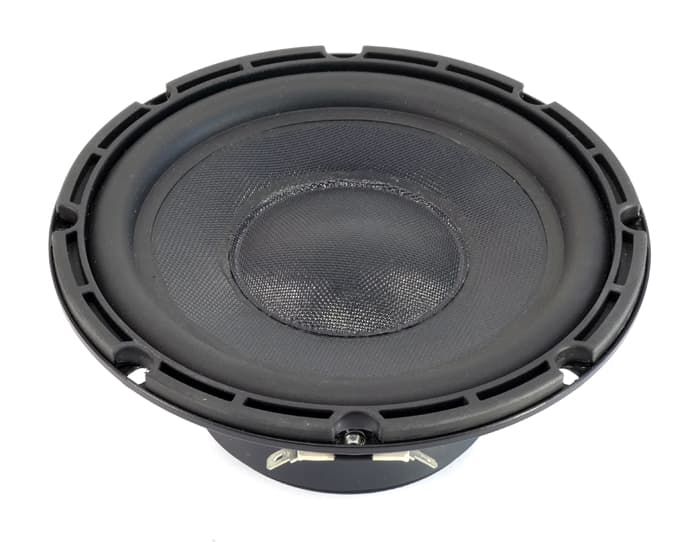

Visaton W 165 A 6.5 inch 2 ohm loudspeaker driver view 1

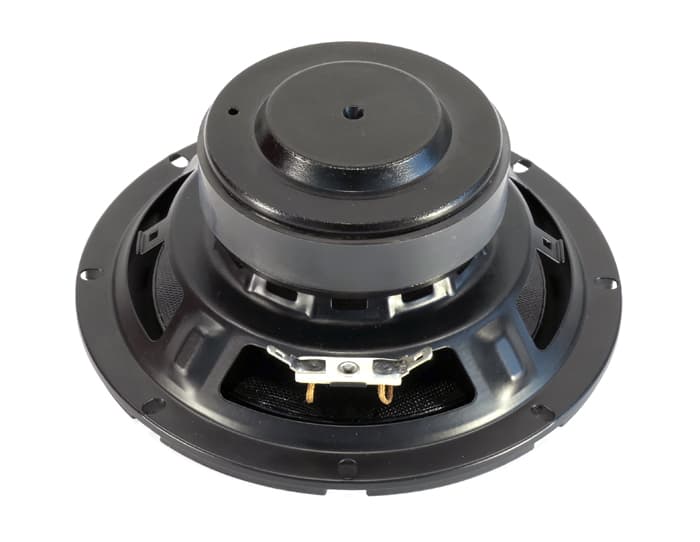

Visaton W 165 A 6.5 inch 2 ohm loudspeaker driver view 2

Visaton W 165 A 6.5 inch 2 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF DriverW series

Visaton W 165 A

2 ratings at 1 shop

Visaton W 165 A is a 6.5" 2 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 60Hz, Qts 0.63, Vas 7.8L, Xmax 10.3mm, sensitivity 85.6dB, plus 140cm³ Vd and 81 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £74.82.

Size

6.5"

Impedance

2Ω

RMS Power

60W

Sensitivity

85.6dB

84.0dBmanufacturer; using T/S-derived value (1.6dB delta).

EBP

81

Either alignment

V_d

140cm³

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves

frequency response240 ptsp1medium

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 47b5bc94c3bd…Medium confidence542 selected pixels of 1,591
Manufacturer datasheet, page 1
impedance
Impedance response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 47b5bc94c3bd…Medium confidence646 selected pixels of 646
Manufacturer datasheet, page 1

T/S Parameters

Valid

Canonical

Fs60Hz

Qts0.63

Qes0.74

Qms4.4

Vas7.8L

Re2.2Ω

Le0.56mH

BL5.0Tm

Sd136cm²

Mms22g

Xmax10.3mm

SPL86dB

Power60W

Impedance2Ω

F High5000Hz

Voice Coil31mm

Flux Density1.06T

What this validation status means

Pricing & availability

Price definitions

Price movement

Other offers

1 vendor

Updated 28 Sept 2026· 2Ω

Source: ex VAT · 20%

Best current price

Updated 28 Sept 2026

SoundImports

£74.82

Avg £81.18

inc VAT·5 in stock

Reviews

How ratings work

Rated 5.0 out of 5from 2 ratings at 1 shop

SoundImports
Rated 5.0 out of 5 · 2 ratings · Checked 28 Sep 2026
Read reviews on SoundImports

Each shop collects its own ratings. Bits shows them as published and doesn't verify them.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight1.3kg

Diameter165.0mm

Cutout Diameter144.0mm
