LF Driver6CXN series
B&C

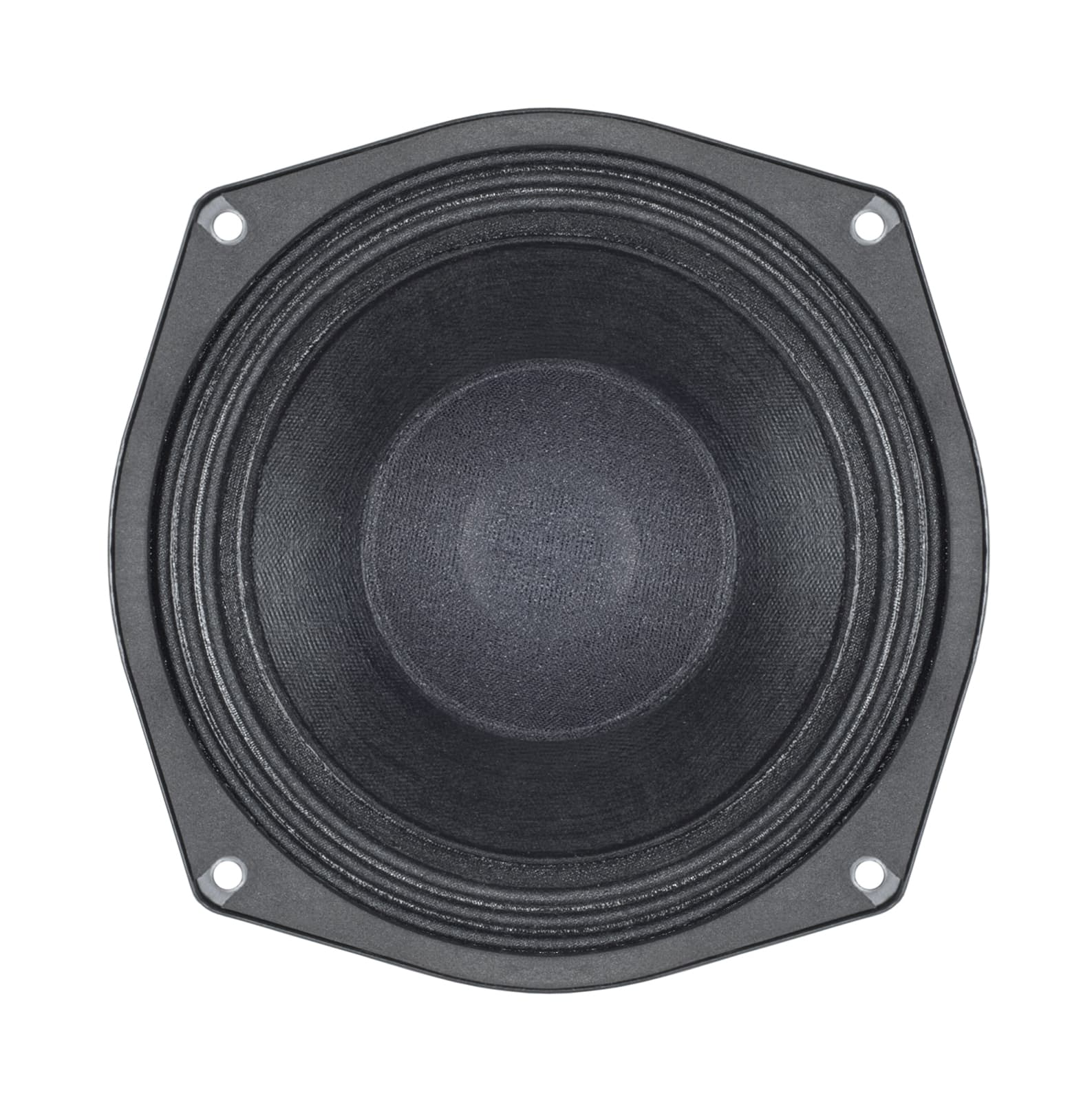

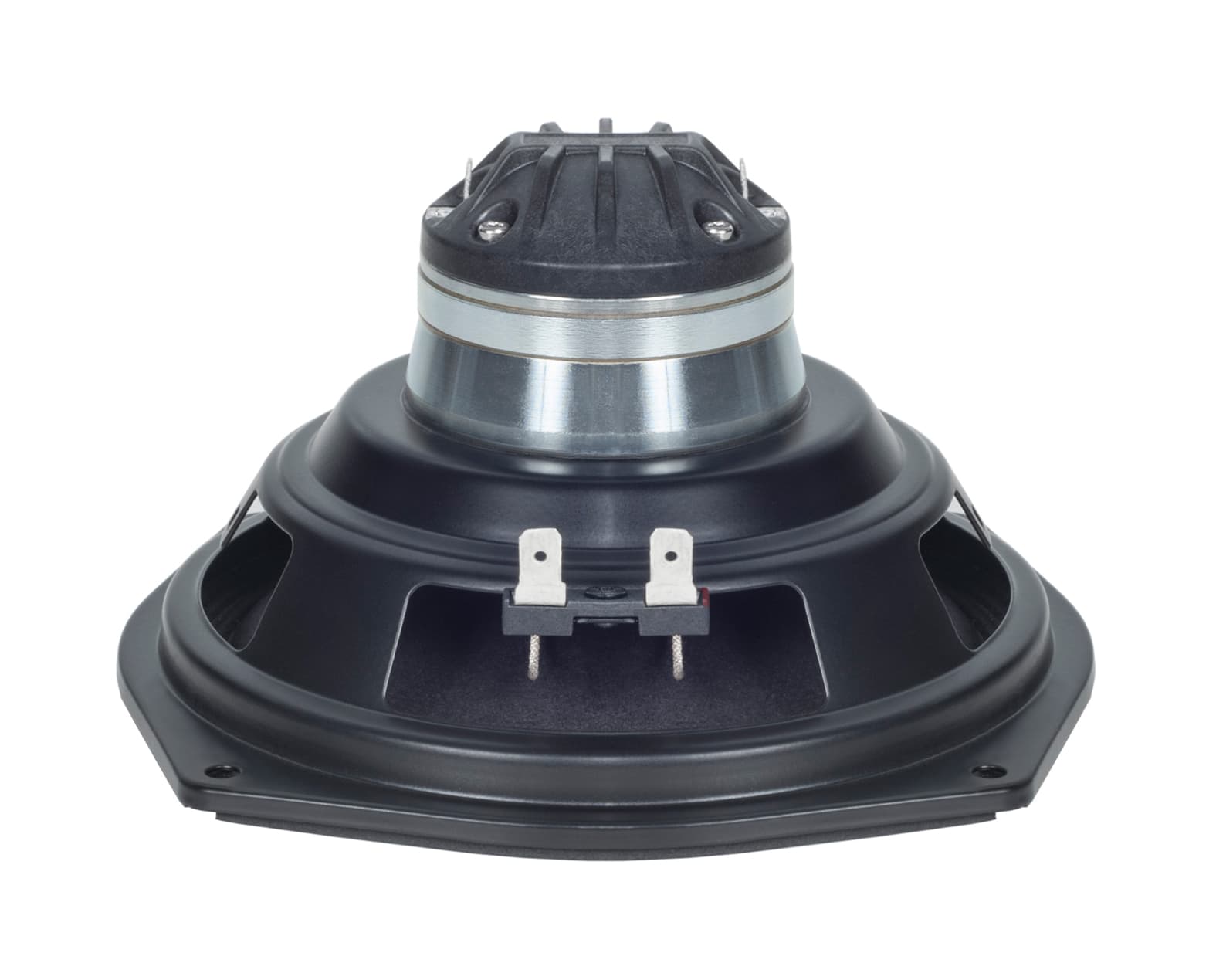

B&C 6CXN36
B&C 6CXN36 is a 6.5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 90Hz, Qts 0.95, Vas 7.5L, Xmax 5mm, sensitivity 88.7dB, plus 66cm³ Vd and 77 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £116.15.
Size
6.5"
Impedance
8Ω
RMS Power
100W
Sensitivity
88.7dB
90.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
77
Either alignment
Vd
66cm³
Frequency response

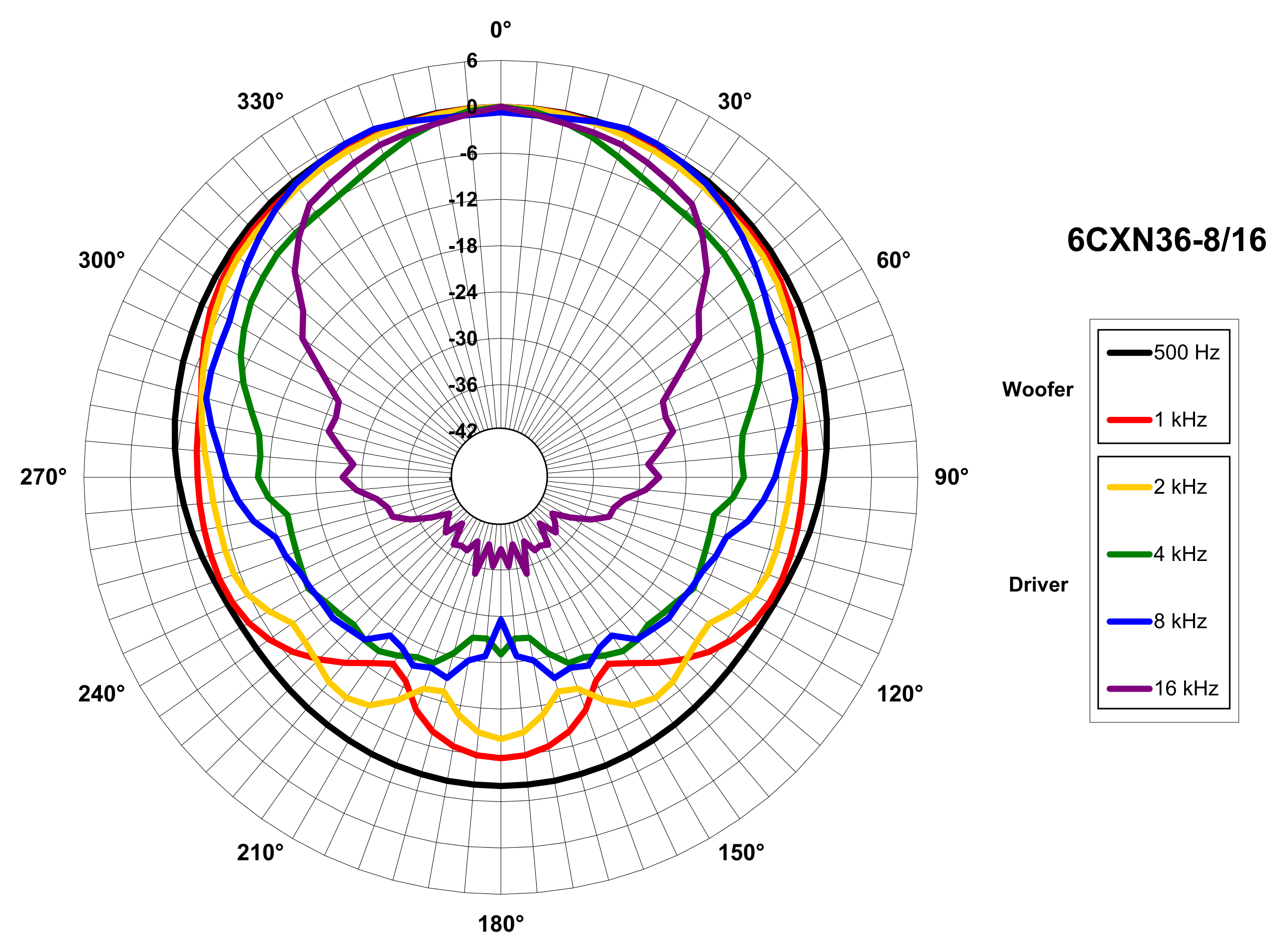

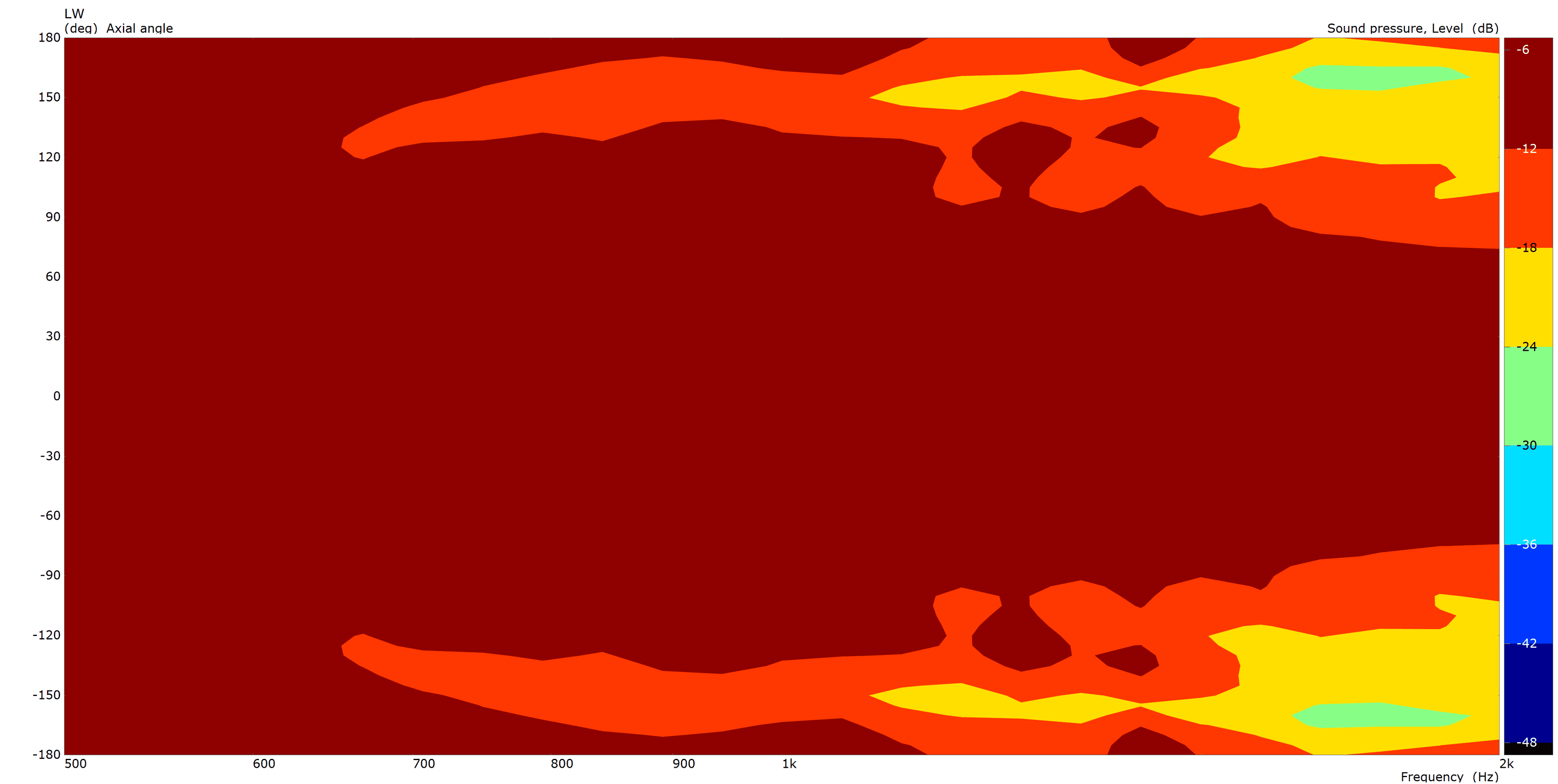

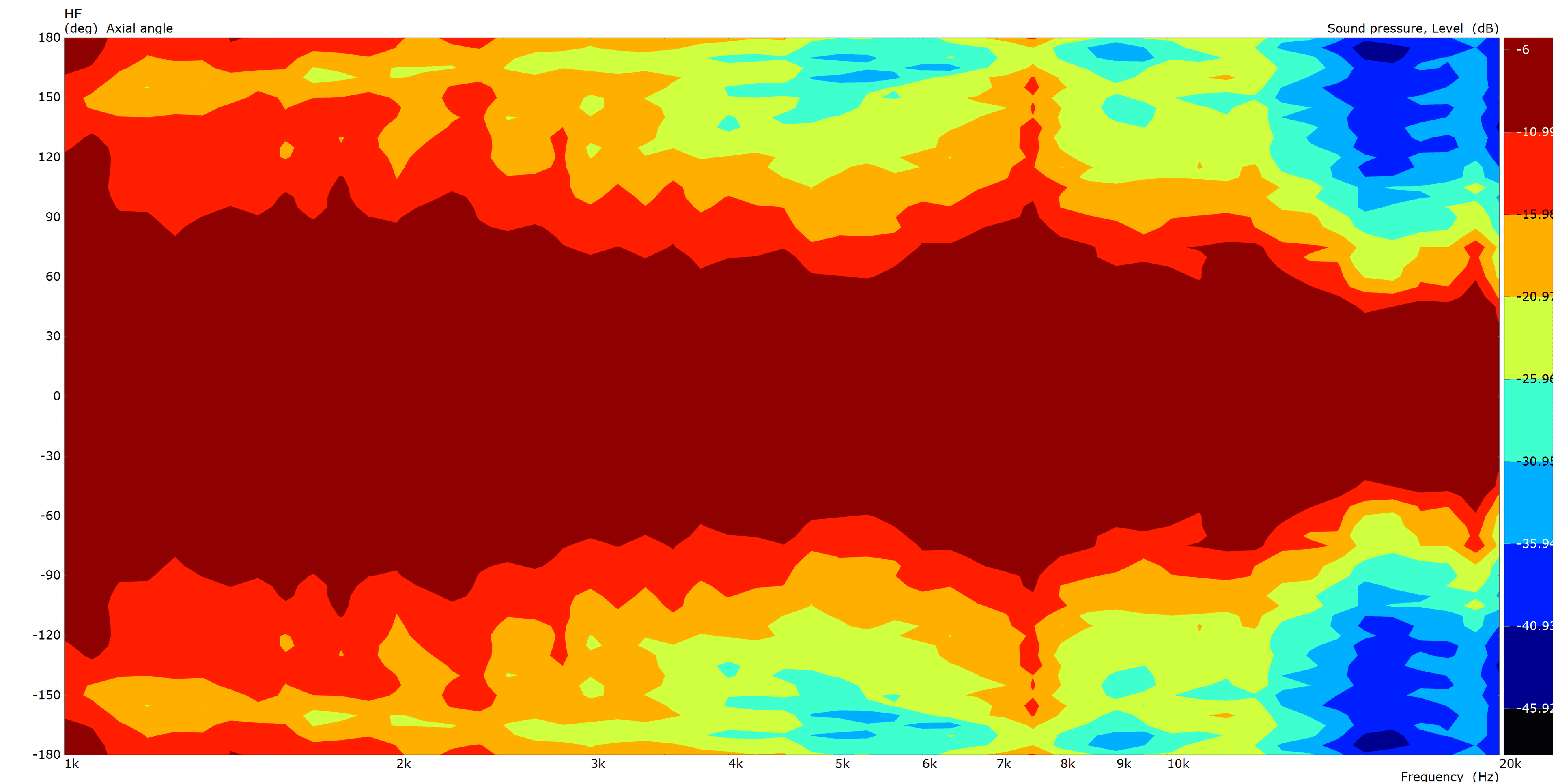

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs90Hz
Qts0.95
Qes1.17
Qms5.0
Vas7.5L
Re5.8Ω
Le0.94mH
BL5.3Tm
Sd132cm²
Mms10g
Xmax5.0mm
SPL89dB
Power100W
Power Nominal100W
Impedance8Ω
Min Impedance6.8Ω
Voice Coil34mm
Flux Density0.74T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Other offers
1 vendorjpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£116.15
inc VAT
In stock
Best current price
Updated 7 Aug 2026
jpleisure
£116.15
Avg £116.15£0.00 vs avg (+0.0%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs90 Hz
Qts0.95
Qes1.17
Qms5.0
Vas7.5 L
Re5.8 Ω
Le0.94 mH
BL5.3 Tm
Sd132 cm²
Mms10 g
Xmax5.0 mm
SPL89 dB
Power100 W
Power Nominal100 W
Impedance8 Ω
Min Impedance6.8 Ω
Voice Coil34 mm
Flux Density0.74 T
HFSpecifications HF unit
Le0.14 mH
SPL100 dB
Power25 W
Power Nominal25 W
Impedance16 Ω
Min Impedance10.2 Ω
Xover2000 Hz
Voice Coil36 mm
Flux Density1.65 T
Additional Manufacturer Specs
Bl5.34 Tm
Fs90 Hz
Le0.94 mH
Re5.8 Ω
Sd132 cm² (20.46 in²)
Ebp77 Hz
Mms10.2 g
Qes1.17
Qms5
Qts0.95
Vas7.5 dm³ (0.26 ft³)
η00.45 %
Xvar5 mm
Winding Depth11 mm (0.43 in)
Former MaterialGlass Fibre
Nominal Diameter165 mm (6.5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.24 in)
Woofer Cone TreatmentWP Waterproof Front Side
