LF Driver
PRV Audio
PRV Audio 6MB200
PRV Audio 6MB200 is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 123Hz, Qts 1.13, Vas 4.1L, Xmax 4.8mm, sensitivity 90.1dB, plus 74cm³ Vd and 103 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
90.1dB
93.5dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
103
Vented alignment
Vd
74cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs123Hz
Qts1.13
Qes1.20
Qms20.8
Vas4.1L
Re6.7Ω
Le0.25mH
BL7.0Tm
Sd154cm²
Mms12g
Xmax4.8mm
SPL90dB
Power100W
Impedance8Ω
F Low125Hz
F High6500Hz
Xover125Hz
Voice Coil38mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter166.0mm
Overall Depth74.0mm
Cutout Diameter143.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
PRV Audio
6MB200
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
75%
Similarity
PRV Audio
6MB200-4
6"
Xmax4.8mm0%
Qts0.97-14%
BL5.8Tm-18%
Vas4L-4%
Qes1.02-15%
40%
Similarity
£111.20

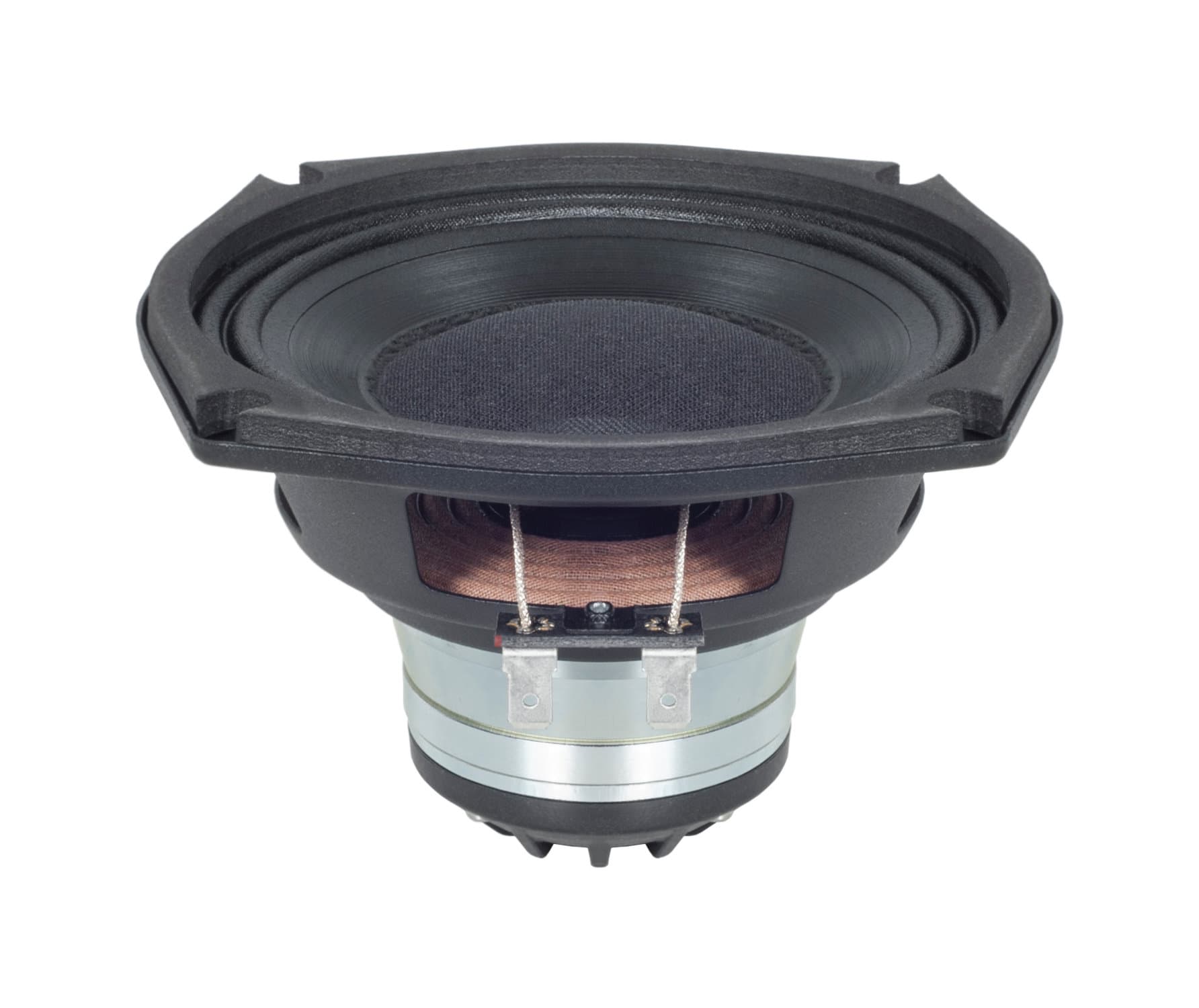

B&C
5CXN36
5"
Xmax5.5mm+15%
Qts0.9-20%
BL5.4Tm-23%
Vas4.4L+7%
Qes0.97-19%
