LF Driver5CXN series
B&C
B&C 5CXN36
B&C 5CXN36 is a 5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 95Hz, Qts 0.90, Vas 4.4L, Xmax 5.5mm, sensitivity 87.9dB, plus 52cm³ Vd and 98 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £111.20.
Size
5"
Impedance
8Ω
RMS Power
100W
Sensitivity
87.9dB
89.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
98
Either alignment
Vd
52cm³

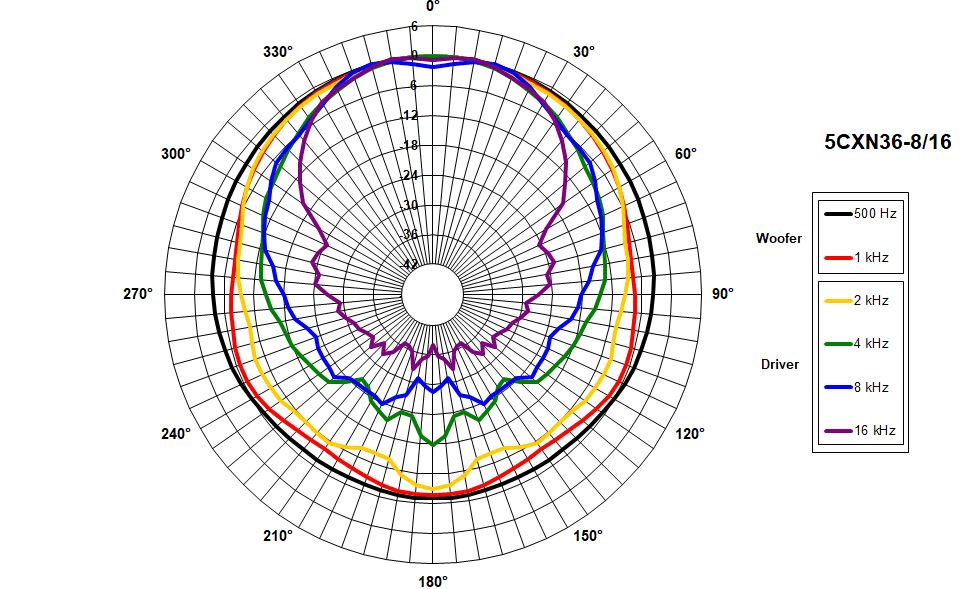

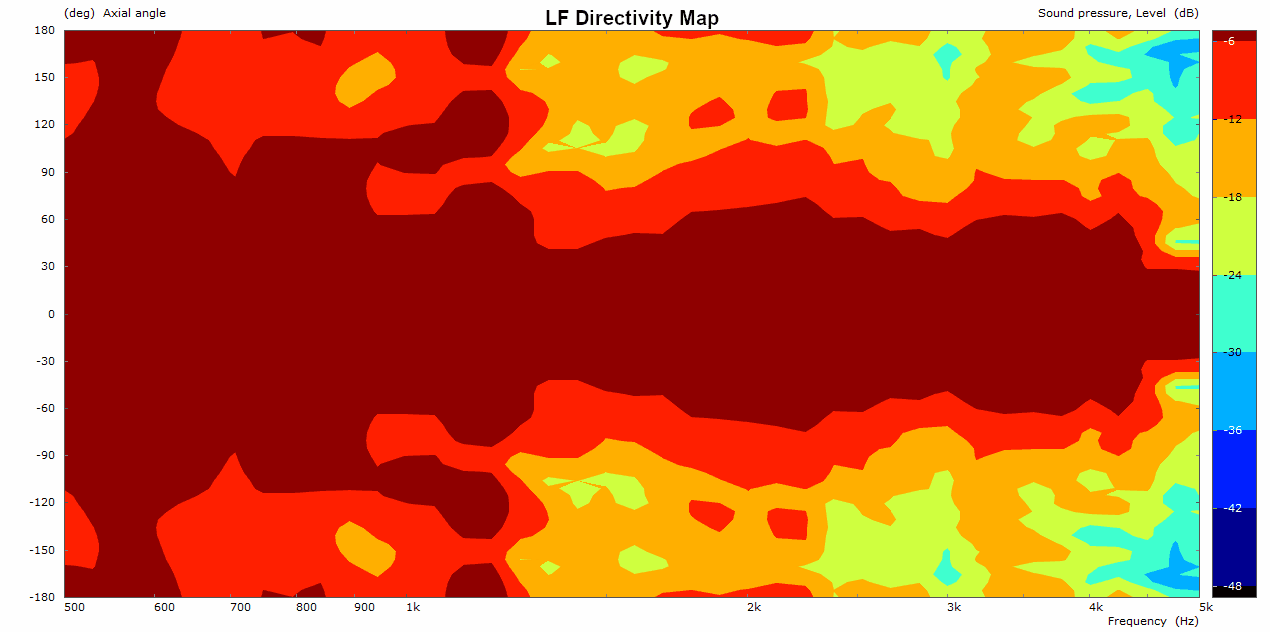

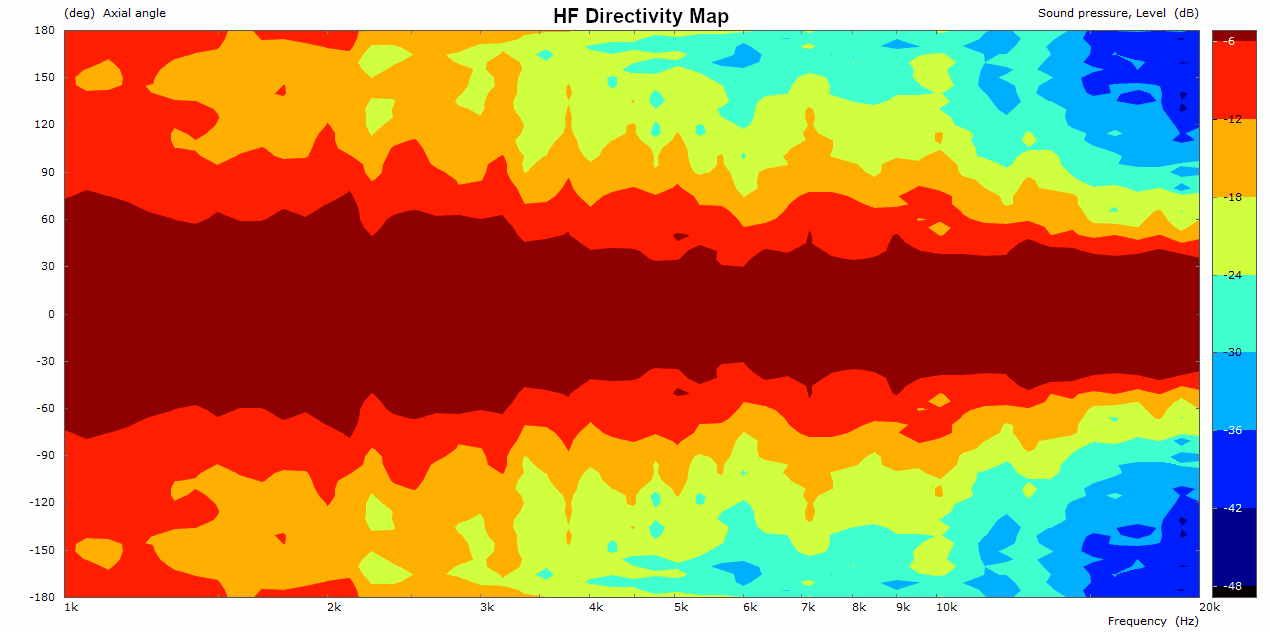

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs95Hz
Qts0.90
Qes0.97
Qms13.5
Vas4.4L
Re5.8Ω
Le0.89mH
BL5.4Tm
Sd95cm²
Mms8g
Xmax5.5mm
SPL88dB
Power100W
Power Nominal100W
Impedance8Ω
Min Impedance6.5Ω
Voice Coil34mm
Flux Density0.74T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£111.20
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs95 Hz
Qts0.90
Qes0.97
Qms13.5
Vas4.4 L
Re5.8 Ω
Le0.89 mH
BL5.4 Tm
Sd95 cm²
Mms8 g
Xmax5.5 mm
SPL88 dB
Power100 W
Power Nominal100 W
Impedance8 Ω
Min Impedance6.5 Ω
Voice Coil34 mm
Flux Density0.74 T
HFSpecifications HF unit
Le0.14 mH
SPL101 dB
Power25 W
Power Nominal25 W
Impedance16 Ω
Min Impedance10.0 Ω
Xover2000 Hz
Voice Coil36 mm
Flux Density1.65 T
Additional Manufacturer Specs
Bl5.42 Tm
Fs95 Hz
Le0.89 mH
Re5.8 Ω
Sd95 cm² (14.73 in²)
Ebp98 Hz
Mms8.3 g
Qes0.97
Qms13.5
Qts0.9
Vas4.4 dm³ (0.16 ft³)
η00.36 %
Xvar5.5 mm
Winding Depth11 mm (0.43 in)
Former MaterialGlass Fibre
Nominal Diameter127 mm (5 in)
Winding MaterialCopper
Magnetic Gap Depth6 mm (0.24 in)
Woofer Cone TreatmentWP Waterproof Front Side
