- Drivers
- 1 × 4CXN36, 8 Ω
4-inch LF driver · 4CXN series · 34 mm voice coil · 100 W
B&C 4CXN36 8Ω
£106.44
SteadyJP Leisure · In stock · All 2 offers
- Fs
- 113Hz
- Xmax
- 5mm
- SPL
- 86dB
- Pe
- 100W
- BL
- 5.1T·m
- Vd
- 28cm³
- Qts
- 0.83
- Vas
- 2L

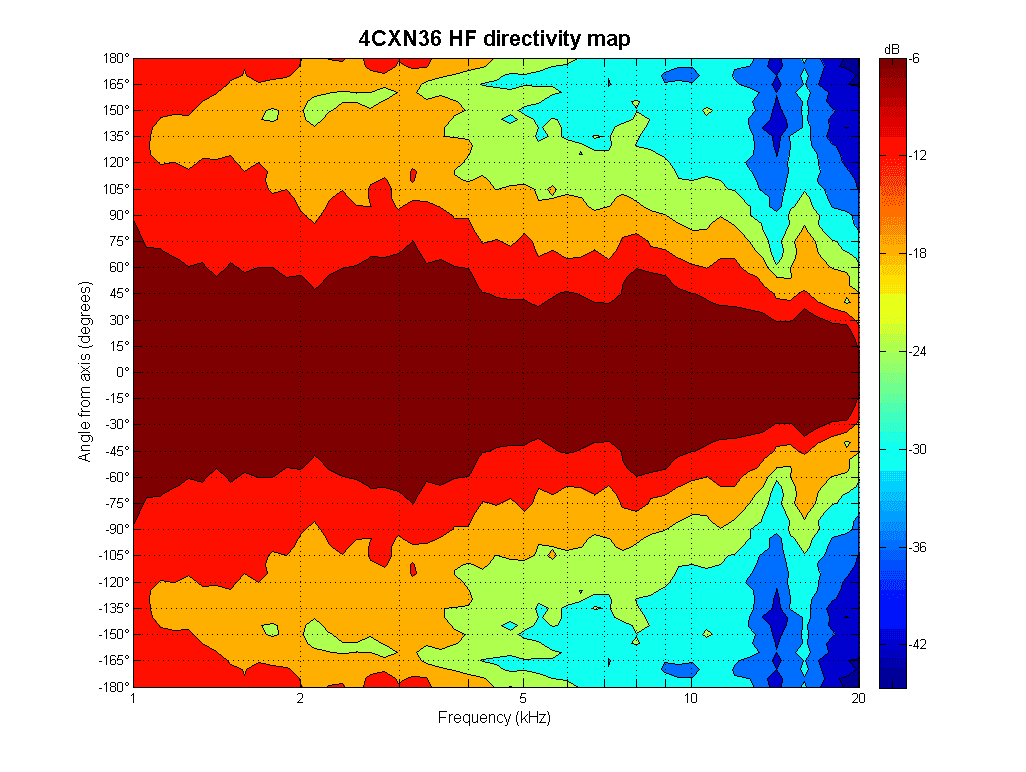

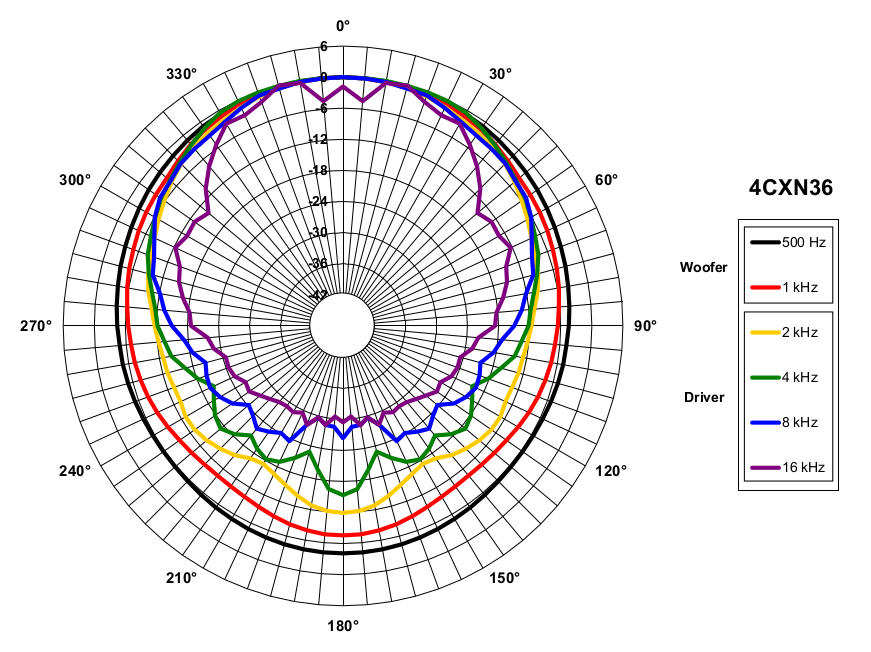

Published graphs
B&C 4CXN36 is a 4-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 113 Hz, Qts 0.83, Vas 1.5 L, Xmax 5 mm, sensitivity 85.8 dB, plus 28 cm³ Vd and 126 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £106.44.
The published T/S values agree with each other
Thiele/Small
- Fs
- 113Hz
- Qts
- 0.83
- Qes
- 0.90
- Qms
- 12.7
- Vas
- 1.5L
- Re
- 5.6Ω
- Le
- 0.30mH
Motor and cone
- BL
- 5.1T·m
- Sd
- 56cm²
- Mms
- 6g
- Xmax
- 5mm
- Vd †
- 28cm³
- Voice coil
- 34mm
- Flux density
- 0.74T
Power and response
- Sensitivity †
- 85.8dB
- Manufacturer sensitivity
- 86dB
- Power
- 100W
- Nominal power
- 100W
- Impedance
- 8Ω
- Min. impedance
- 6.5Ω
- EBP †
- 126 · Leans vented
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Specifications LF unit
- BL
- 5.1T·m
- Fs
- 113Hz
- Le
- 0.30mH
- Re
- 5.6Ω
- Sd
- 56cm²
- Mms
- 6g
- Qes
- 0.90
- Qms
- 12.7
- Qts
- 0.83
- SPL
- 85.8dB
- Vas
- 1.5L
- Xmax
- 5mm
- Power
- 100W
- Impedance
- 8Ω
- Flux density
- 0.74T
- Sensitivity
- 86dB
- Nominal power
- 100W
- Calculated sensitivity †
- 85.8dB
- Manufacturer sensitivity
- 86dB
- Min. impedance
- 6.5Ω
- Voice coil
- 34mm
- Bl
- 5.13 Tm
- Fs
- 113 Hz
- Le
- 0.3 mH
- Re
- 5.6 Ω
- Sd
- 56 cm² (8.68 in²)
- Ebp
- 126 Hz
- Mms
- 6 g
- Qes
- 0.9
- Qms
- 12.7
- Qts
- 0.83
- Vas
- 1.5 dm³ (0.05 ft³)
- Η0
- 0.22 %
- Xvar
- 5 mm
- Sensitivity
- 86 dB
- Flux density
- 0.74 T
- Winding depth
- 11 mm (0.43 in)
- Former material
- Glass Fibre
- Nominal diameter
- 100 mm (4 in)
- Winding material
- Copper
- Minimum impedance
- 6.5 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 6 mm (0.24 in)
- Voice coil diameter
- 34 mm (1.3 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Nominal power handling
- 100 W
- Continuous power handling
- 200 W
HF · Specifications HF unit
- Le
- 0.14mH
- SPL
- 102dB
- Power
- 25W
- Impedance
- 16Ω
- Flux density
- 1.65T
- Sensitivity
- 102dB
- Nominal power
- 25W
- Manufacturer sensitivity
- 102dB
- Min. impedance
- 10.2Ω
- Voice coil
- 36mm
- Crossover
- 2000Hz
- Inductance
- 0.14 mH
- Sensitivity
- 102 dB
- Flux density
- 1.65 T
- Nominal diameter
- 100 mm (4 in)
- Winding material
- Aluminium
- Minimum impedance
- 10.2 Ω
- Nominal impedance
- 16 Ω
- Diaphragm material
- HT Polymer
- Voice coil diameter
- 36 mm (1.42 in)
- Recommended crossover
- 2 kHz
- Nominal power handling
- 25 W
- Continuous power handling
- 50 W
