Overview
LF DriverTFX0515 series
Celestion

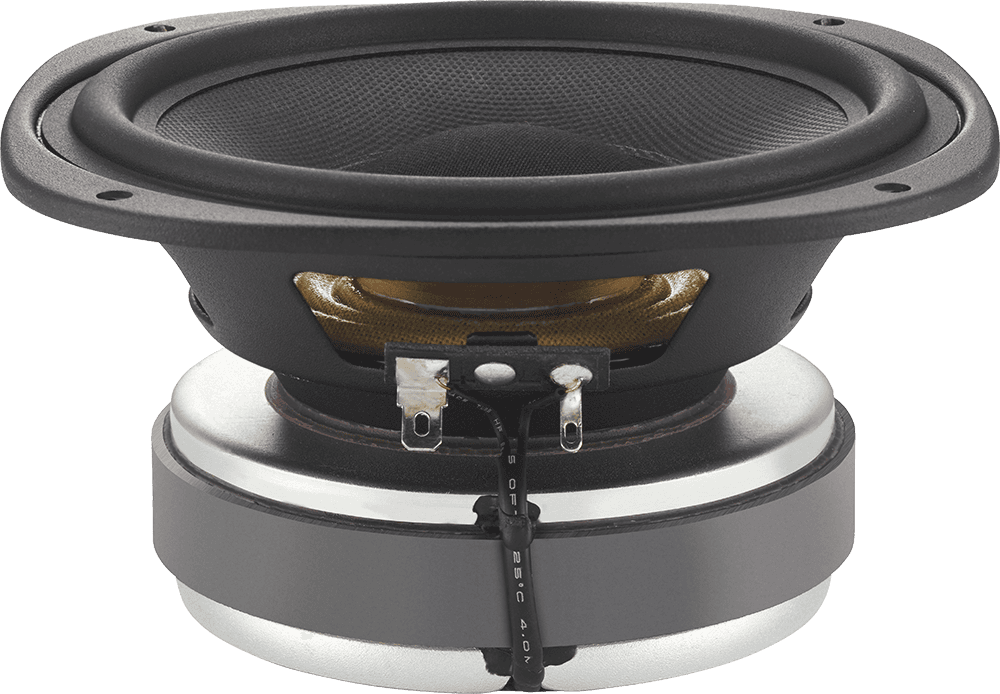

Celestion TFX0515-16
Celestion TFX0515-16 is a 5" 16 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 110Hz, Qts 0.80, Vas 2.0L, Xmax 3.8mm, sensitivity 87.1dB, plus 36cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
16Ω
RMS Power
10W
Sensitivity
87.1dB
96.0dBmanufacturer; using T/S-derived value (8.9dB delta).
EBP
130
Vented alignment
Vd
36cm³
T/S Parameters
Valid
Fs110Hz
Qts0.80
Qes0.85
Qms14.3
Vas2.0L
Re10.2Ω
Le0.46mH
BL8.6Tm
Sd95cm²
Mms9g
Xmax3.8mm
SPL87dB
Power10W
Impedance16Ω
Voice Coil25mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter151.0mm
Overall Depth72.0mm
Cutout Diameter116.0mm
Bolt Circle Diameter140.0mm
