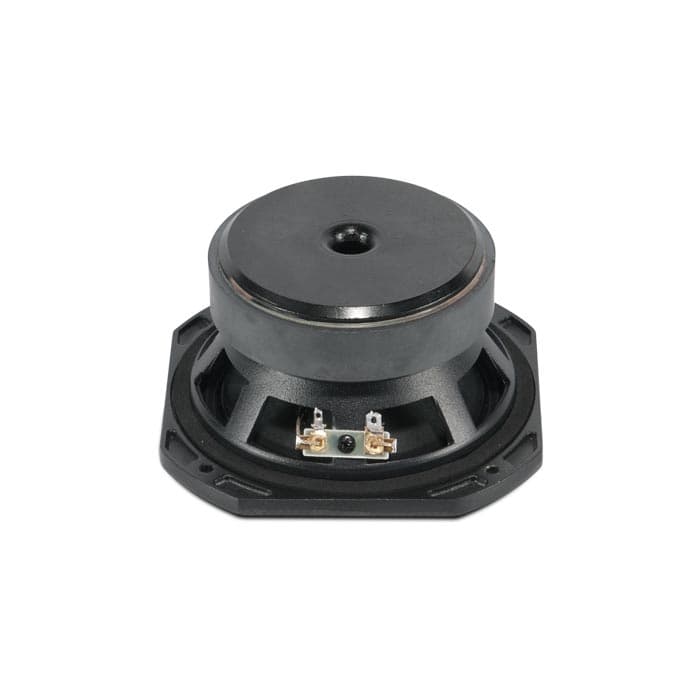

Fane STUDIO 5HPM 8Ω
8 Ω · 90–7000 Hz
No current price
- Fs
- 164Hz
- Xmax
- 4.5mm
- SPL
- 92dB
- Pe
- 100W
- BL
- 7.9T·m
- Vd
- 40cm³
- Qts
- 0.54
- Vas
- 2L
Fane STUDIO 5HPM is a 5-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 164 Hz, Qts 0.54, Vas 1.6 L, Xmax 4.5 mm, sensitivity 92.1 dB, plus 40 cm³ Vd and 229 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 164Hz
- Qts
- 0.54
- Qes
- 0.71
- Qms
- 2.3
- Vas
- 1.6L
- Re
- 6.6Ω
- Le
- 1.19mH
Motor and cone
- BL
- 7.9T·m
- Sd
- 88cm²
- Mms
- 7g
- Xmax
- 4.5mm
- Vd †
- 40cm³
Power and response
- Sensitivity †
- 92.1dB
- Manufacturer sensitivity
- 92.5dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 90–7000Hz
- EBP †
- 229 · Leans vented
Size and mounting
- Diameter
- 152.4mm
- Depth
- 69.8mm
- Weight
- 1.4kg
Other published values
- Cms
- 0.15mm/N
- Power Peak
- 400
- Power Program
- 200
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 5″
- BL
- 7.9T·m
- Fs
- 164Hz
- Le
- 1.19mH
- Re
- 6.6Ω
- Sd
- 88cm²
- Cms
- 0.15mm/N
- Mms
- 7g
- Qes
- 0.71
- Qms
- 2.3
- Qts
- 0.54
- SPL
- 92.1dB
- Vas
- 1.6L
- Xmax
- 4.5mm
- Power
- 100W
- Impedance
- 8Ω
- Power Peak
- 400
- Sensitivity
- 92.5dB
- Low limit
- 90Hz
- Power Program
- 200
- Calculated sensitivity †
- 92.1dB
- High limit
- 7000Hz
- Manufacturer sensitivity
- 92.5dB
- Weight
- 1.4kg
- Diameter
- 152.4mm
- Depth
- 69.8mm
