Eminence ALPHA-6A 8Ω
8 Ω · 95–6000 Hz
£59.00
2.5%Lean Business · All 6 offers
- Fs
- 103Hz
- Xmax
- 3.5mm
- SPL
- 92dB
- Pe
- 100W
- BL
- 8T·m
- Vd
- 44cm³
- Qts
- 0.54
- Vas
- 6L

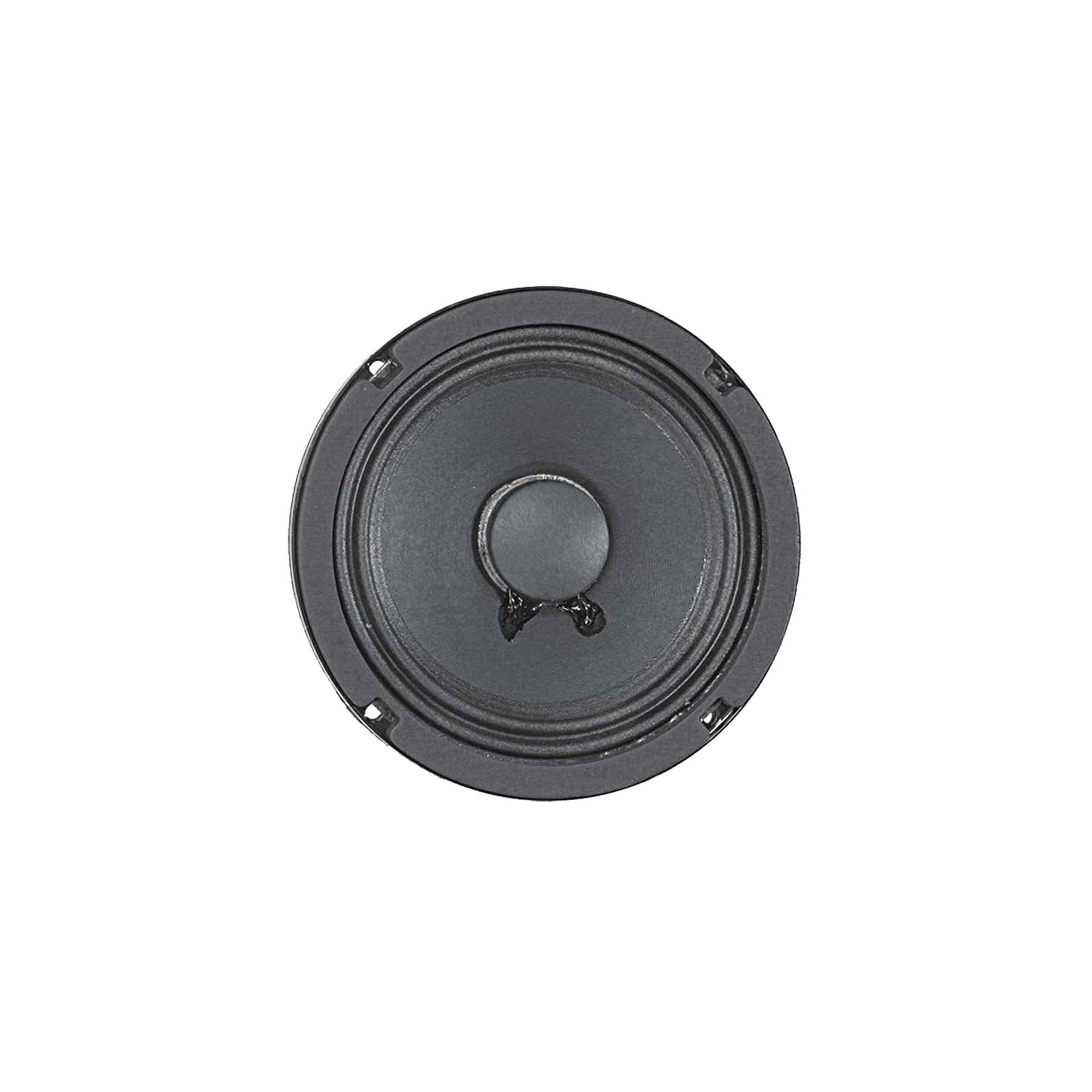

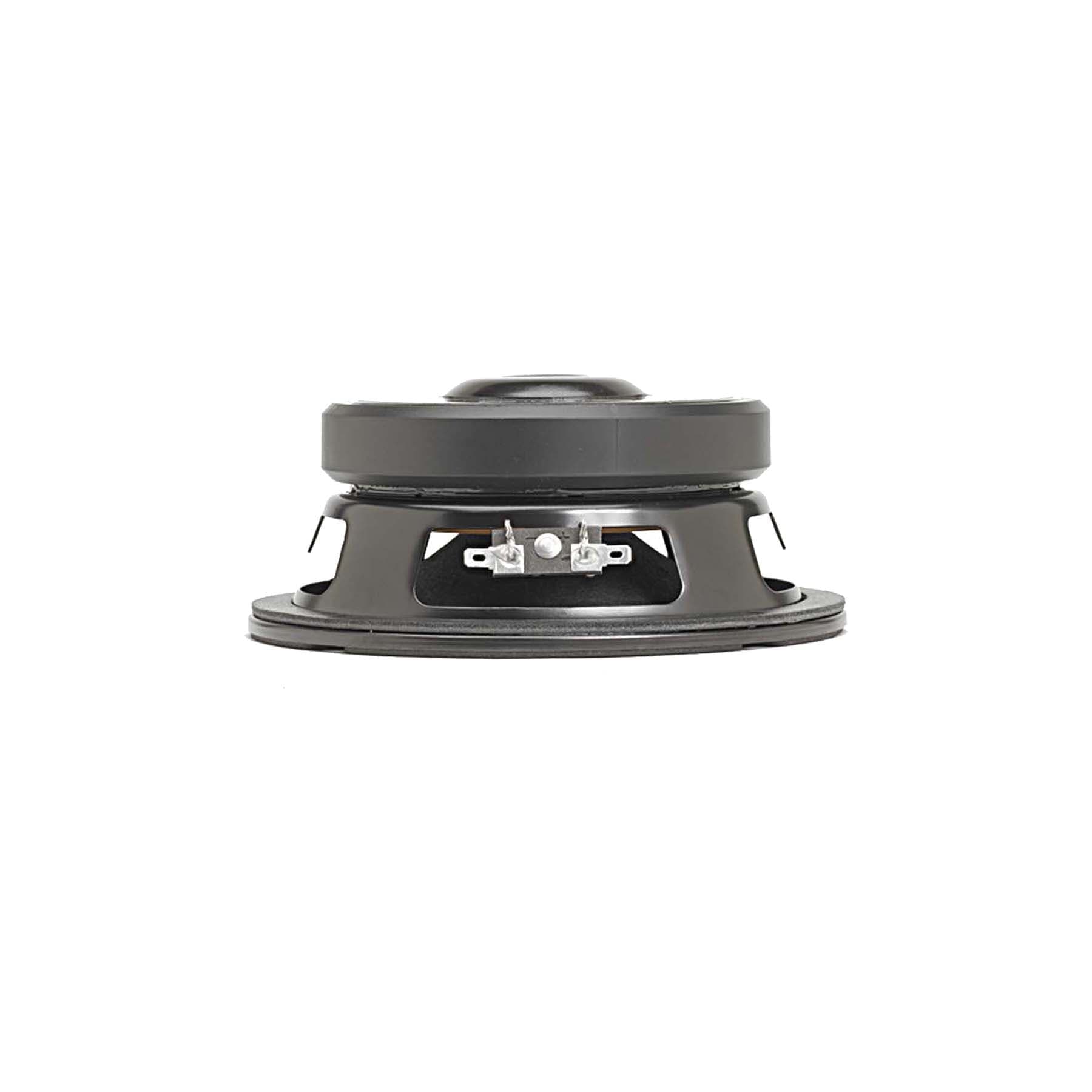

Eminence ALPHA-6A is a 6-inch 8 ohm LF driver rated at 100 W RMS. The validated T/S data includes Fs 103 Hz, Qts 0.54, Vas 5.8 L, Xmax 3.5 mm, sensitivity 92.3 dB, plus 44 cm³ Vd and 172 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £59.00.
The published T/S values agree with each other
Thiele/Small
- Fs
- 103Hz
- Qts
- 0.54
- Qes
- 0.60
- Qms
- 5.7
- Vas
- 5.8L
- Re
- 7.2Ω
- Le
- 0.19mH
Motor and cone
- BL
- 8T·m
- Sd
- 127cm²
- Mms
- 7g
- Xmax
- 3.5mm
- Vd †
- 44cm³
Power and response
- Sensitivity †
- 92.3dB
- Manufacturer sensitivity
- 93.6dB
- Power
- 100W
- Impedance
- 8Ω
- Range
- 95–6000Hz
- EBP †
- 172 · Leans vented
Size and mounting
- Diameter
- 167.4mm
- Cutout
- 143.5mm
- Bolt circle
- 153.9mm
- Depth
- 71.1mm
- Weight
- 1.9kg
Other published values
- Cms
- 0.26mm/N
- Xmech
- 4
- Power Program
- 200
Sensitivity shows 92.3 dB, calculated from the T/S values. Eminence publishes 93.6 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 6″
- BL
- 8T·m
- Fs
- 103Hz
- Le
- 0.19mH
- Re
- 7.2Ω
- Sd
- 127cm²
- Cms
- 0.26mm/N
- Mms
- 7g
- Qes
- 0.60
- Qms
- 5.7
- Qts
- 0.54
- SPL
- 92.3dB
- Vas
- 5.8L
- Xmax
- 3.5mm
- Xmech
- 4
- Power
- 100W
- Impedance
- 8Ω
- Sensitivity
- 93.6dB
- Low limit
- 95Hz
- Power Program
- 200
- Calculated sensitivity †
- 92.3dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 93.6dB
- Weight
- 1.9kg
- Diameter
- 167.4mm
- Depth
- 71.1mm
- Cutout
- 143.5mm
- Bolt circle
- 153.9mm
