LF DriverDiscovery series
Scanspeak

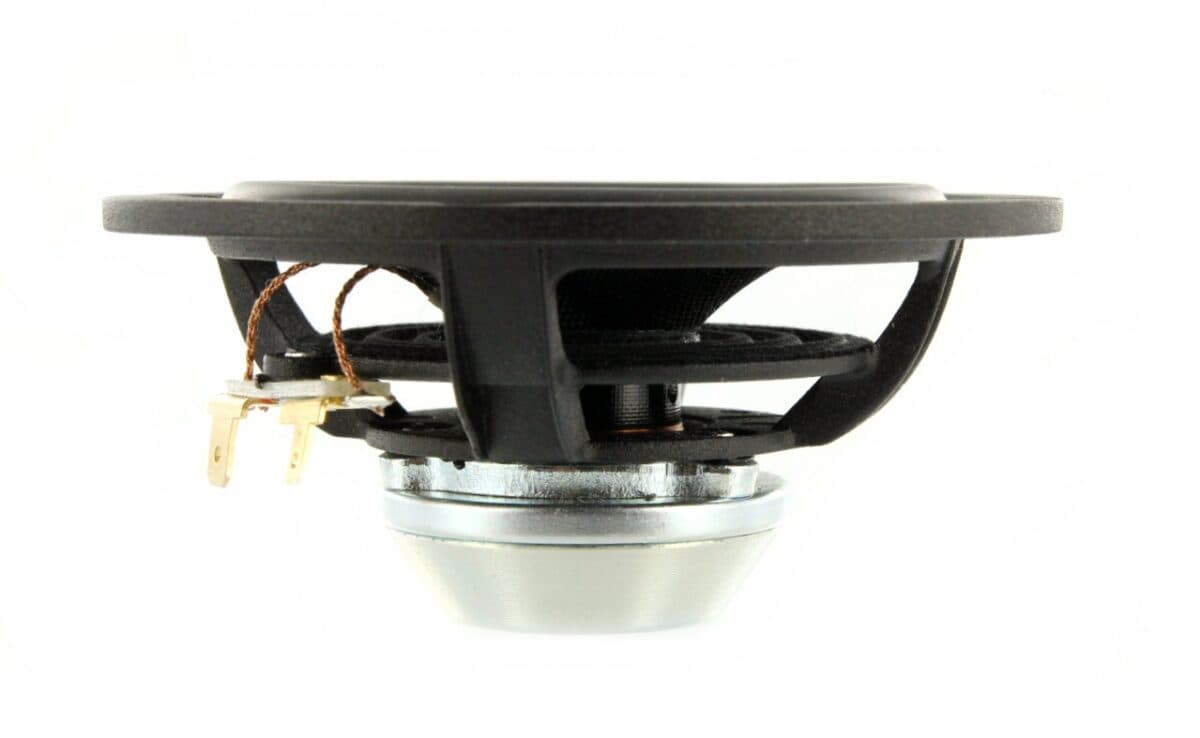

Scanspeak 10F/8414G10
Scanspeak 10F/8414G10 is a 4" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 100Hz, Qts 0.51, Vas 1.6L, Xmax 2.3mm, sensitivity 85.9dB, plus 8cm³ Vd and 154 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £89.95.
Size
4"
Impedance
8Ω
RMS Power
10W
Sensitivity
85.9dB
EBP
154
Vented alignment
Vd
8cm³
T/S Parameters
Valid
Fs100Hz
Qts0.51
Qes0.65
Qms2.4
Vas1.6L
Re6.3Ω
Le0.11mH
BL4.3Tm
Sd36cm²
Mms3g
Xmax2.3mm
SPL86dB
Power10W
Impedance8Ω
Min Impedance6.8Ω
Voice Coil20mm
Pricing & availability
Price definitionsPrice movement
Best current price
£89.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter100.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
10F/8414G10
4"
Best current price
£89.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
52%
Similarity
80% cheaper£18.26
FaitalPRO
3FE22
3"
Lower price
Xmax1.8mm-20%
Qts0.47-8%
BL4.5Tm+5%
Vas1.3L-17%
Qes0.52-20%
57%
Similarity
76% cheaper£21.47

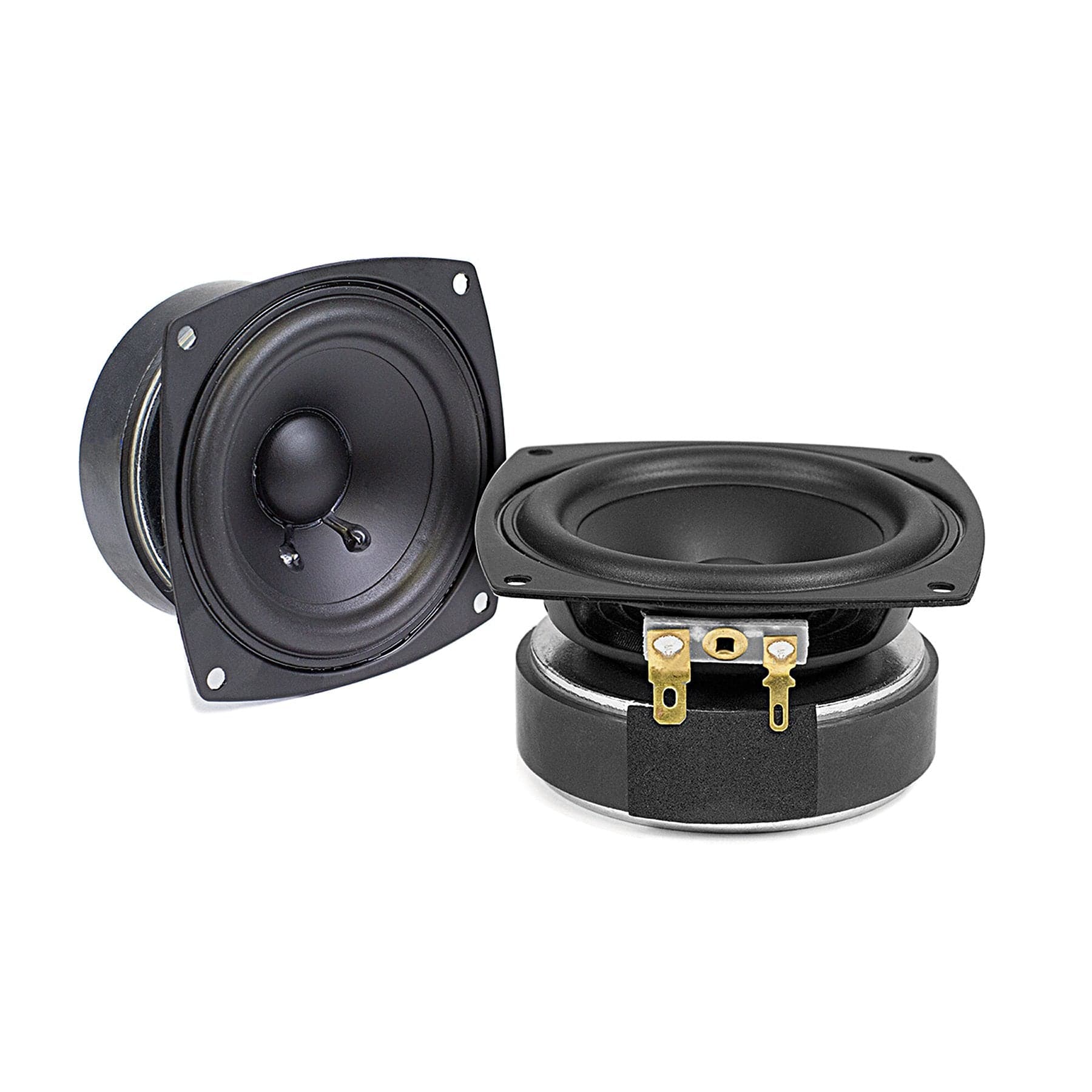

Eminence
ALPHA 3-8
3"
Lower price
Xmax2.4mm+4%
Qts0.5-2%
BL3.9Tm-9%
Vas0.9L-39%
Qes0.53-18%
55%
Similarity
76% cheaper£21.94
FaitalPRO
4FE32
4"
Lower price
Xmax2.7mm+19%
Qts0.61+20%
BL4.8Tm+12%
Vas2.3L+46%
Qes0.7+8%
36%
Similarity
74% cheaper£23.56

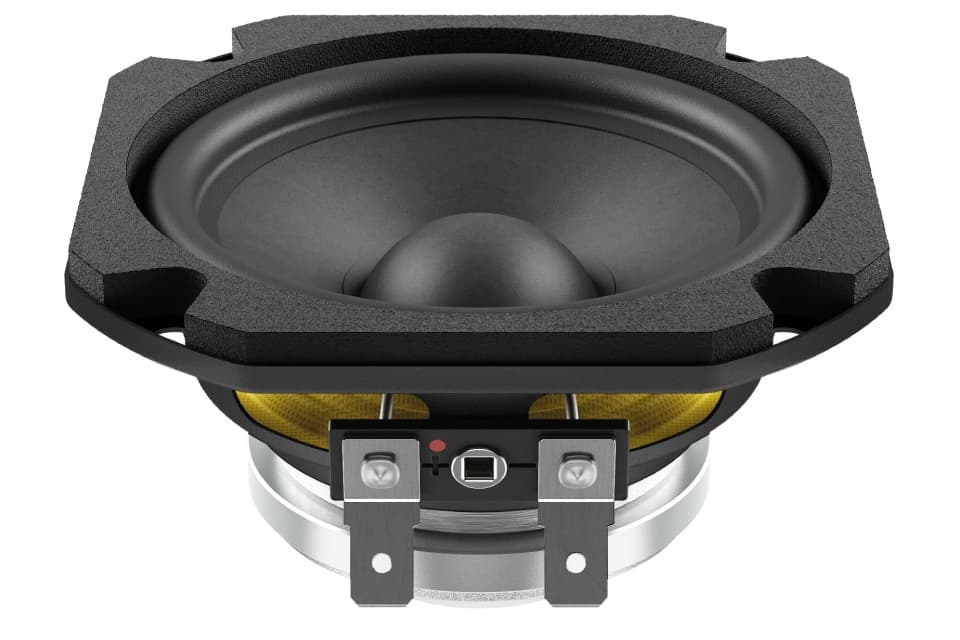

Lavoce
FSN030.72
3"
Lower price
Xmax2.1mm-9%
Qts0.41-20%
BL5Tm+16%
Vas1.1L-29%
Qes0.43-34%
69%
Similarity
63% cheaper£32.88

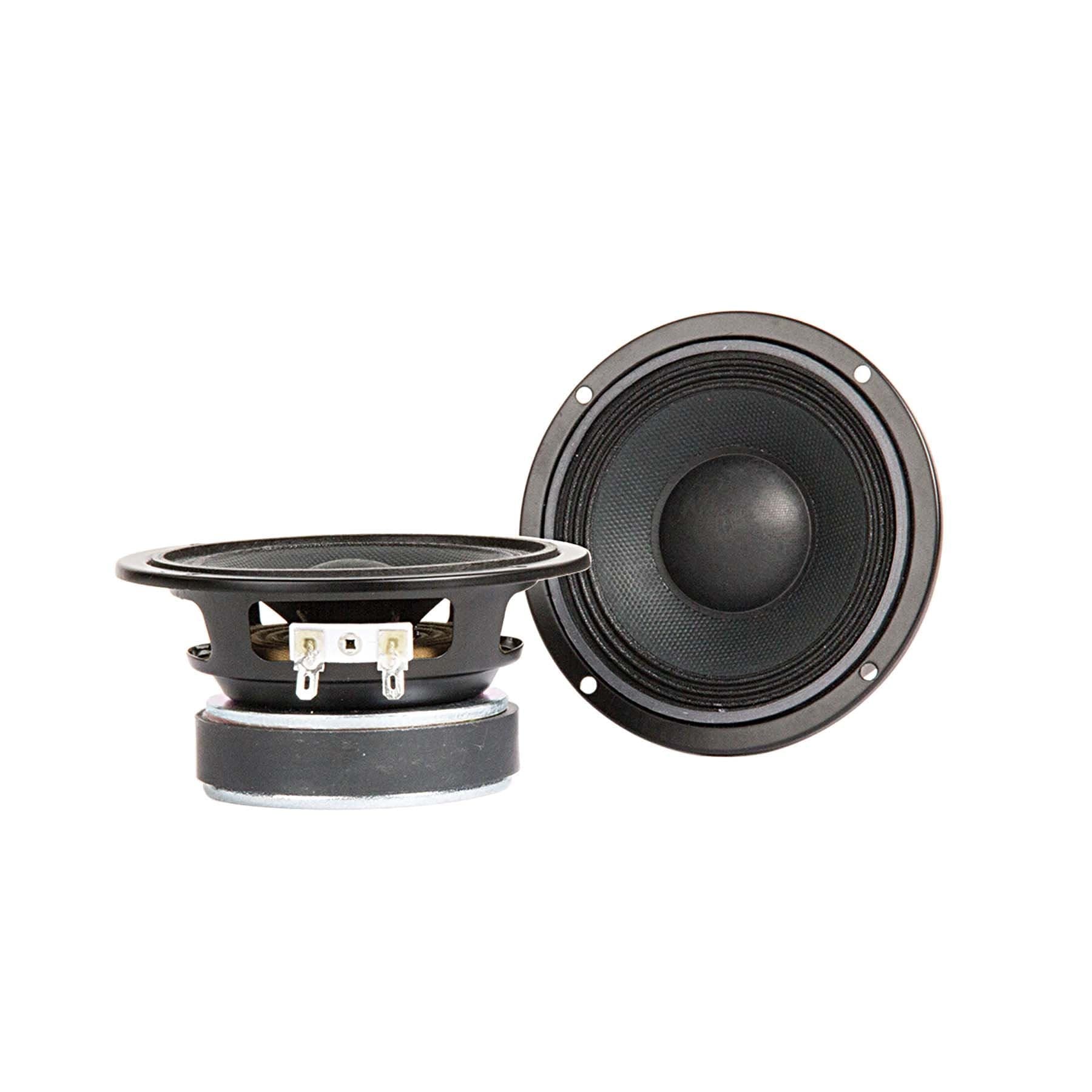

Eminence
ALPHA 4-4
4"
Lower price
Xmax2.6mm+13%
Qts0.63+24%
BL4.1Tm-4%
Vas1.8L+12%
Qes0.7+8%
65%
Similarity
61% cheaper£34.69

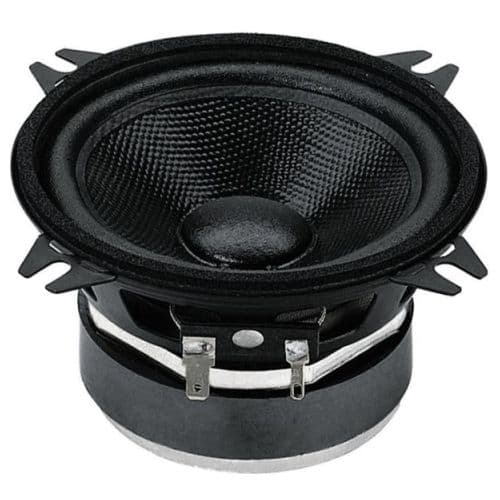

CIARE
CM100
4"
Lower price
Xmax1.9mm-17%
Qts0.43-16%
BL4.1Tm-5%
Vas1.8L+15%
Qes0.52-20%
68%
Similarity
Visaton
FRS 8 M - 8 Ohm
3.5"
Xmax2.5mm+9%
Qts0.49-4%
BL4Tm-7%
Vas1.1L-30%
Qes0.58-11%
64%
Similarity

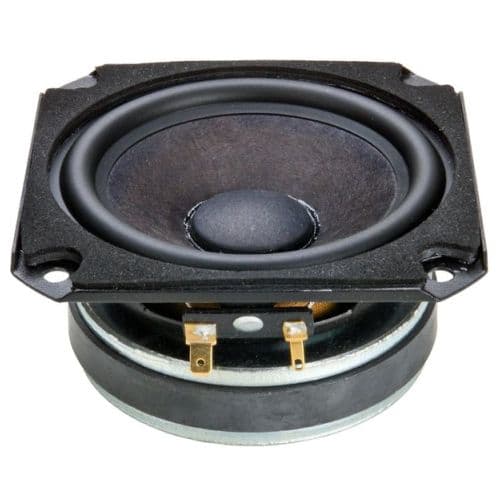

CIARE
PA100
4"
Xmax2.5mm+9%
Qts0.59+16%
BL4.4Tm+2%
Vas2.5L+59%
Qes0.7+8%
59%
Similarity
Sica
4 L 1 SL
4"
Xmax2.4mm+4%
Qts0.63+24%
BL5.1Tm+19%
Vas1.2L-24%
Qes0.78+20%
57%
Similarity
Wavecor
WF095WA02
3.5"
Xmax2.7mm+17%
Qts0.62+22%
BL3.6Tm-16%
Vas1.6L+2%
Qes0.69+6%
55%
Similarity

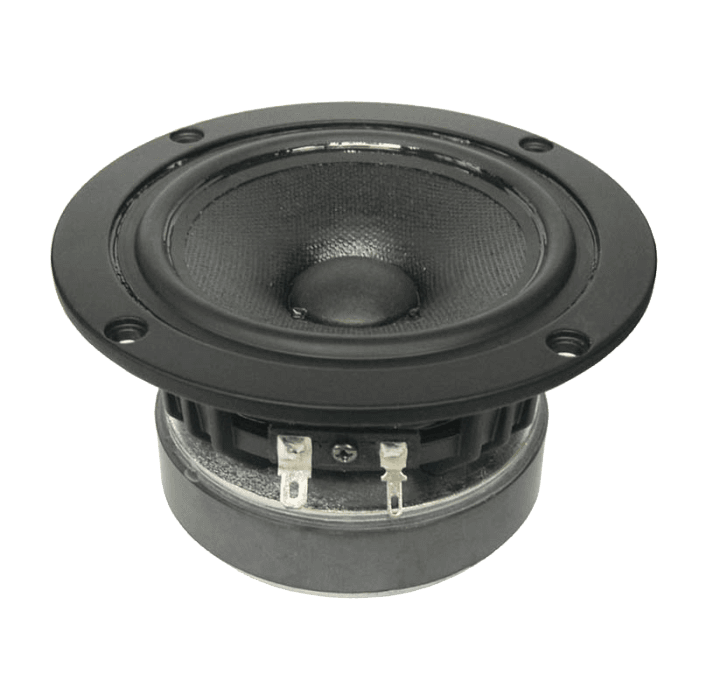

Tang Band
W4-1129E
4"
Xmax1.8mm-22%
Qts0.44-14%
BL5.2Tm+20%
Vas1.7L+10%
Qes0.46-29%
55%
Similarity

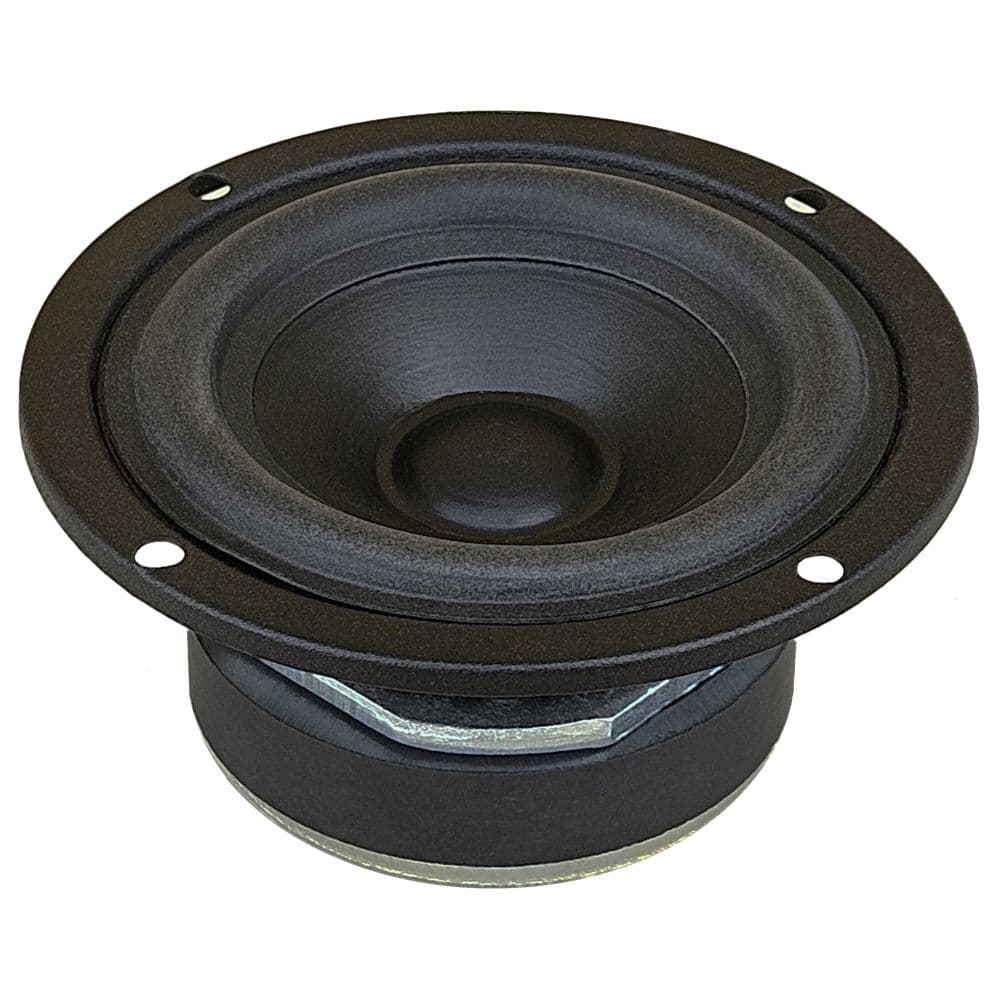

CIARE
FXI3.21
3.5"
Xmax2mm-13%
Qts0.44-14%
BL3.7Tm-14%
Vas1.8L+15%
Qes0.49-25%
