Overview
LF DriverSPX series
Monacor
Monacor SPX-32M
Monacor SPX-32M is a 3" 8 ohm LF driver rated at 20W RMS. The validated T/S data includes Fs 110Hz, Qts 0.56, Vas 1.6L, Xmax 1.1mm, sensitivity 87.5dB, plus 4cm³ Vd and 183 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
20W
Sensitivity
87.5dB
EBP
183
Vented alignment
Vd
4cm³
T/S Parameters
Valid
Fs110Hz
Qts0.56
Qes0.60
Qms7.7
Vas1.6L
Re6.6Ω
Le0.18mH
BL3.7Tm
Sd32cm²
Mms2g
Xmax1.1mm
SPL88dB
Power20W
Impedance8Ω
F Low3Hz
F High22000Hz
Voice Coil20mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£23.58
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

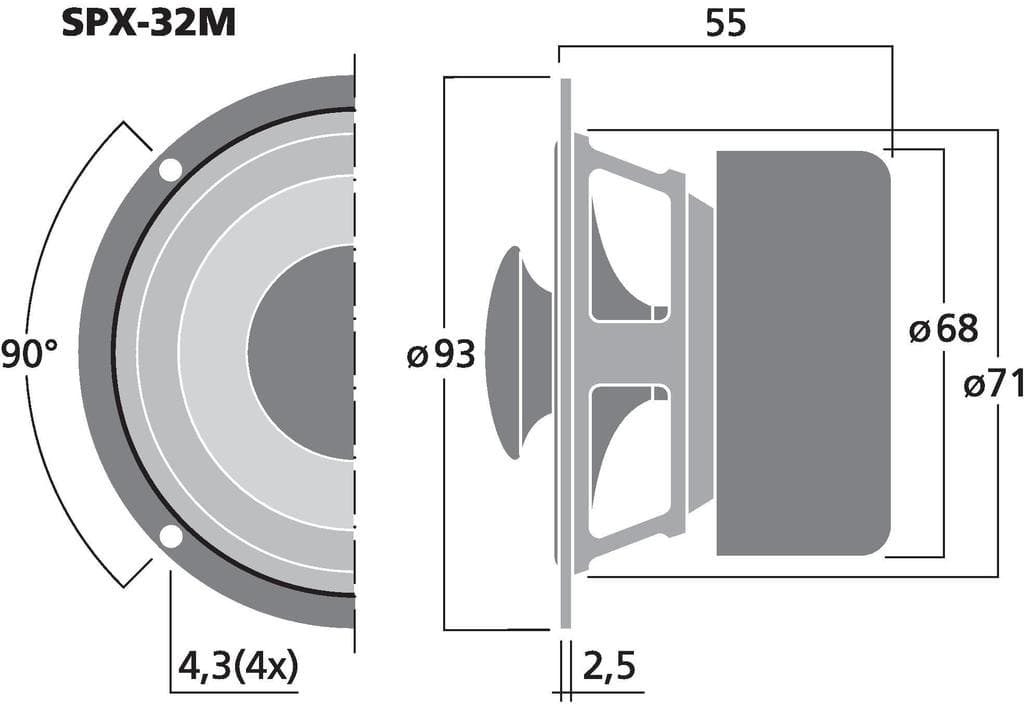

Dimensions & Physical
Weight0.5kg
Diameter93.0mm
Overall Depth55.0mm
Cutout Diameter71.0mm
