LF Driver
Sica

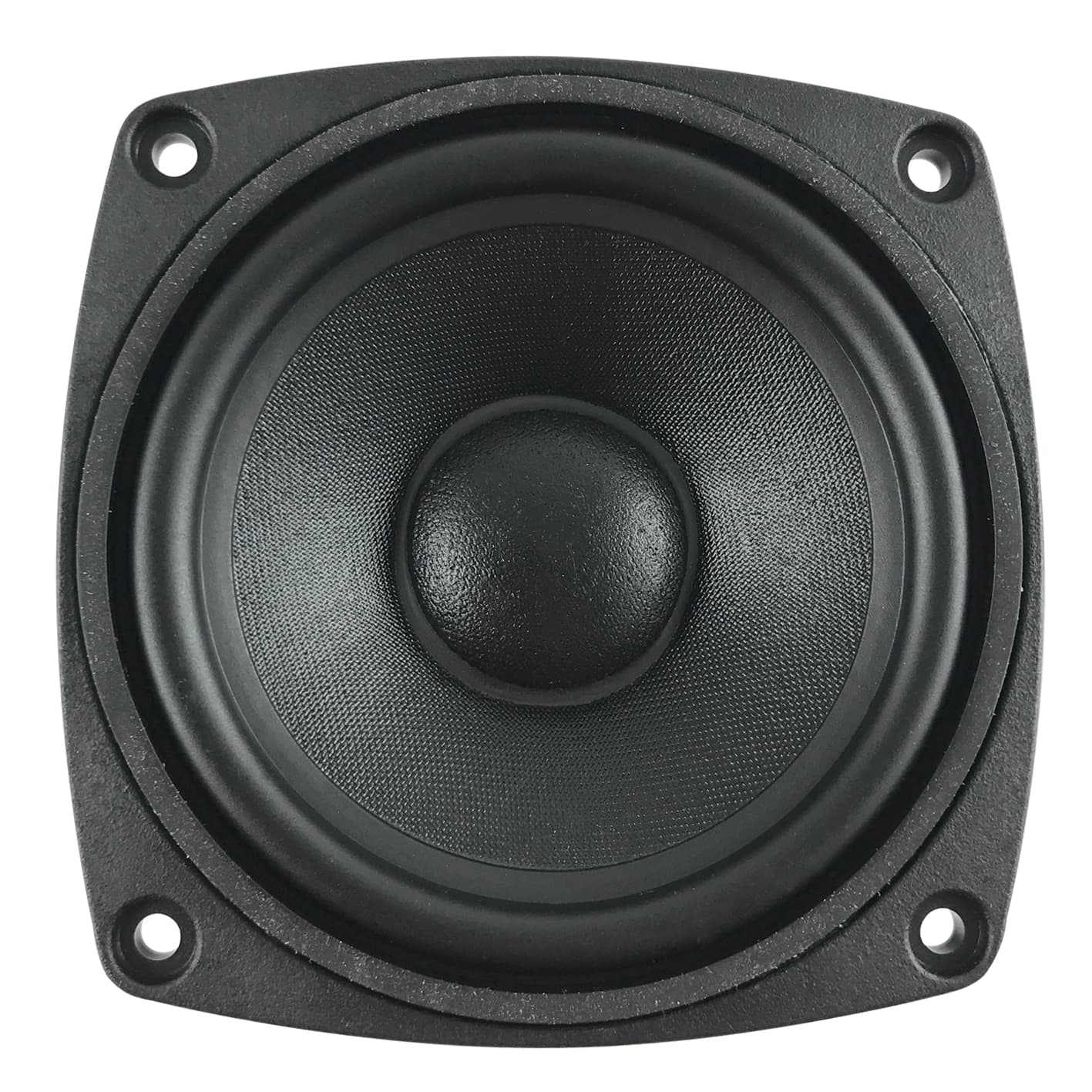

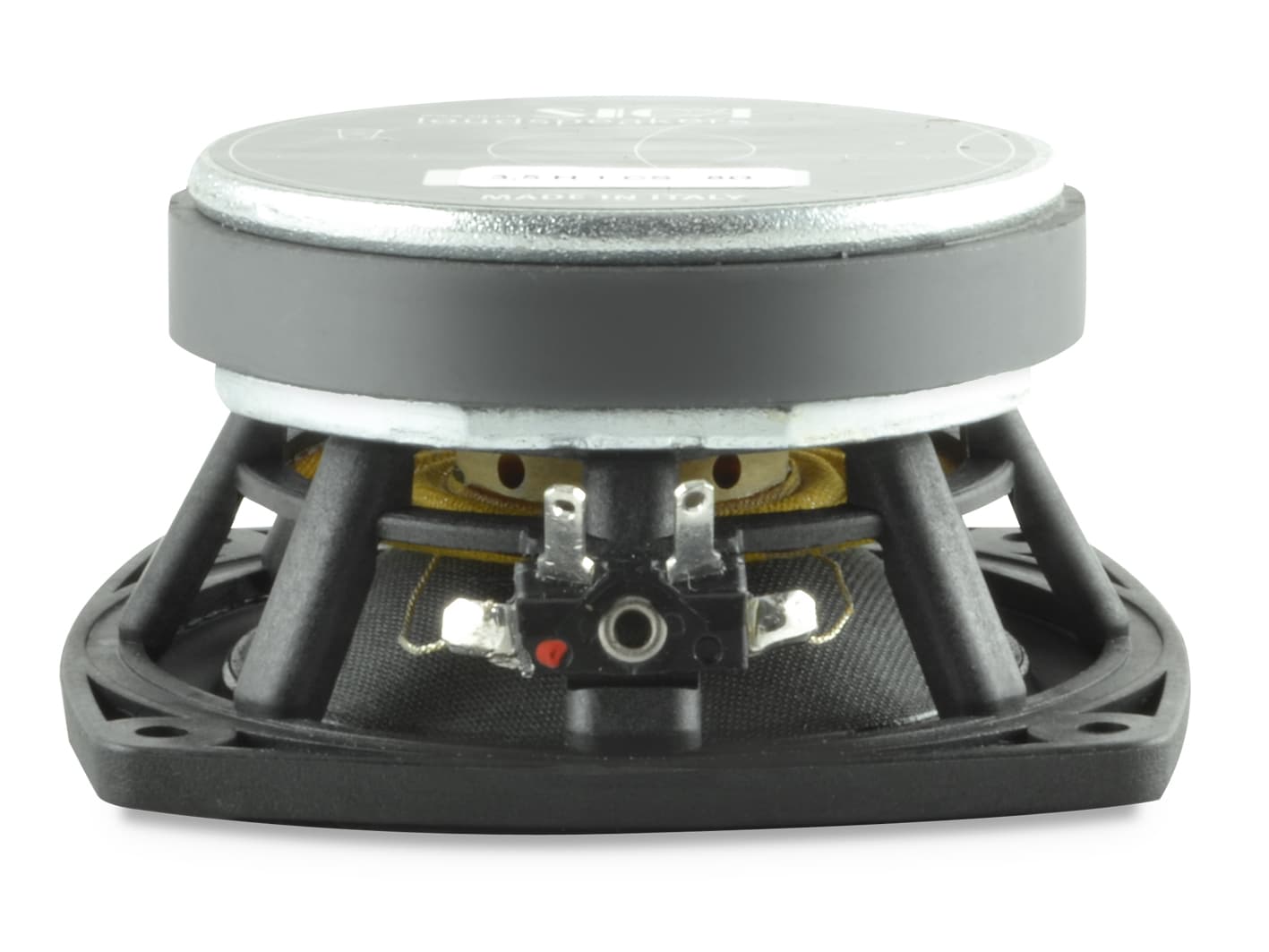

Sica 3.5 H 1 CS
Sica 3.5 H 1 CS is a 3.5" 8 ohm LF driver rated at 45W RMS. The validated T/S data includes Fs 85Hz, Qts 0.53, Vas 1.8L, Xmax 2.5mm, sensitivity 84.9dB, plus 10cm³ Vd and 149 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3.5"
Impedance
8Ω
RMS Power
45W
Sensitivity
84.9dB
86.1dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
149
Vented alignment
Vd
10cm³
T/S Parameters
Valid
Fs85Hz
Qts0.53
Qes0.57
Qms7.0
Vas1.8L
Re6.1Ω
Le0.40mH
BL4.8Tm
Sd39cm²
Mms4g
Xmax2.5mm
SPL85dB
Power45W
Impedance8Ω
Voice Coil25mm
Flux Density1.04T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.4kg
Diameter88.0mm
Overall Depth44.7mm
Cutout Diameter81.0mm
Bolt Circle Diameter98.0mm
