LF DriverAN3510 series
Celestion

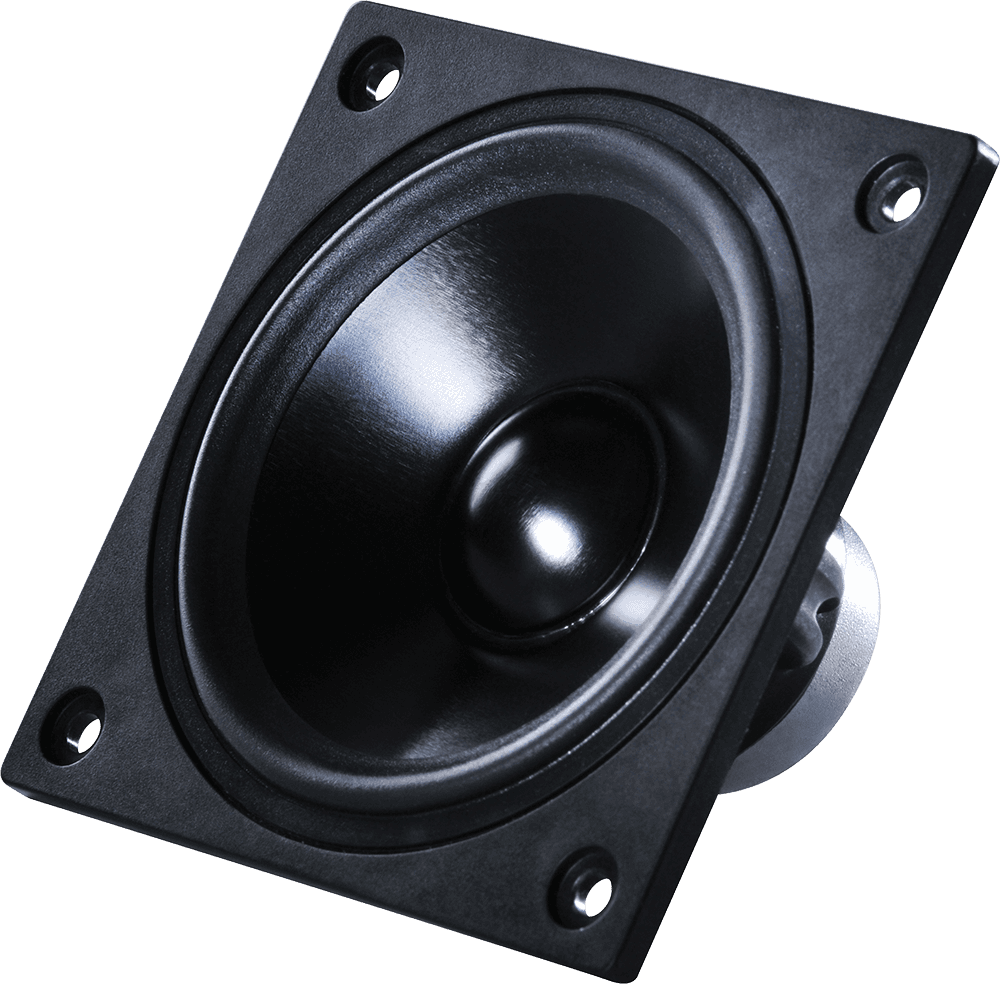

Celestion AN3510
Celestion AN3510 is a 3.5" 8 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 113Hz, Qts 0.65, Vas 1.9L, Xmax 2.3mm, sensitivity 87.7dB, plus 9cm³ Vd and 153 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £43.50.
Size
3.5"
Impedance
8Ω
RMS Power
35W
Sensitivity
87.7dB
EBP
153
Vented alignment
Vd
9cm³

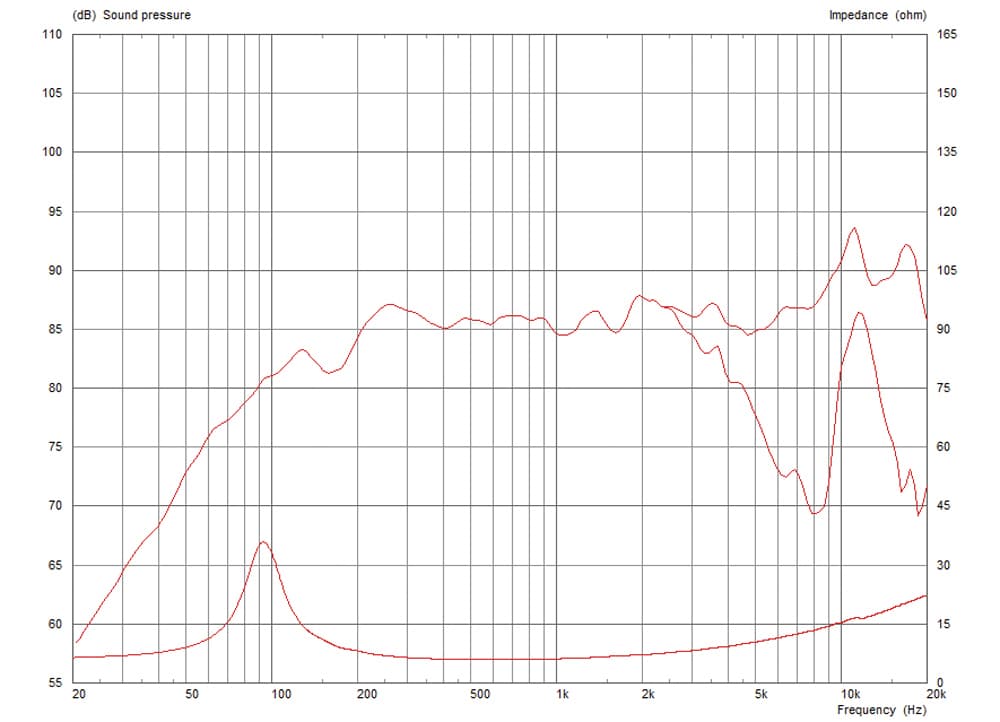

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence181 selected pixels of 372
T/S Parameters
Valid
Fs113Hz
Qts0.65
Qes0.74
Qms5.1
Vas1.9L
Re5.7Ω
Le0.14mH
BL4.6Tm
Sd38cm²
Mms4g
Xmax2.3mm
SPL88dB
Power35W
Impedance8Ω
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£43.50
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Overall Depth50.0mm
Cutout Diameter78.8mm
Bolt Circle Diameter104.0mm
