LF Driver
Sica

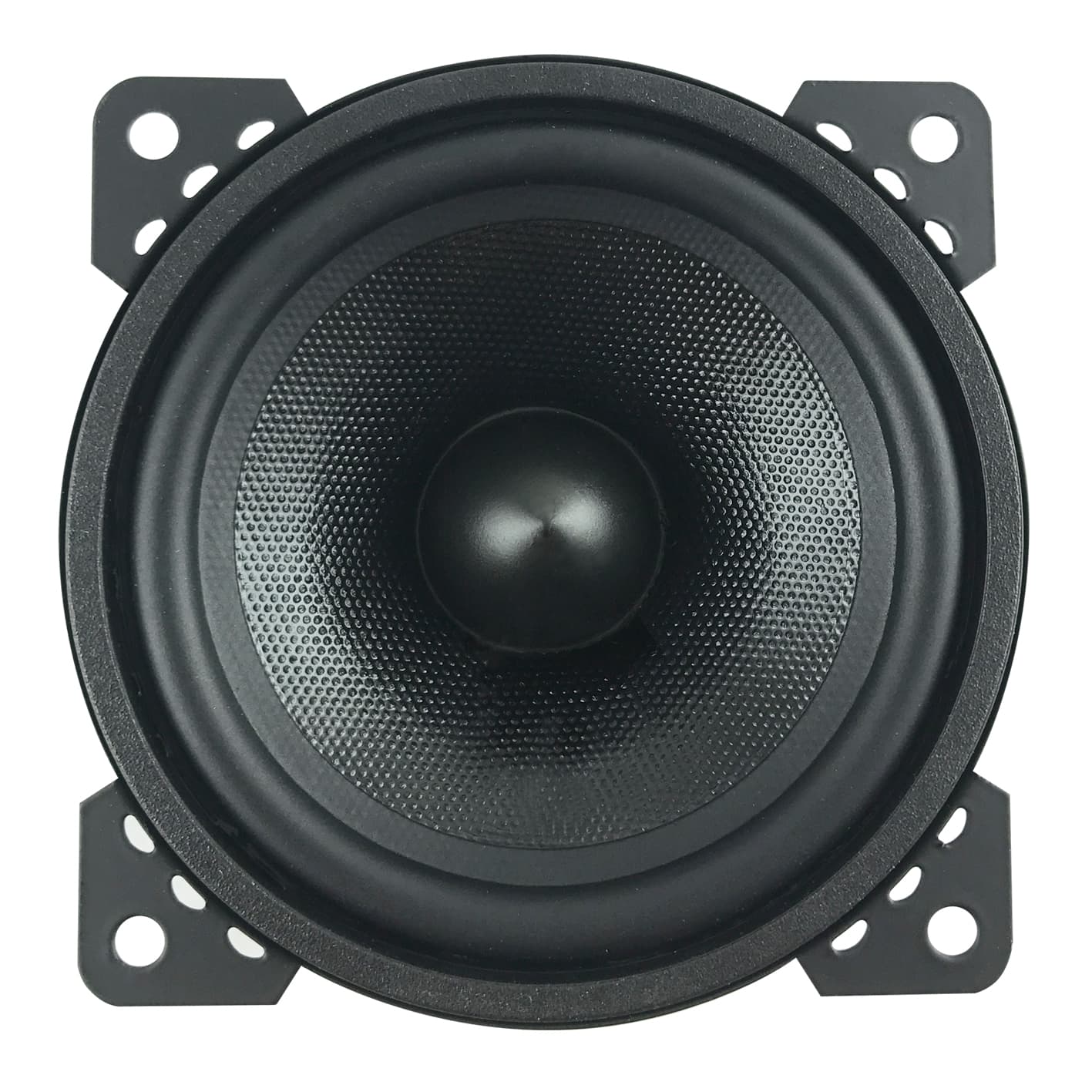

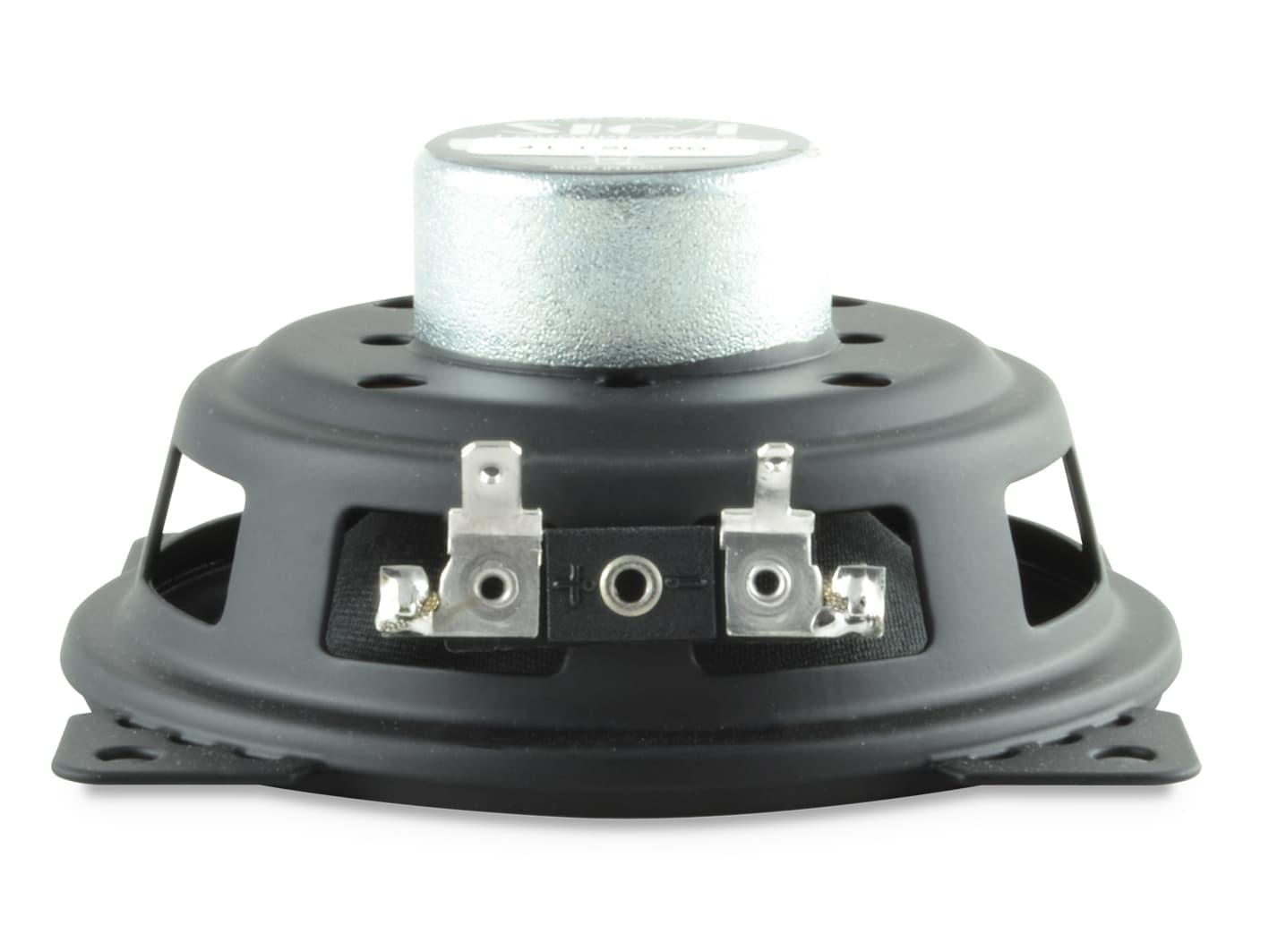

Sica 4 L 1 SL
Sica 4 L 1 SL is a 4" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 108Hz, Qts 0.63, Vas 1.2L, Xmax 2.4mm, sensitivity 84.9dB, plus 11cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
60W
Sensitivity
84.9dB
86.2dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
139
Vented alignment
Vd
11cm³
T/S Parameters
Valid
Fs108Hz
Qts0.63
Qes0.78
Qms3.1
Vas1.2L
Re6.0Ω
Le0.37mH
BL5.1Tm
Sd44cm²
Mms5g
Xmax2.4mm
SPL85dB
Power60W
Impedance8Ω
Voice Coil25mm
Flux Density0.99T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.2kg
Diameter100.0mm
Overall Depth46.5mm
Cutout Diameter90.0mm
Bolt Circle Diameter116.0mm
