4.5-inch LF driver · WF118OM series · 26 mm voice coil
Wavecor WF118OM02 8Ω
8 Ω
No current price
- Fs
- 61Hz
- Xmax
- 1.9mm
- SPL
- 85dB
- Pe
- –
- BL
- 4.2T·m
- Vd
- 10cm³
- Qts
- 0.65
- Vas
- 6L

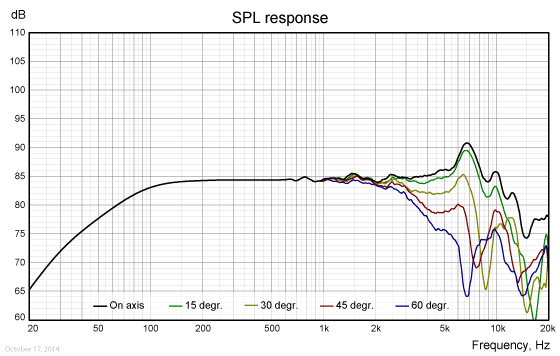

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence542 selected pixels of 542 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence527 selected pixels of 527
Wavecor WF118OM02 is a 4.5-inch 8 ohm LF driver. The validated T/S data includes Fs 61 Hz, Qts 0.65, Vas 5.5 L, Xmax 1.9 mm, sensitivity 84.5 dB, plus 10 cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 61Hz
- Qts
- 0.65
- Qes
- 0.70
- Qms
- 9.3
- Vas
- 5.5L
- Re
- 6.3Ω
Motor and cone
- BL
- 4.2T·m
- Sd
- 54cm²
- Mms
- 5g
- Xmax
- 1.9mm
- Vd †
- 10cm³
- Voice coil
- 26mm
Power and response
- Sensitivity †
- 84.5dB
- Impedance
- 8Ω
- EBP †
- 87 · Sealed or vented
Size and mounting
- Diameter
- 114.3mm
Other published values
- Cms
- 1.33mm/N
- Rms
- 0.21kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 4.5″
- BL
- 4.2T·m
- Fs
- 61Hz
- Re
- 6.3Ω
- Sd
- 54cm²
- Cms
- 1.33mm/N
- Mms
- 5g
- Qes
- 0.70
- Qms
- 9.3
- Qts
- 0.65
- Rms
- 0.21kg/s
- SPL
- 84.5dB
- Vas
- 5.5L
- Xmax
- 1.9mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 84.5dB
- Voice coil
- 26mm
- Diameter
- 114.3mm
02
