Overview
LF DriverCM series
CIARE

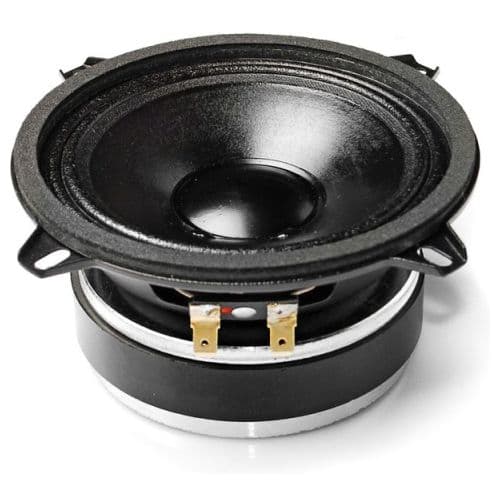

CIARE CM133
CIARE CM133 is a 5" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 112Hz, Qts 0.54, Vas 2.5L, Xmax 2mm, sensitivity 89dB, plus 16cm³ Vd and 158 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
4Ω
RMS Power
200W
Sensitivity
89.0dB
90.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
158
Vented alignment
Vd
16cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,561 selected pixels of 1,805
T/S Parameters
Valid
Fs112Hz
Qts0.54
Qes0.71
Qms2.2
Vas2.5L
Re3.4Ω
Le0.08mH
BL5.0Tm
Sd82cm²
Mms8g
Xmax2.0mm
SPL89dB
Power200W
Power Nominal80W
Impedance4Ω
F Low150Hz
F High7000Hz
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter129.5mm
Overall Depth67.0mm
Cutout Diameter112.0mm
Bolt Circle Diameter138.6mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CM133
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
61%
Similarity
Wavecor
MR120BD03
4.5"
Xmax1.5mm-25%
Qts0.56+4%
BL5.2Tm+3%
Vas3.1L+24%
Qes0.6-15%
60%
Similarity
£17.74
Dayton Audio
PA130-8
5"
Xmax2mm0%
Qts0.51-6%
BL6.4Tm+28%
Vas4L+58%
Qes0.6-15%
Image unavailable
60%
Similarity
Wavecor
MR120BD04
4.5"
Xmax1.5mm-25%
Qts0.55+2%
BL5.2Tm+3%
Vas3.2L+28%
Qes0.59-17%
57%
Similarity
CIARE
PA100
4"
Xmax2.5mm+25%
Qts0.59+9%
BL4.4Tm-13%
Vas2.5L0%
Qes0.7-1%
52%
Similarity

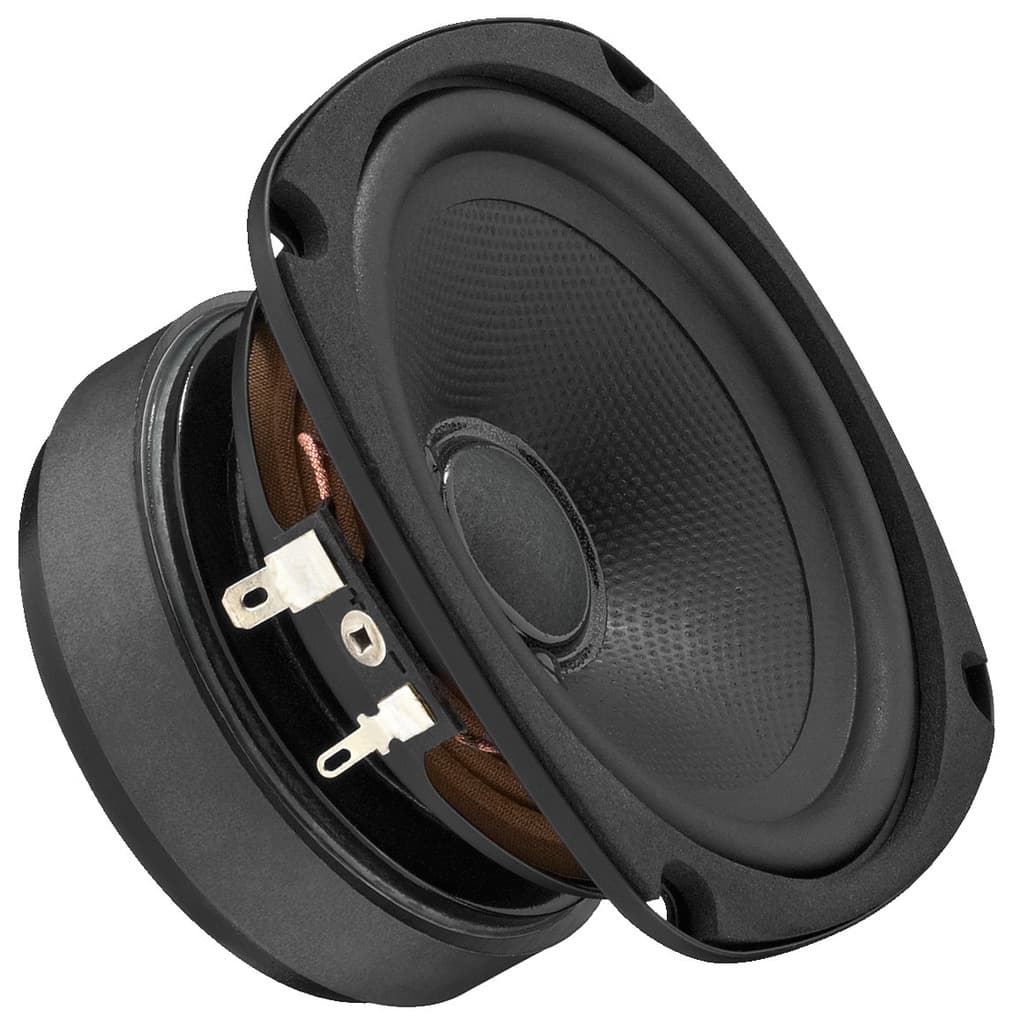

Monacor
