Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 5 N 1.5 PL 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica
Sica 5 N 1.5 PL

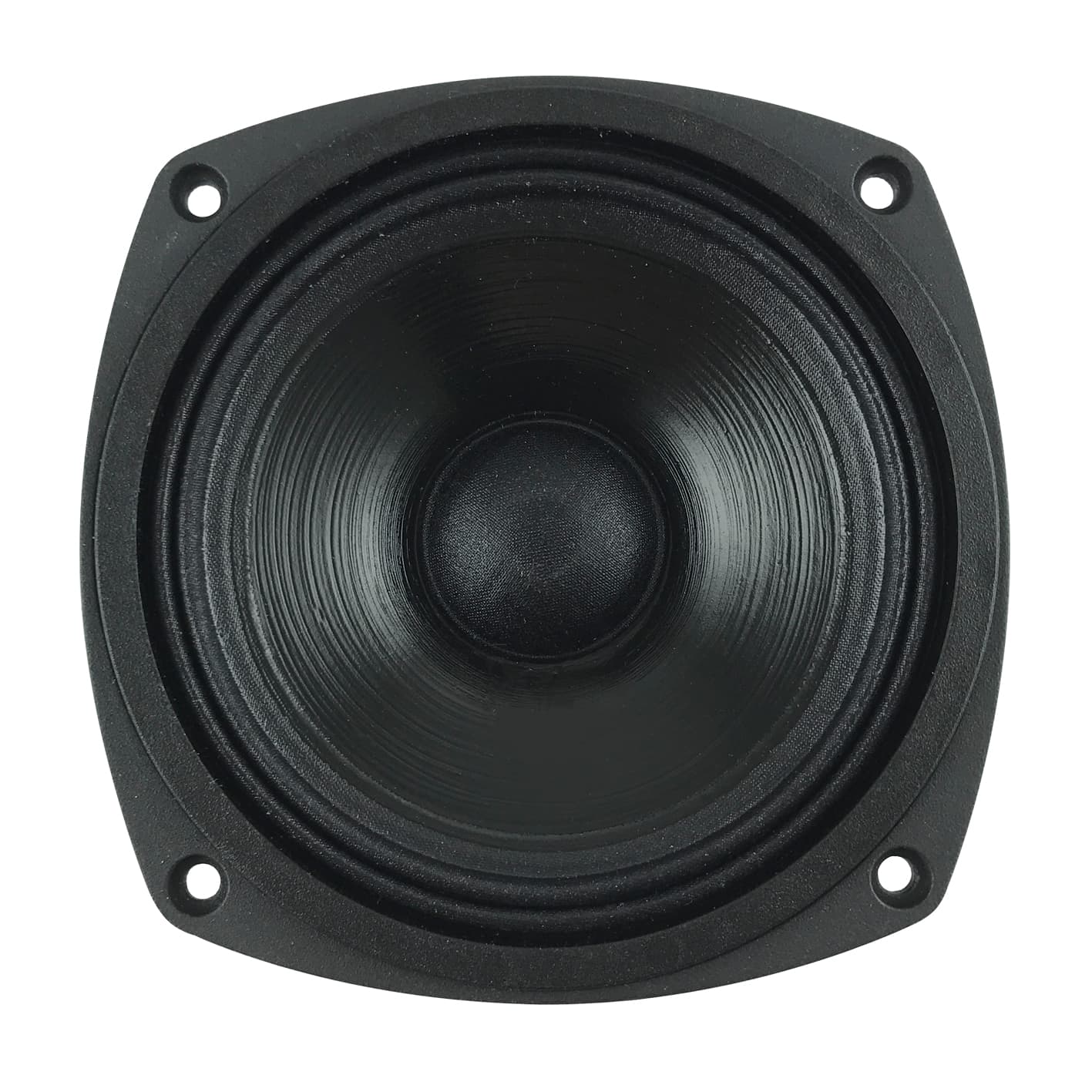

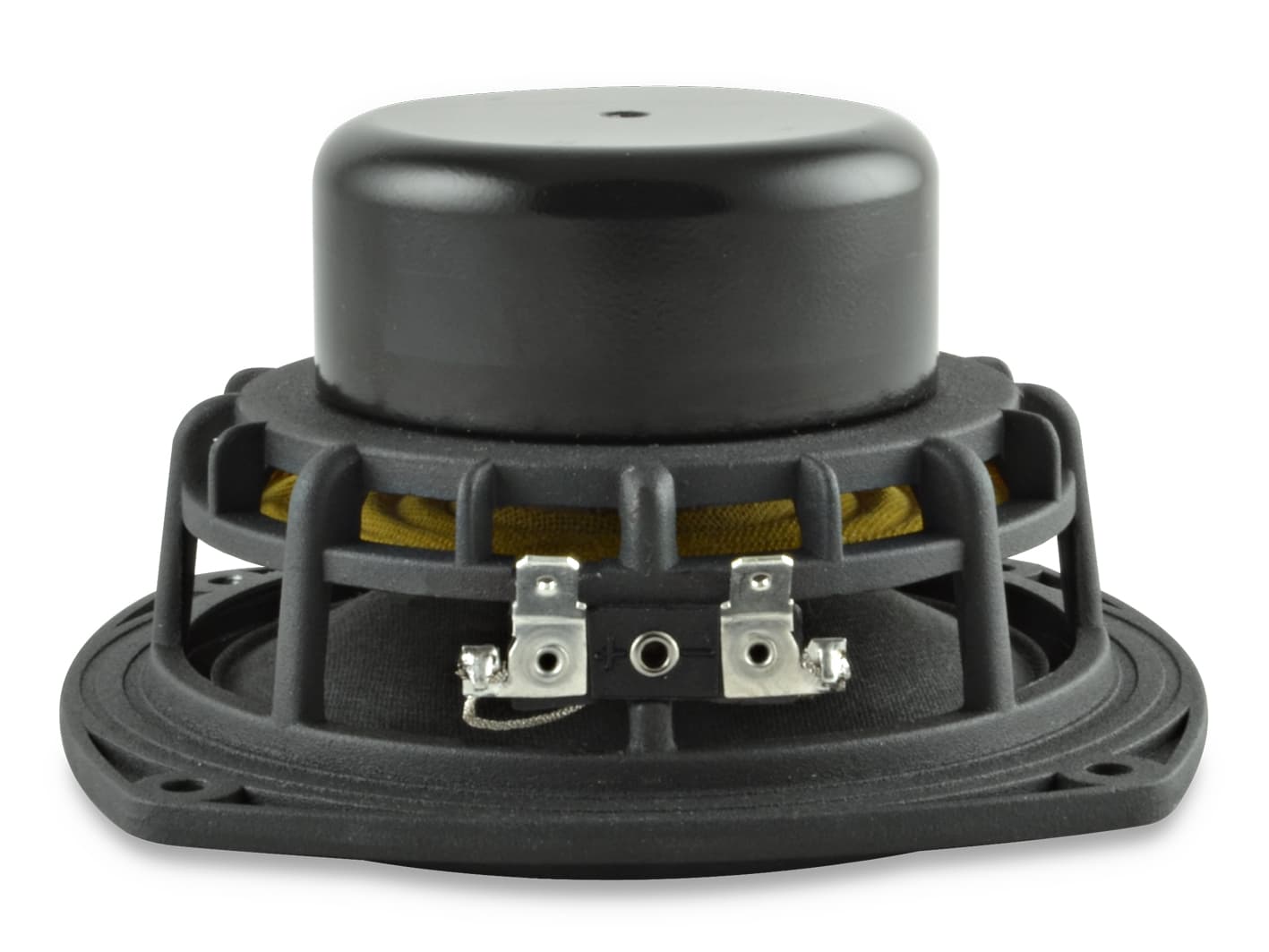

Sica 5 N 1.5 PL is a 5" 8 ohm LF driver rated at 130W RMS. The validated T/S data includes Fs 111Hz, Qts 0.56, Vas 3L, Xmax 3mm, sensitivity 89.5dB, plus 25cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
130W
Sensitivity
89.5dB
91.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
154
Vented alignment
Vd
25cm³
T/S Parameters
Valid
Fs111Hz
Qts0.56
Qes0.72
Qms2.5
Vas3.0L
Re5.7Ω
Le0.31mH
BL6.2Tm
Sd85cm²
Mms7g
Xmax3.0mm
SPL90dB
Power130W
Impedance8Ω
Voice Coil38mm
Flux Density1.14T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.8kg
Diameter132.0mm
Overall Depth72.0mm
Cutout Diameter113.0mm
Bolt Circle Diameter139.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
5 N 1.5 PL
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£14.72
Lavoce
WSF051.02
5"
Xmax3.1mm+3%
Qts0.6+7%
BL6.4Tm+3%
Vas3.3L+9%
Qes0.66-8%
Image unavailable
74%
Similarity
Wavecor
WF118WA06
4.5"
Xmax3mm0%
Qts0.55-2%
BL5.6Tm-10%
Vas3.5L+17%
Qes0.59-18%
70%
Similarity
£28.85
Lavoce
CSF051.21
5"
Xmax3.4mm+13%
Qts0.64+14%
BL5.9Tm-5%
Vas4.1L+36%
Qes0.74+3%
69%
Similarity
Dayton Audio
RS125T-8
5"
Xmax2.8mm-7%
Qts0.5-11%
BL5Tm-19%
Vas3.6L+19%
Qes0.61-15%
60%
Similarity
Monacor
SP-4/60PRO
4"
Xmax2.3mm-23%
Qts0.6+7%
BL5.8Tm-6%
Vas3L0%
Qes0.67-7%
54%
Similarity
£21.94
FaitalPRO
4FE32
4"
Xmax2.7mm-9%
Qts0.61+9%
BL4.8Tm-23%
Vas2.3L-23%
Qes0.7-3%
Image unavailable
54%
Similarity
Wavecor
WF120BD13
4.5"
Xmax3mm0%
Qts0.47-16%
BL5.3Tm-15%
Vas3.8L+27%
Qes0.5-31%
Image unavailable
51%
Similarity
Wavecor
WF120BD14
4.5"
Xmax3mm0%
Qts0.46-18%
BL5.3Tm-15%
Vas3.9L+30%
Qes0.49-32%
51%
Similarity
CIARE
PA100
4"
Xmax2.5mm-17%
Qts0.59+5%
BL4.4Tm-29%
Vas2.5L-17%
Qes0.7-3%
Image unavailable
48%
Similarity
Wavecor
WF118WA05
4.5"
Xmax3mm0%
Qts0.46-18%
BL4.3Tm-31%
Vas3.5L+17%
Qes0.49-32%
47%
Similarity
Wavecor
WF118WA02
4.5"
Xmax3mm0%
Qts0.44-21%
BL5.8Tm-7%
Vas4.3L+43%
Qes0.46-36%
47%
Similarity
HiVi
B4N
4"
Xmax3.2mm+7%
Qts0.52-7%
BL5.1Tm-18%
Vas4.5L+51%
Qes0.63-12%
