Overview
LF Driver
Tang Band

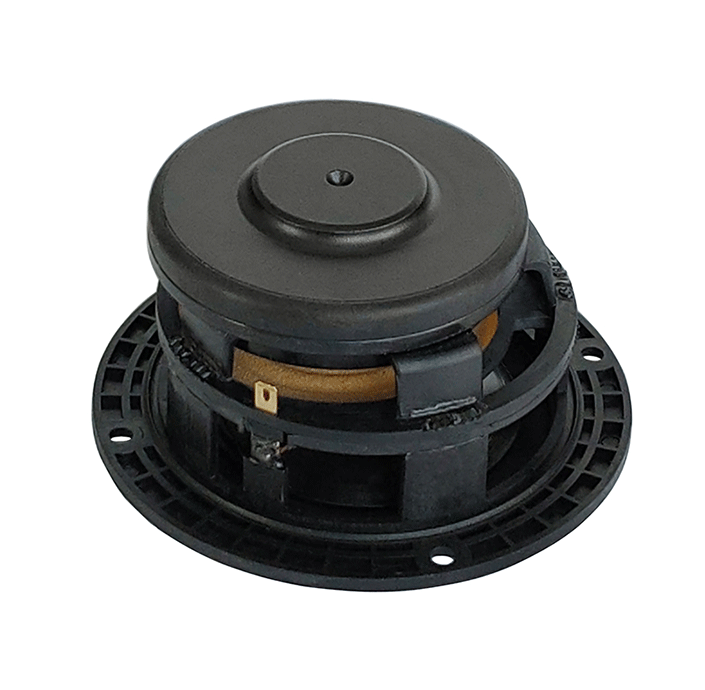

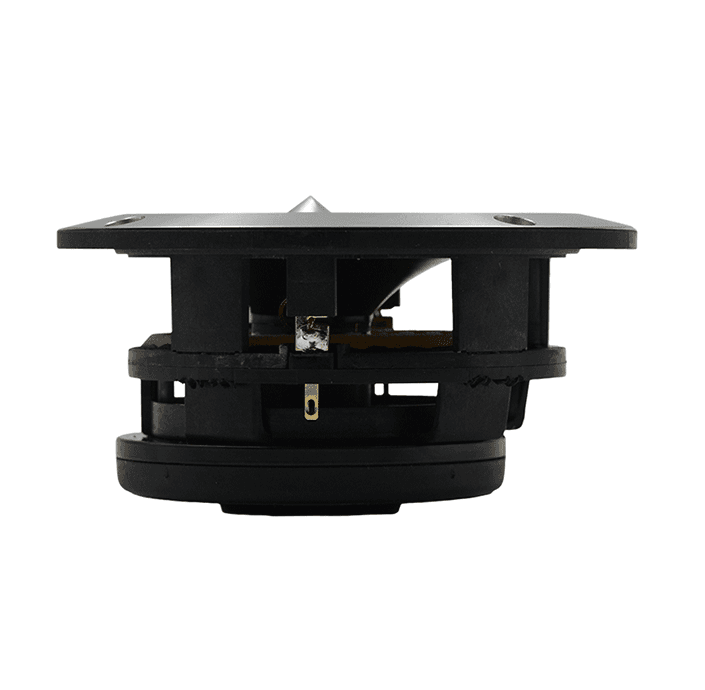

Tang Band W4-2356
Tang Band W4-2356 is a 4" 8 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 70Hz, Qts 0.45, Vas 4.0L, Xmax 3mm, sensitivity 85.7dB, plus 15cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
25W
Sensitivity
85.7dB
EBP
119
Vented alignment
Vd
15cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,457 selected pixels of 1,795
T/S Parameters
Valid
Fs70Hz
Qts0.45
Qes0.59
Qms1.8
Vas4.0L
Re6.8Ω
Le0.06mH
BL4.9Tm
Sd50cm²
Mms5g
Xmax3.0mm
SPL86dB
Power25W
Impedance8Ω
