Overview
LF DriverExcel series
SEAS
SEAS E0043-06S M15CH002
SEAS E0043-06S M15CH002 is a 5" 6 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 67Hz, Qts 0.40, Vas 6L, Xmax 3mm, sensitivity 87.4dB, plus 23cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
6Ω
RMS Power
70W
Sensitivity
87.4dB
88.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
129
Vented alignment
Vd
23cm³

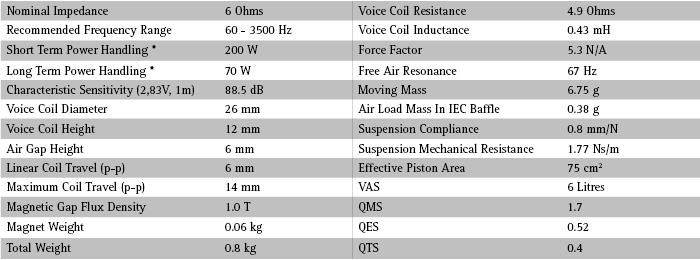

T/S Parameters
Valid
Fs67Hz
Qts0.40
Qes0.52
Qms1.7
Vas6.0L
Re4.9Ω
Le0.43mH
BL5.3Tm
Sd75cm²
Mms7g
Xmax3.0mm
SPL87dB
Power70W
Impedance6Ω
F Low60Hz
F High3500Hz
Voice Coil26mm
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

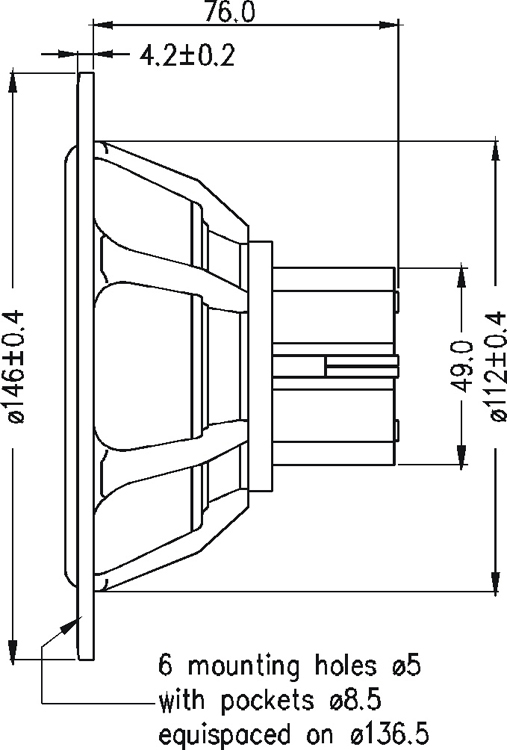

Dimensions & Physical
Weight0.8kg
