5-inch LF driver · AL series · 25 mm voice coil · 60 W
Visaton AL 130 M 8Ω
8 Ω
No current price
- Fs
- 57Hz
- Xmax
- 3mm
- SPL
- 87dB
- Pe
- 60W
- BL
- 5.6T·m
- Vd
- 24cm³
- Qts
- 0.46
- Vas
- 9L

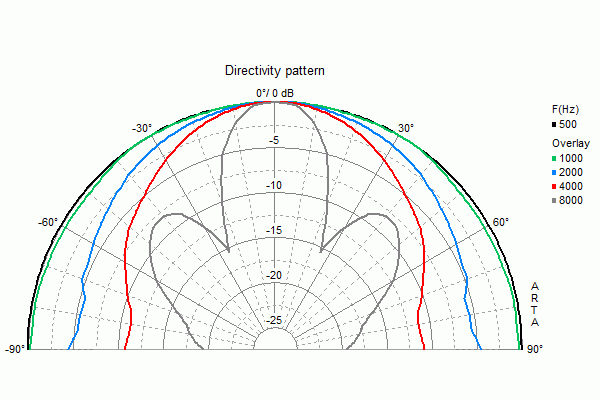

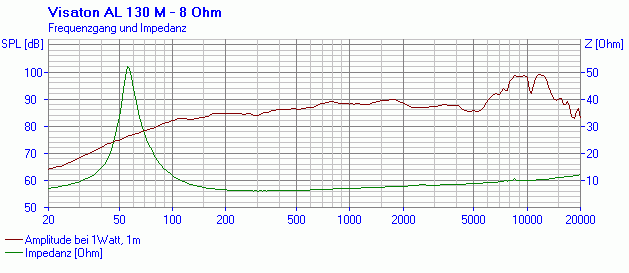

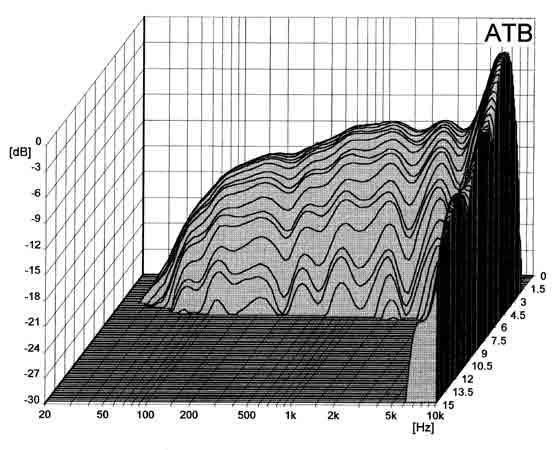

Published graphs
Visaton AL 130 M is a 5-inch 8 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 57 Hz, Qts 0.46, Vas 9.1 L, Xmax 3 mm, sensitivity 87.1 dB, plus 24 cm³ Vd and 110 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 57Hz
- Qts
- 0.46
- Qes
- 0.52
- Qms
- 4.4
- Vas
- 9.1L
- Re
- 5.4Ω
- Le
- 0.80mH
Motor and cone
- BL
- 5.6T·m
- Sd
- 79cm²
- Mms
- 7g
- Xmax Derived
- 3mm
- Vd †
- 24cm³
- Voice coil
- 25mm
- Flux density
- 0.95T
Power and response
- Sensitivity †
- 87.1dB
- Manufacturer sensitivity
- 90dB
- Power
- 60W
- Impedance
- 8Ω
- High limit
- 8000Hz
- Crossover
- 500Hz
- EBP †
- 110 · Leans vented
Size and mounting
- Diameter
- 130mm
- Cutout
- 115mm
- Weight
- 1kg
Other published values
- Xmech
- 5.5
- Power Peak
- 90
Sensitivity shows 87.1 dB, calculated from the T/S values. Visaton publishes 90.0 dB, 2.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Visaton lists
MF · Primary · 5″
- BL
- 5.6T·m
- Fs
- 57Hz
- Le
- 0.80mH
- Re
- 5.4Ω
- Sd
- 79cm²
- Mms
- 7g
- Qes
- 0.52
- Qms
- 4.4
- Qts
- 0.46
- SPL
- 87.1dB
- Vas
- 9.1L
- Xmax
- 3mm
- Xmech
- 5.5
- Power
- 60W
- Impedance
- 8Ω
- Power Peak
- 90
- Flux density
- 0.95T
- Sensitivity
- 90dB
- Calculated sensitivity †
- 87.1dB
- High limit
- 8000Hz
- Manufacturer sensitivity
- 90dB
- Voice coil
- 25mm
- Crossover
- 500Hz
- Weight
- 1kg
- Diameter
- 130mm
- Cutout
- 115mm
