Overview
LF Driver
Tang Band

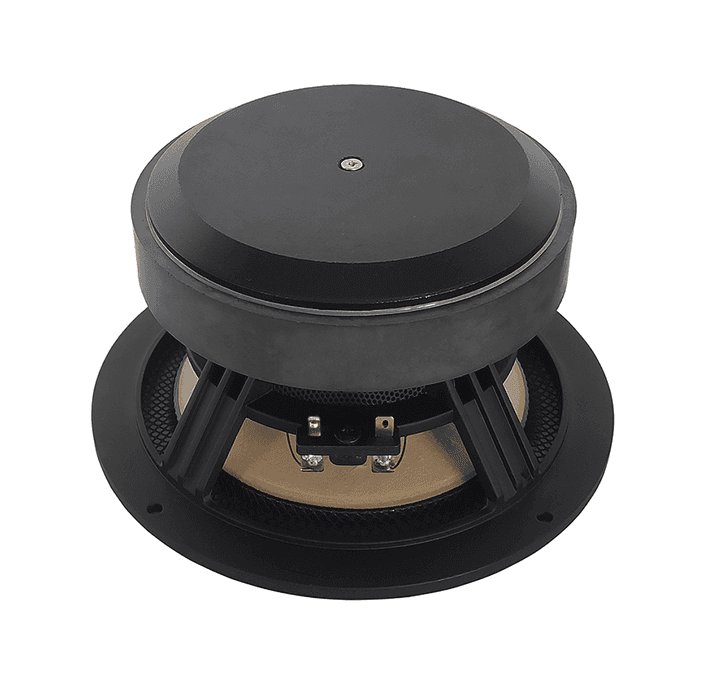

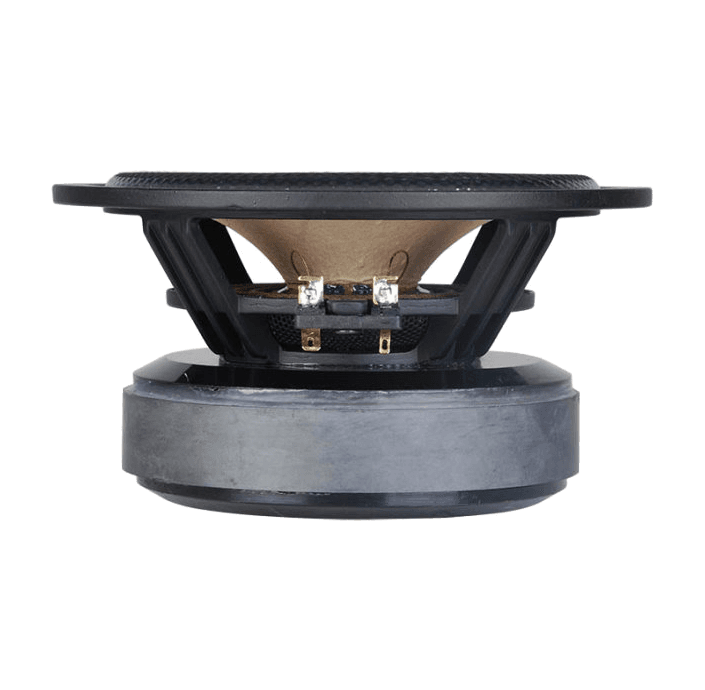

Tang Band W6-2144
Tang Band W6-2144 is a 6" 8 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 45Hz, Qts 0.45, Vas 34.6L, Xmax 3mm, sensitivity 89.1dB, plus 42cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
35W
Sensitivity
89.1dB
EBP
73
Either alignment
Vd
42cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,481 selected pixels of 1,701 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,603 selected pixels of 2,613
T/S Parameters
Valid
Fs45Hz
Qts0.45
Qes0.62
Qms1.7
Vas34.6L
Re6.8Ω
Le0.01mH
BL5.5Tm
Sd140cm²
Mms9g
Xmax3.0mm
SPL89dB
Power35W
Impedance8Ω
