Monacor SPH-174KE 8Ω
8 Ω · 3–8000 Hz
£34.80
SteadyWilmslow Audio · All 3 offers
- Fs
- 42Hz
- Xmax
- 3mm
- SPL
- 87dB
- Pe
- 50W
- BL
- 5.9T·m
- Vd
- 41cm³
- Qts
- 0.51
- Vas
- 26L
Monacor SPH-174KE is a 6.5-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.51, Vas 26 L, Xmax 3 mm, sensitivity 86.8 dB, plus 41 cm³ Vd and 66 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £29.31.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.51
- Qes
- 0.64
- Qms
- 2.6
- Vas
- 26L
- Re
- 6.4Ω
- Le
- 0.43mH
Motor and cone
- BL
- 5.9T·m
- Sd
- 137cm²
- Mms
- 14g
- Xmax
- 3mm
- Vd †
- 41cm³
- Voice coil
- 25mm

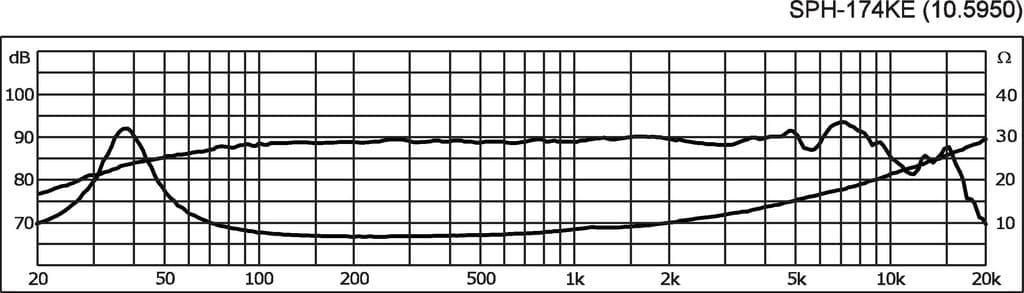

Power and response
- Sensitivity †
- 86.8dB
- Manufacturer sensitivity
- 88dB
- Power
- 50W
- Impedance
- 8Ω
- Range
- 3–8000Hz
- EBP †
- 66 · Sealed or vented

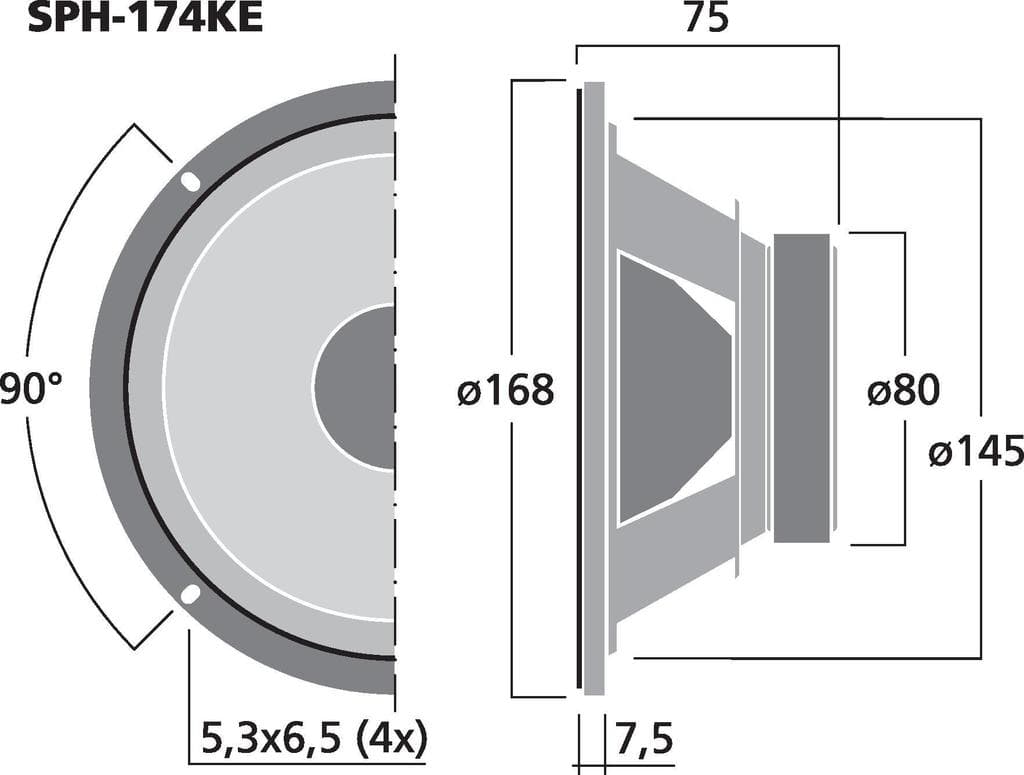

Size and mounting
- Diameter
- 168mm
- Cutout
- 145mm
- Depth
- 75mm
- Weight
- 0.8kg
Other published values
- Cms
- 0.98mm/N
- Power Peak
- 100
Other dimensions
- Mounting Depth
- 68
Sensitivity shows 86.8 dB, calculated from the T/S values. Monacor publishes 88.0 dB, 1.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 6.5″
- BL
- 5.9T·m
- Fs
- 42Hz
- Le
- 0.43mH
- Re
- 6.4Ω
- Sd
- 137cm²
- Cms
- 0.98mm/N
- Mms
- 14g
- Qes
- 0.64
- Qms
- 2.6
- Qts
- 0.51
- SPL
- 86.8dB
- Vas
- 26L
- Xmax
- 3mm
- Power
- 50W
- Impedance
- 8Ω
- Power Peak
- 100
- Sensitivity
- 88dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 86.8dB
- High limit
- 8000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 25mm
- Weight
- 0.8kg
- Diameter
- 168mm
- Depth
- 75mm
- Mounting Depth
- 68
- Cutout
- 145mm
02
Compare
Same-size drivers, compared with the SPH-174KE. Clear differences are green when better and red when worse.
This driverSPH-174KE
Best price
£29.31
Fs
42 Hz
Qts
0.51
Vas
26 L
BL
5.9 T·m
Xmax
3 mm
Sensitivity
86.8 dB
Power
50 W

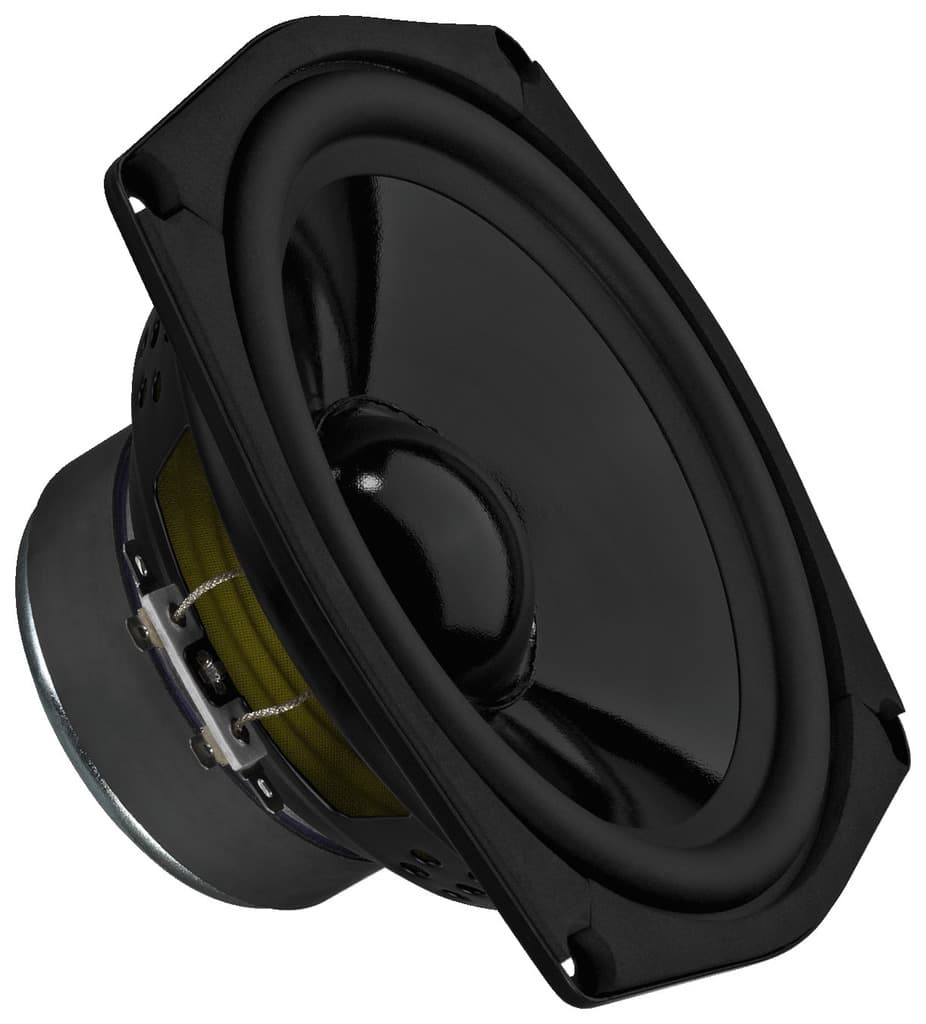

MonacorSPM-165/8
