Overview
LF Driver
Tang Band

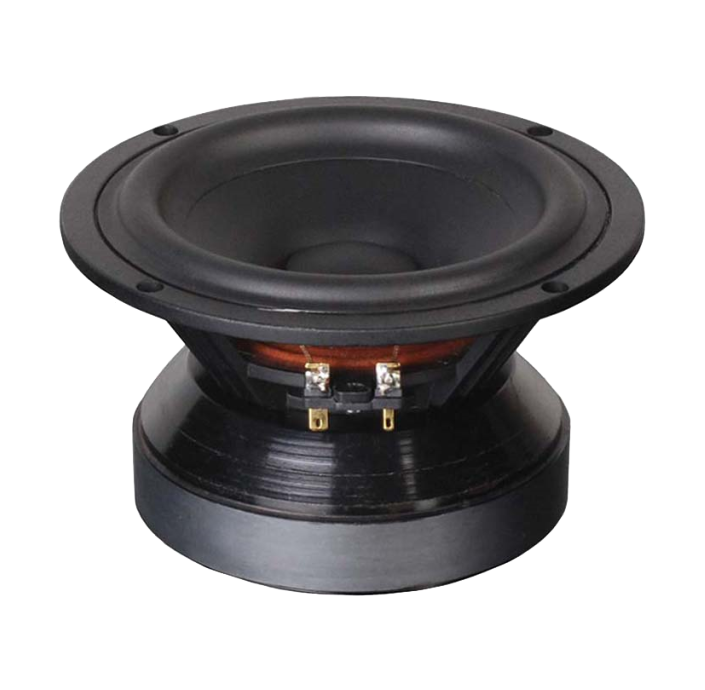

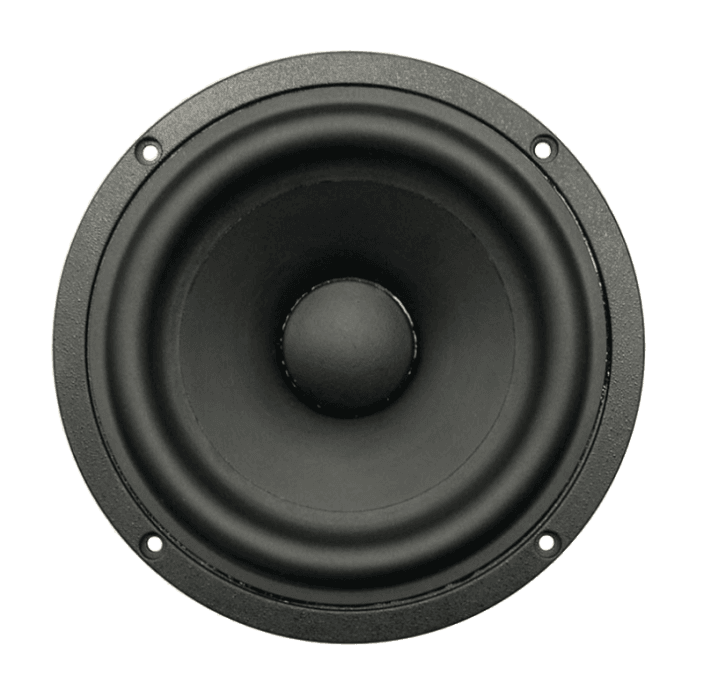

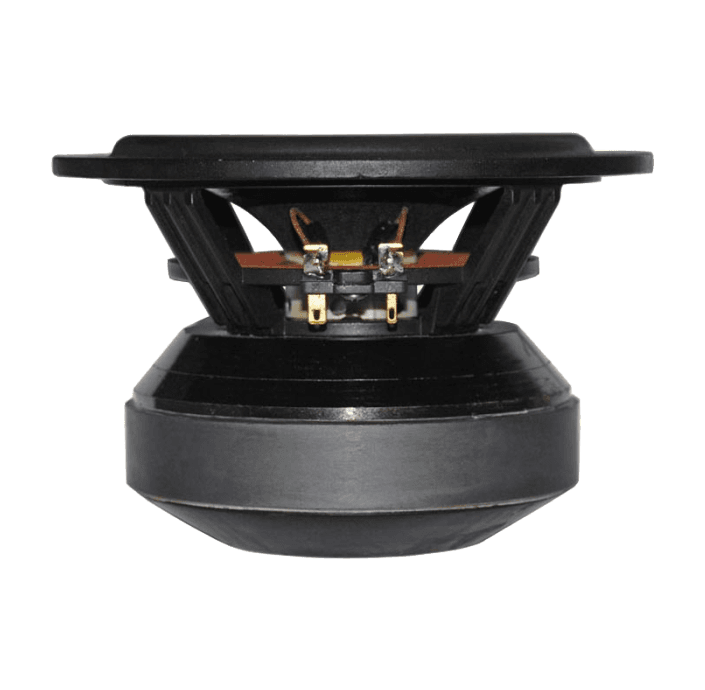

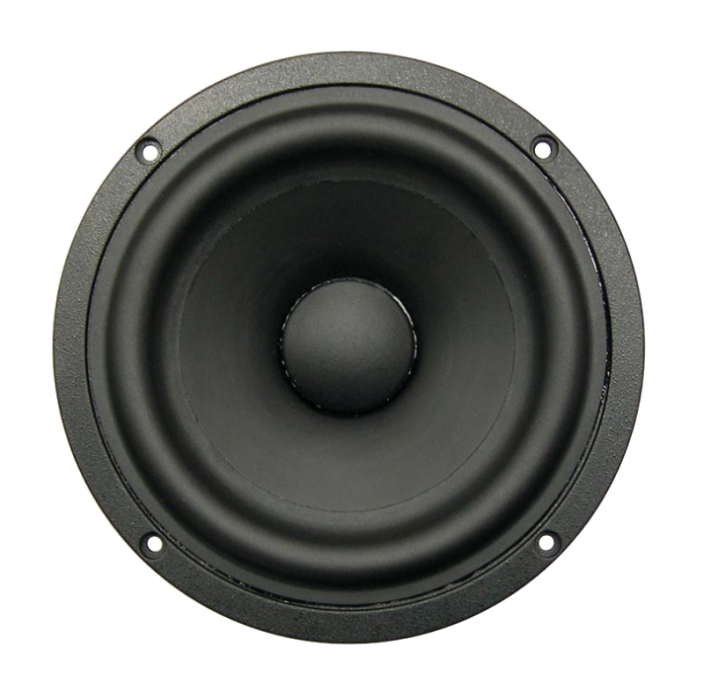

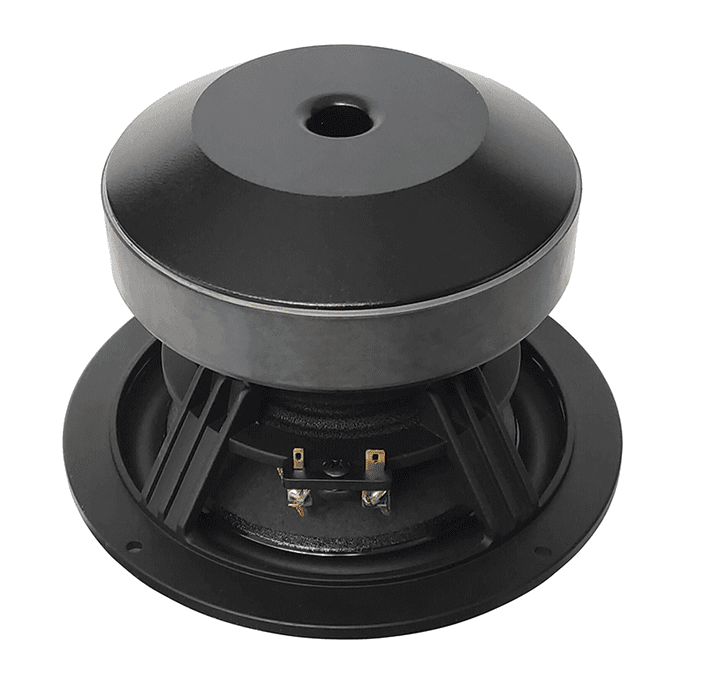

Tang Band W6-1721
Tang Band W6-1721 is a 6" 4 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 40Hz, Qts 0.43, Vas 29.4L, Xmax 8mm, sensitivity 87.9dB, plus 112cm³ Vd and 82 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
RMS Power
50W
Sensitivity
87.9dB
EBP
82
Either alignment
Vd
112cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence717 selected pixels of 2,297 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,043 selected pixels of 2,614
T/S Parameters
Valid
Fs40Hz
Qts0.43
Qes0.49
Qms3.6
Vas29.4L
Re3.4Ω
Le0.08mH
BL5.1Tm
Sd140cm²
Mms15g
Xmax8.0mm
SPL88dB
Power50W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
