Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMonacor SP-167E 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverSP series
Monacor

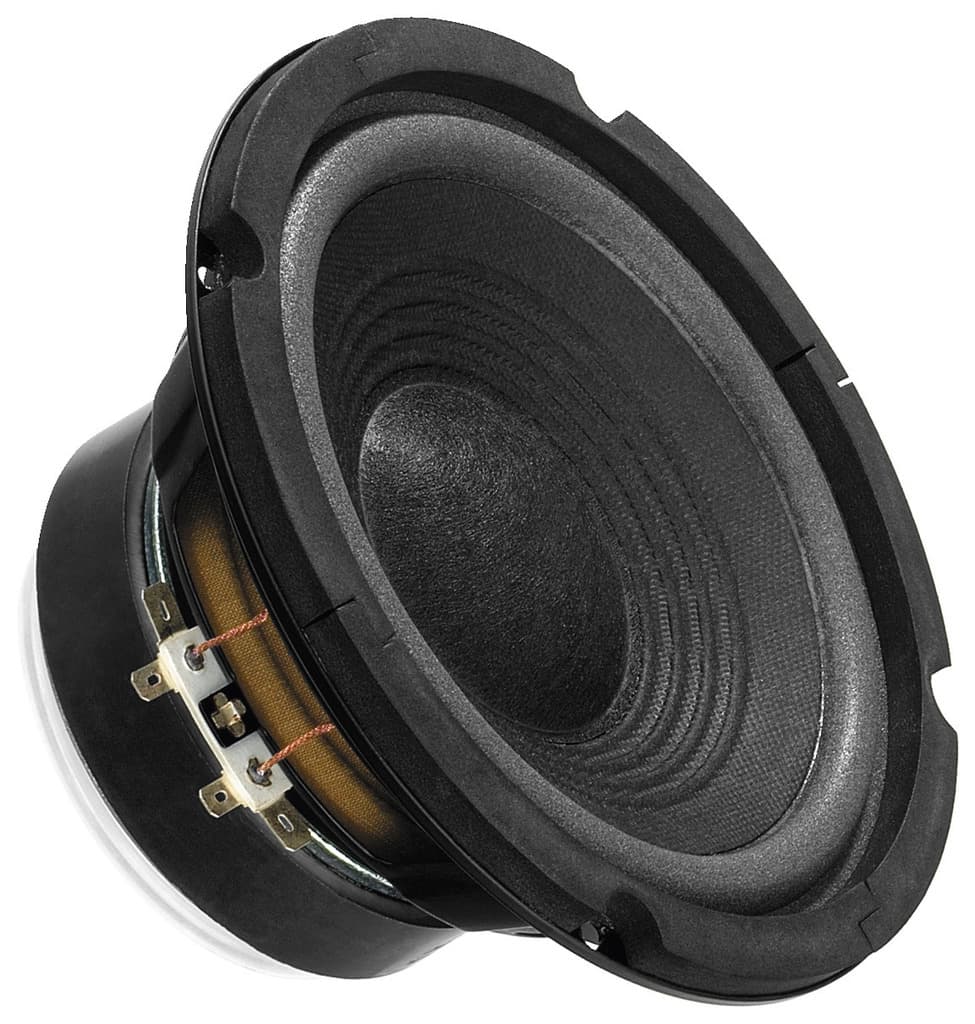

Monacor SP-167E
Monacor SP-167E is a 6.5" 4 ohm LF driver rated at 35W RMS. The validated T/S data includes Fs 62Hz, Qts 0.41, Vas 17.9L, Xmax 2.5mm, sensitivity 91.5dB, plus 34cm³ Vd and 129 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
35W
Sensitivity
91.5dB
EBP
129
Vented alignment
Vd
34cm³
T/S Parameters
Valid
Fs62Hz
Qts0.41
Qes0.48
Qms2.8
Vas17.9L
Re3.9Ω
Le0.60mH
BL5.4Tm
Sd135cm²
Mms9g
Xmax2.5mm
SPL92dB
Power35W
Impedance4Ω
F Low3Hz
F High6000Hz
Voice Coil26mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

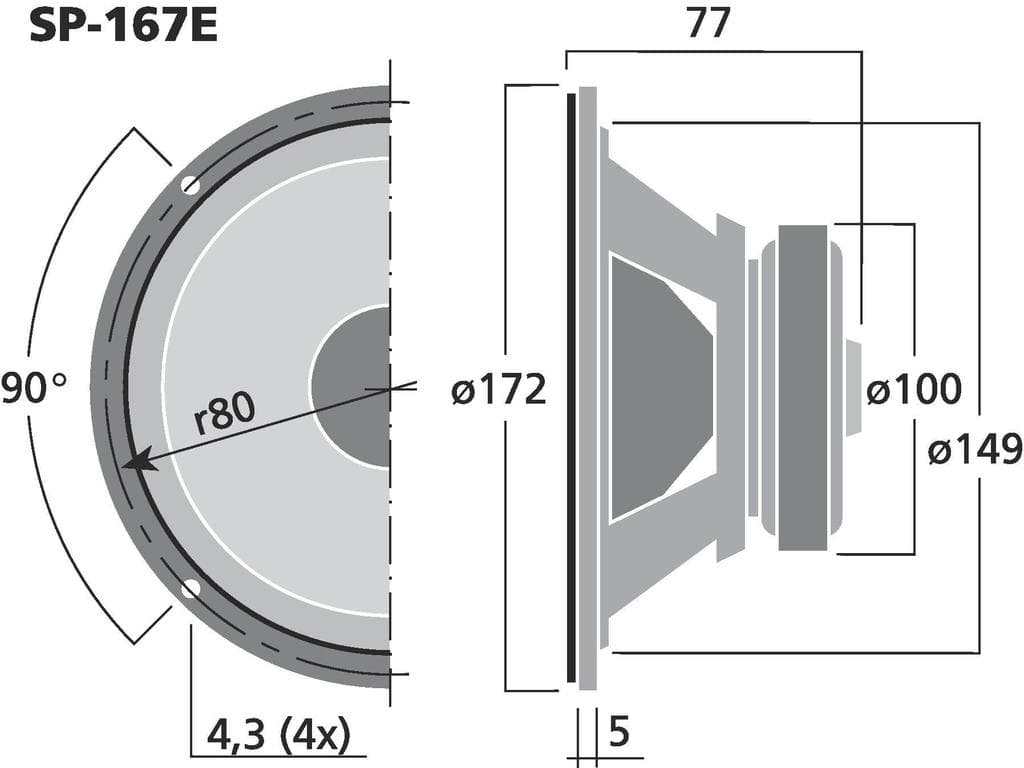

Dimensions & Physical
Weight1.2kg
Diameter172.0mm
Overall Depth77.0mm
Cutout Diameter149.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Monacor
SP-167E
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
71%
Similarity
Wavecor
WF168WA01
6.5"
Xmax3mm+20%
Qts0.43+5%
BL5.1Tm-6%
Vas24.6L+37%
Qes0.46-4%
Image unavailable
66%
Similarity
Wavecor
WF168WA05
6.5"
Xmax3mm+20%
Qts0.42+2%
BL5Tm-8%
Vas27.7L+55%
Qes0.45-6%
66%
Similarity
£71.95
Scanspeak
18W/8424G00
7"
Xmax2.6mm+4%
Qts0.45+10%
BL6.6Tm+22%
Vas20.3L+13%
Qes0.51+6%
66%
Similarity
Wavecor
WF166TU02
6.5"
Xmax3mm+20%
Qts0.48+17%
BL5Tm-8%
Vas22.3L+25%
Qes0.5+4%
64%
Similarity
£71.95
Scanspeak
18W/4424G00
7"
Xmax2.8mm+12%
Qts0.38-7%
BL5.2Tm-4%
Vas24.1L+35%
Qes0.42-12%
58%
Similarity
Wavecor
WF146WA01
5.75"
Xmax3mm+20%
Qts0.42+2%
BL5.1Tm-6%
Vas10L-44%
Qes0.45-6%
Image unavailable
57%
Similarity
Wavecor
WF146WA05
5.75"
Xmax3mm+20%
Qts0.38-7%
BL5Tm-8%
Vas15.2L-15%
Qes0.4-17%
50%
Similarity
Wavecor
WF146WA06
5.75"
Xmax3mm+20%
Qts0.36-12%
BL6.3Tm+16%
Vas16.6L-7%
Qes0.38-21%
47%
Similarity
Scanspeak
15M/8631G00
6"
Xmax3mm+20%
Qts0.35-15%
BL6.8Tm+25%
Vas16.2L-9%
Qes0.37-23%
Image unavailable
45%
Similarity
Wavecor
WF168WA06
6.5"
Xmax3mm+20%
Qts0.5+22%
BL6.4Tm+18%
Vas27.7L+55%
Qes0.54+13%
42%
Similarity
£34.80

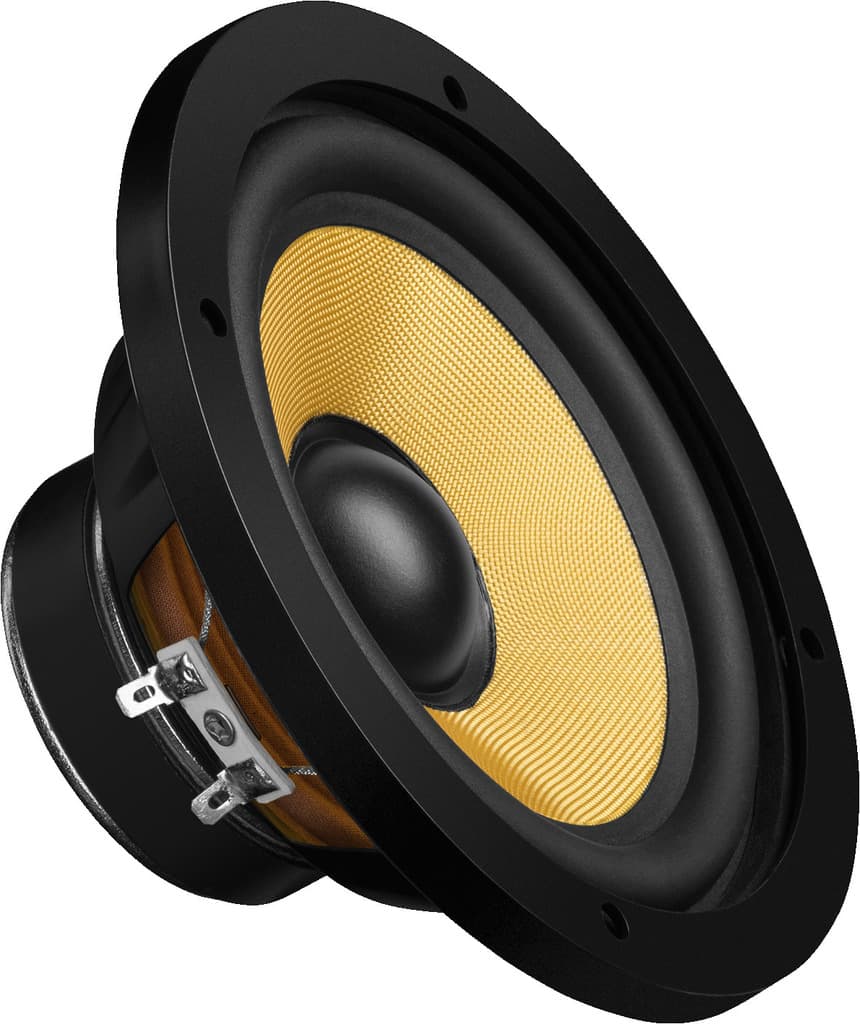

Monacor
SPH-174KE
6.5"
Xmax3mm+20%
Qts0.51+24%
BL5.9Tm+9%
Vas26L+45%
Qes0.64+33%
34%
Similarity
Wavecor
WF146WA02
5.75"
Xmax3mm+20%
Qts0.51+24%
BL6.4Tm+18%
Vas10L-44%
Qes0.54+13%
