LF Driver6MDN series
B&C
B&C 6MDN44
B&C 6MDN44 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 140Hz, Qts 0.40, Vas 2.7L, Xmax 2.5mm, sensitivity 94.1dB, plus 33cm³ Vd and 304 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £96.40.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.1dB
96.5dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
304
Vented alignment
Vd
33cm³

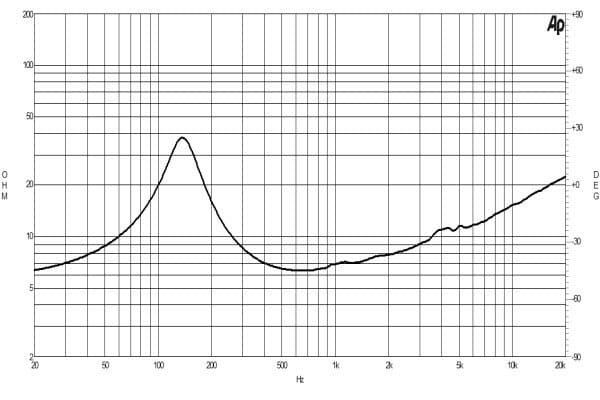

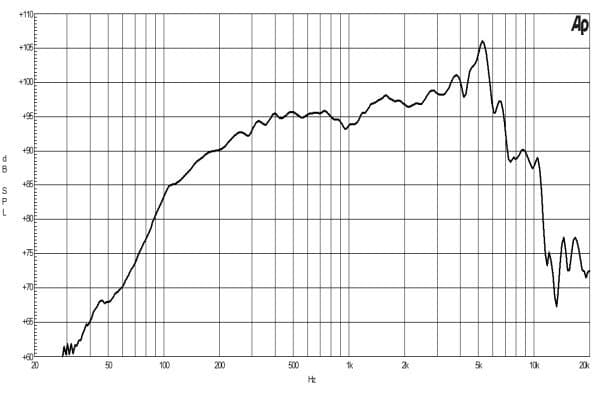

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs140Hz
Qts0.40
Qes0.46
Qms2.8
Vas2.7L
Re5.4Ω
Le0.47mH
BL11.0Tm
Sd132cm²
Mms11g
Xmax2.5mm
SPL94dB
Power200W
Power Nominal200W
Impedance8Ω
Min Impedance6.5Ω
F Low150Hz
F High6000Hz
Voice Coil44mm
Flux Density1.45T
Pricing & availability
Price definitionsPrice movement
Best current price
£96.40
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter187.0mm
Overall Depth73.0mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
Additional Manufacturer Specs
Bl11 Tm
Fs140 Hz
Le0.47 mH
Re5.4 Ω
Sd132 cm² (20.5 in²)
Ebp304 Hz
Mms11 g
Qes0.46
Qms2.8
Qts0.4
Vas2.7 dm³ (0.09 ft³)
η01.6 %
ConeRCK06MDN448
Xmax2.5 mm
Xvar3 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth10 mm (0.37 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Ring
Nominal Diameter170 mm (6.5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.25 in)
Bolt Circle Diameter172 mm (6.7 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter145 mm (5.7 in)
Flange And Gasket Thickness11 mm (0.4 in)
Air Volume Occupied By Driver0.6 dm³ (0.02 ft³)
