6.5-inch LF driver · 6MDN series · 44 mm voice coil · 200 W
B&C 6MDN44 16Ω
150–6000 Hz
£96.40
SteadyJP Leisure · In stock · All 4 offers
- Fs
- 138Hz
- Xmax
- 3mm
- SPL
- 93dB
- Pe
- 200W
- BL
- 14.5T·m
- Vd
- 40cm³
- Qts
- 0.47
- Vas
- 3L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL

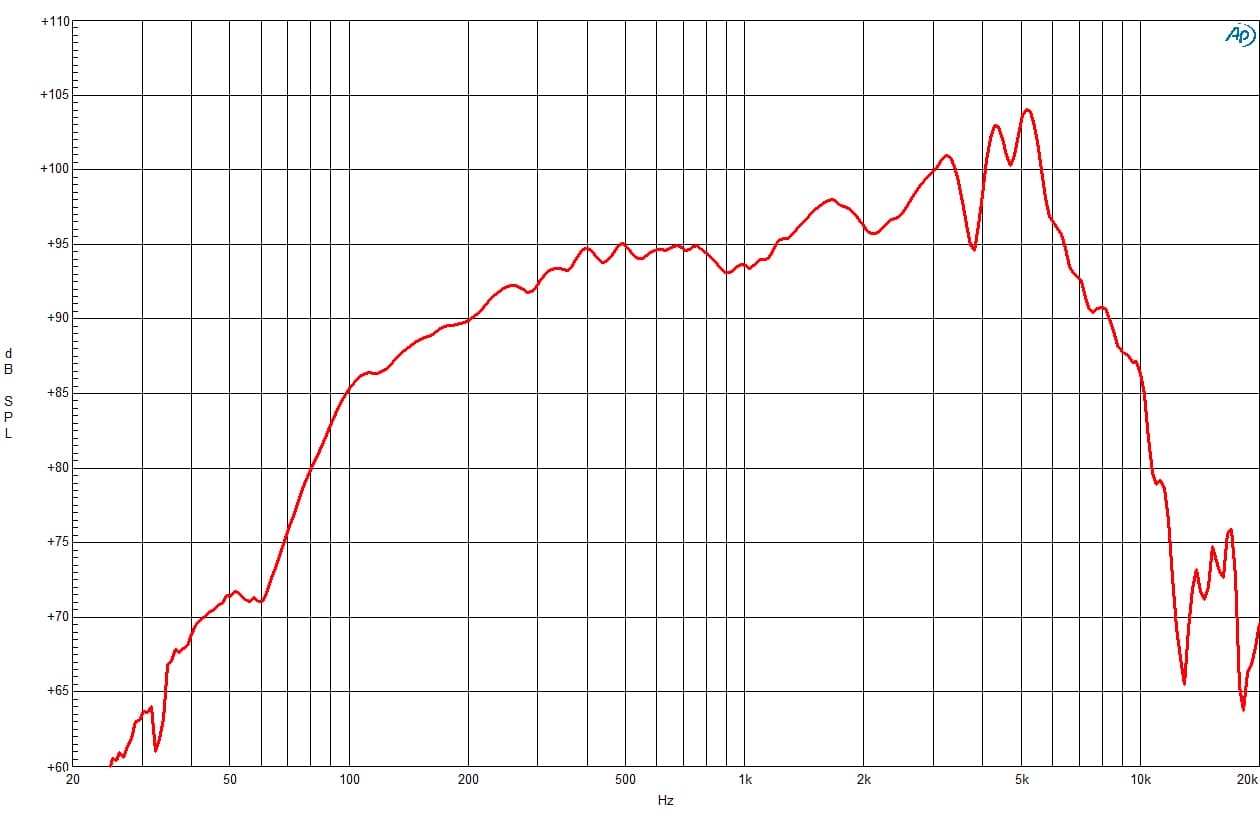

Frequency response
240 plotted pointsSource file SHA-256 85ae11a9c33b…Medium confidence6,112 selected pixels of 6,112 - Trace datasheet-response-trace-poc/v2
free-air impedance

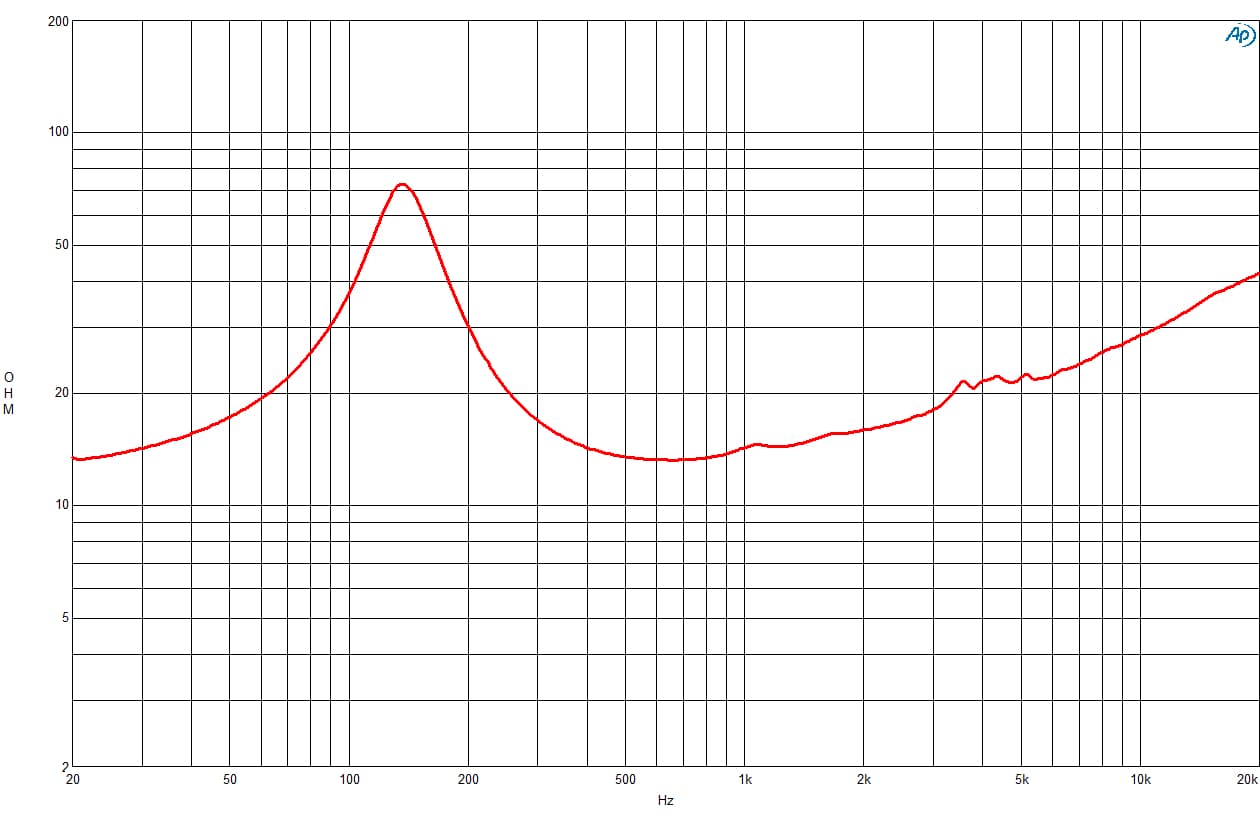

Impedance response
240 plotted pointsSource file SHA-256 85ae11a9c33b…Medium confidence3,295 selected pixels of 3,295
Published graphs
B&C 6MDN44 is a 6.5-inch 16 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 138 Hz, Qts 0.47, Vas 2.8 L, Xmax 3 mm, sensitivity 93.2 dB, plus 40 cm³ Vd and 246 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £95.07.
The published T/S values agree with each other
Thiele/Small
- Fs
- 138Hz
- Qts
- 0.47
- Qes
- 0.56
- Qms
- 3
- Vas
- 2.8L
- Re
- 11.8Ω
- Le
- 0.56mH
Motor and cone
- BL
- 14.5T·m
- Sd
- 132cm²
- Mms
- 12g
- Xmax
- 3mm
- Vd †
- 40cm³
- Voice coil
- 44mm
- Flux density
- 1.45T
Power and response
- Sensitivity †
- 93.2dB
- Manufacturer sensitivity
- 97dB
- Power
- 200W
- Nominal power
- 200W
- Impedance
- 16Ω
- Min. impedance
- 12.4Ω
- Range
- 150–6000Hz
- EBP †
- 246 · Leans vented
Size and mounting
- Diameter
- 187mm
- Cutout
- 145mm
- Bolt circle
- 172mm
- Depth
- 73mm
- Weight
- 1kg
Sensitivity shows 93.2 dB, calculated from the T/S values. B&C publishes 97.0 dB, 3.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 14.5T·m
- Fs
- 138Hz
- Le
- 0.56mH
- Re
- 11.8Ω
- Sd
- 132cm²
- Mms
- 12g
- Qes
- 0.56
- Qms
- 3
- Qts
- 0.47
- SPL
- 93.2dB
- Vas
- 2.8L
- Xmax
- 3mm
- Power
- 200W
- Impedance
- 16Ω
- Flux density
- 1.45T
- Sensitivity
- 97dB
- Low limit
- 150Hz
- Nominal power
- 200W
- Calculated sensitivity †
- 93.2dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 97dB
- Min. impedance
- 12.4Ω
- Voice coil
- 44mm
- Weight
- 1kg
- Diameter
- 187mm
- Depth
- 73mm
- Cutout
- 145mm
- Bolt circle
- 172mm
- Bl
- 14.5 Tm
- Fs
- 138 Hz
- Le
- 0.56 mH
- Re
- 11.8 Ω
- Sd
- 132 cm² (20.5 in²)
- Ebp
- 246 Hz
- Mms
- 12 g
- Qes
- 0.56
- Qms
- 3
- Qts
- 0.47
- Vas
- 2.8 dm³ (0.1 ft³)
- Η0
- 1.76 %
- Cone
- RCK06MDN4416
- Xmax
- 3 mm
- Xvar
- 4 mm
- Depth
- 73 mm (2.9 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 1 kg (1.2 lb)
- Pole design
- T-Pole
- Sensitivity
- 97 dB
- Flux density
- 1.45 T
- Shipping box
- 210x210x125 mm (8.27x8.27x4.92 in)
- Winding depth
- 10 mm (0.39 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 150 Hz - 6000 Hz
- Magnet material
- Neodymium Ring
- Shipping weight
- 1.2 kg (2.65 lb)
- Nominal diameter
- 170 mm (6.5 in)
- Overall diameter
- 187 mm (7.4 in)
- Winding material
- Aluminium
- Minimum impedance
- 12.4 Ω
- Nominal impedance
- 16 Ω
- Magnetic gap depth
- 6 mm (0.25 in)
- Voice coil diameter
- 44 mm (1.7 in)
- Bolt circle diameter
- 172 mm (6.7 in)
- Woofer cone treatment
- WP Waterproof Front Side
- Baffle cutout diameter
- 145 mm (5.7 in)
- Nominal power handling
- 200 W
- Continuous power handling
- 400 W
- Flange and gasket thickness
- 11 mm (0.4 in)
- Air volume occupied by driver
- 0.6 dm³ (0.02 ft³)
02
