Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCelestion CF0617M 8Ω
LF DriverMedia
Auto-advancing
Overview
LF DriverCF0617 series
Celestion

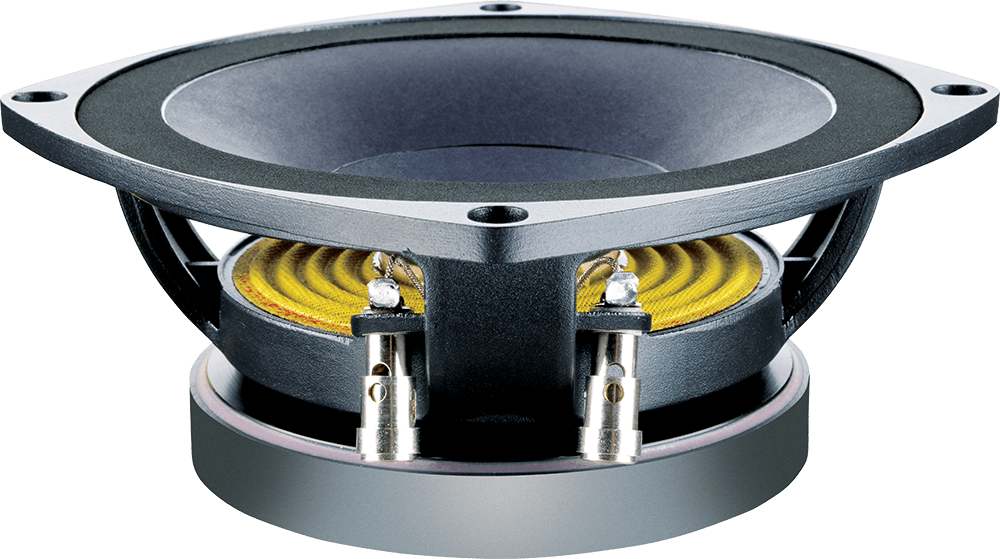

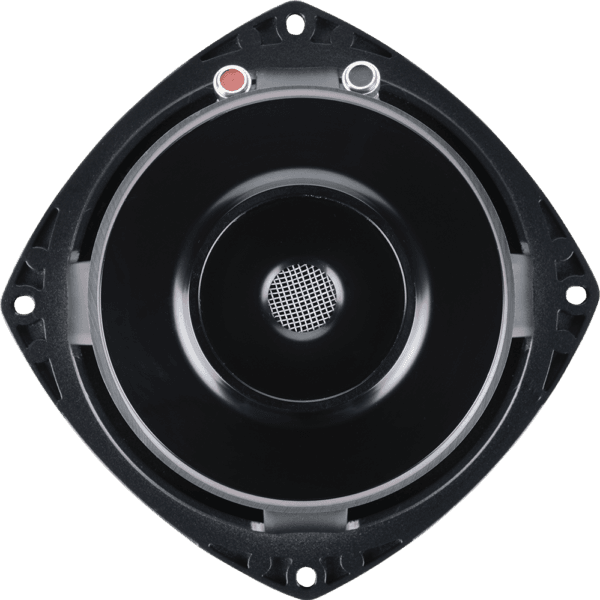

Celestion CF0617M
Celestion CF0617M is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 117Hz, Qts 0.45, Vas 5.4L, Xmax 2.7mm, sensitivity 94.5dB, plus 42cm³ Vd and 242 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £71.00.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.5dB
96.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
242
Vented alignment
Vd
42cm³

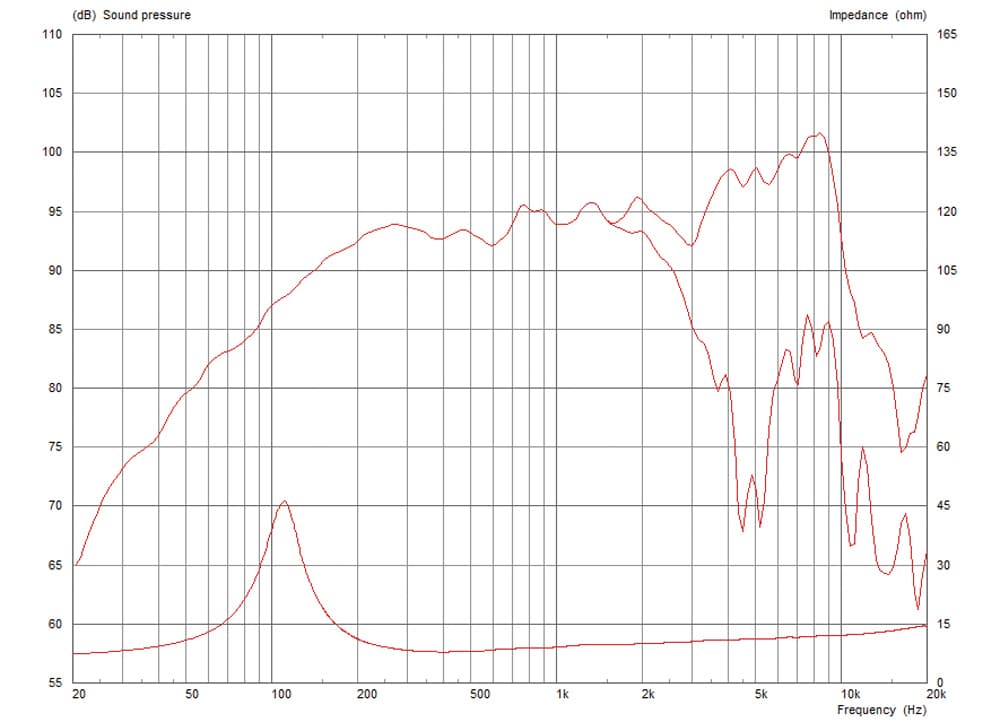

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence179 selected pixels of 432
T/S Parameters
Valid
Fs117Hz
Qts0.45
Qes0.48
Qms6.9
Vas5.4L
Re5.3Ω
Le1.73mH
BL9.7Tm
Sd154cm²
Mms12g
Xmax2.7mm
SPL95dB
Power200W
Impedance8Ω
Voice Coil45mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
thomann
£71.00
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Diameter189.0mm
Overall Depth78.5mm
Cutout Diameter150.0mm
Bolt Circle Diameter175.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
CF0617M
6.5"
Best current price
£71.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
58%
Similarity
54% cheaper£32.65

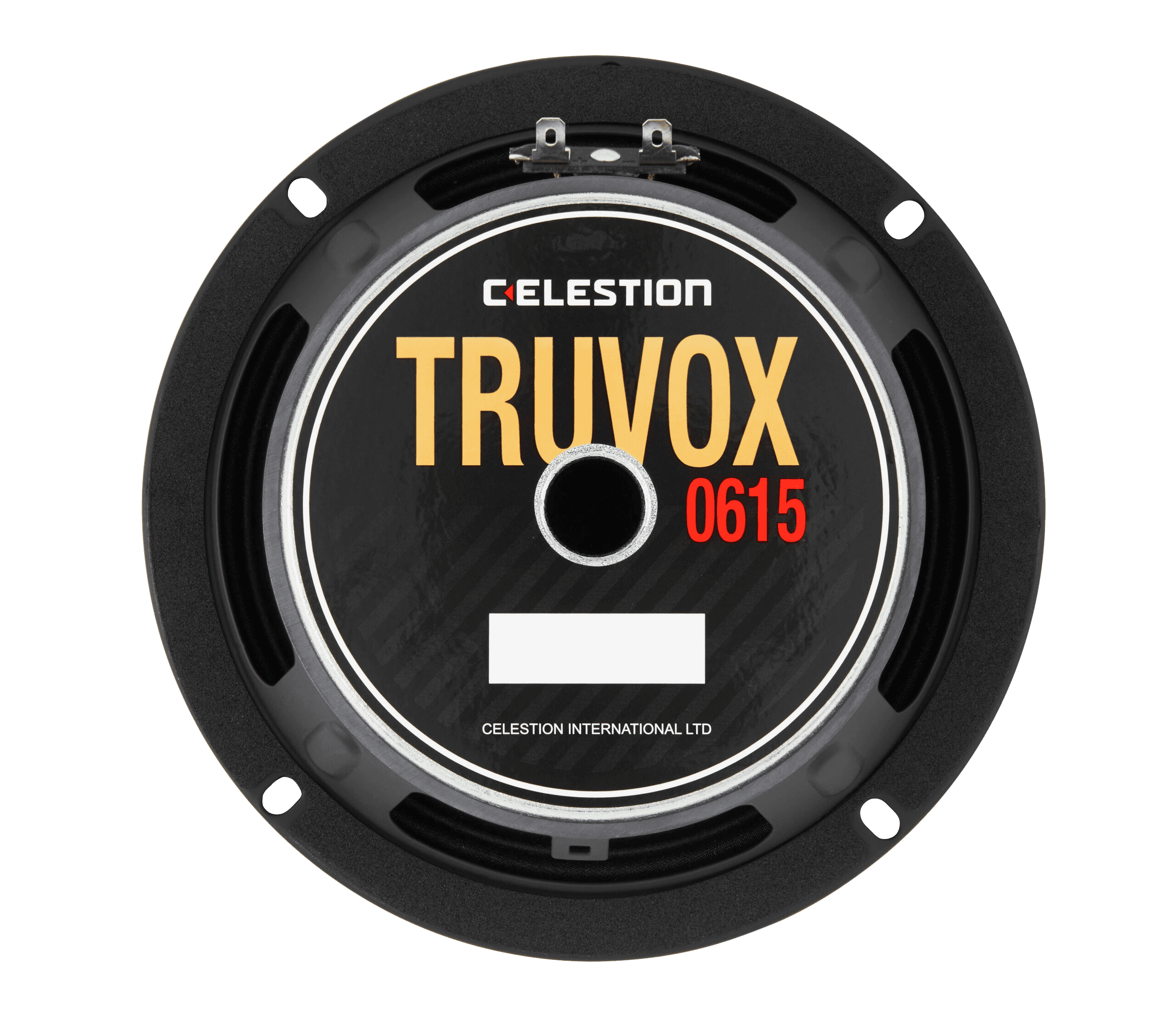

Celestion
TRUVOX 0615
6.5"
Lower price
Xmax3.5mm+30%
Qts0.47+5%
BL8Tm-17%
Vas7.4L+38%
Qes0.52+7%
58%
Similarity
43% cheaper£40.47

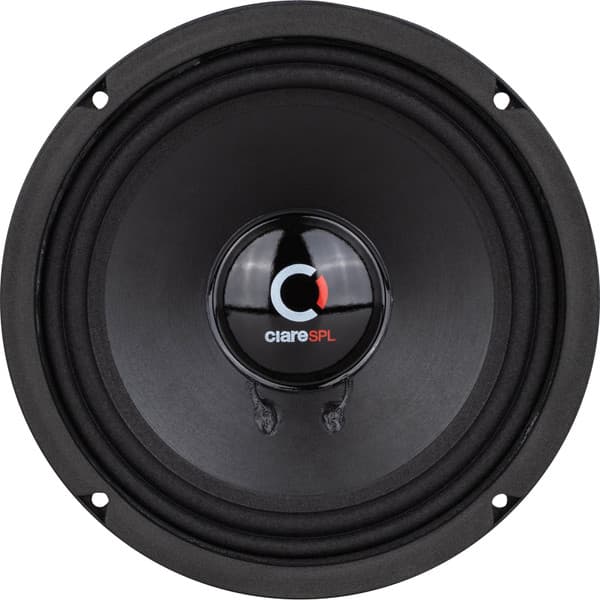

CIARE
CME160
6.5"
Lower price
Xmax3.5mm+30%
Qts0.4-11%
BL7.6Tm-21%
Vas4.5L-17%
Qes0.45-6%
68%
Similarity
29% cheaper£50.51

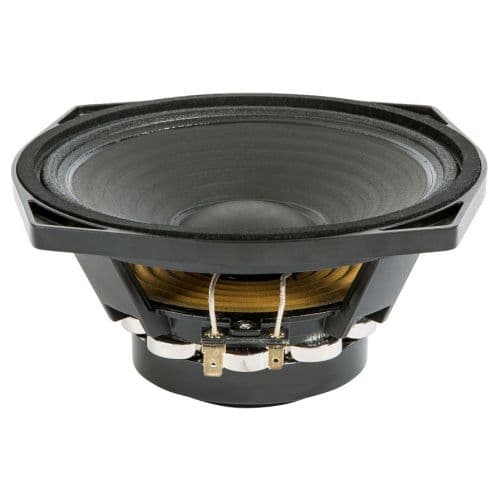

CIARE
NDI6
6.5"
Lower price
Xmax3mm+11%
Qts0.46+2%
BL10.5Tm+8%
Vas2.5L-54%
Qes0.54+12%
56%
Similarity
19% cheaper£57.54
Eminence
ALPHA 6C
6"
Lower price
Xmax3.5mm+30%
Qts0.450%
BL6.4Tm-34%
Vas5.7L+6%
Qes0.49+2%
40%
Similarity
19% cheaper£57.54
Eminence
ALPHA-6A
6"
Lower price
Xmax3.5mm+30%
Qts0.54+20%
BL8Tm-17%
Vas5.8L+8%
Qes0.6+25%
61%
Similarity
12% cheaper£62.80
FaitalPRO
6PR110
6"
Lower price
Xmax2.8mm+2%
Qts0.53+18%
BL8.5Tm-12%
Vas5.6L+4%
Qes0.6+25%
66%
Similarity
11% more£79.00

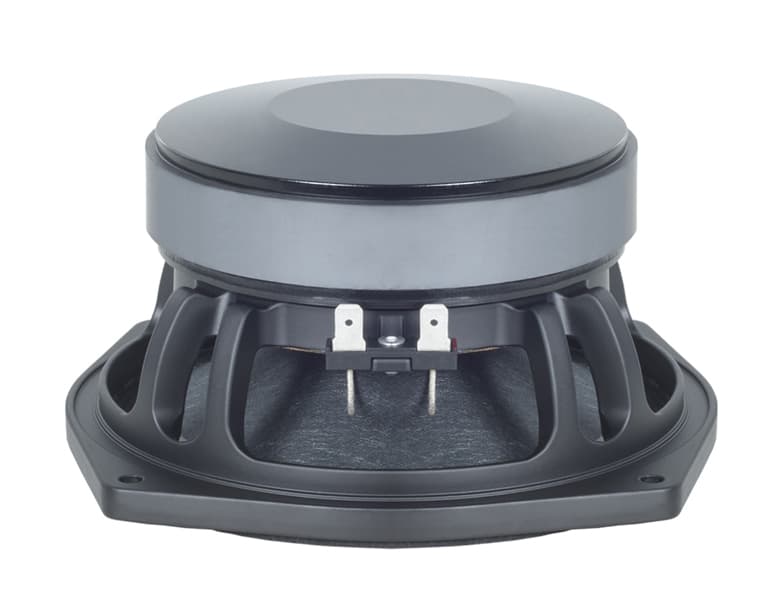

B&C
6MD38
6.5"
Higher price
Xmax2mm-26%
Qts0.44-2%
BL10.5Tm+8%
Vas3L-44%
Qes0.49+2%
70%
Similarity
18% more£84.13
FaitalPRO
6PR122
6"
Higher price
Xmax2.8mm+2%
Qts0.39-14%
BL10.5Tm+8%
Vas4.7L-13%
Qes0.44-9%
51%
Similarity
20% more£85.46
FaitalPRO
6PR150
6"
Higher price
Xmax2.6mm-2%
Qts0.34-25%
BL11.6Tm+20%
Vas4.9L-9%
Qes0.35-27%
64%
Similarity
22% more£86.62

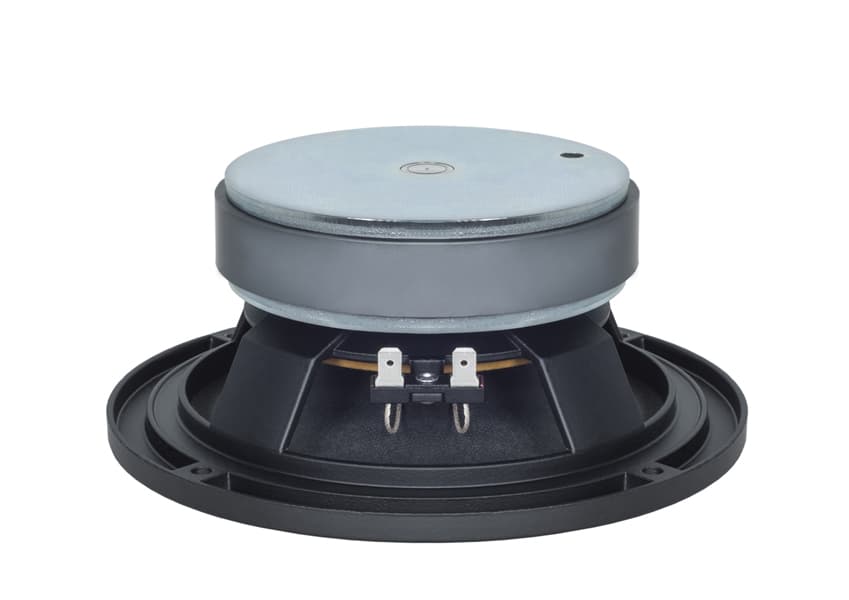

B&C
6PEV13
6.5"
Higher price
Xmax2.5mm-7%
Qts0.36-20%
BL8.2Tm-15%
Vas6L+11%
Qes0.39-19%
66%
Similarity
36% more£96.40

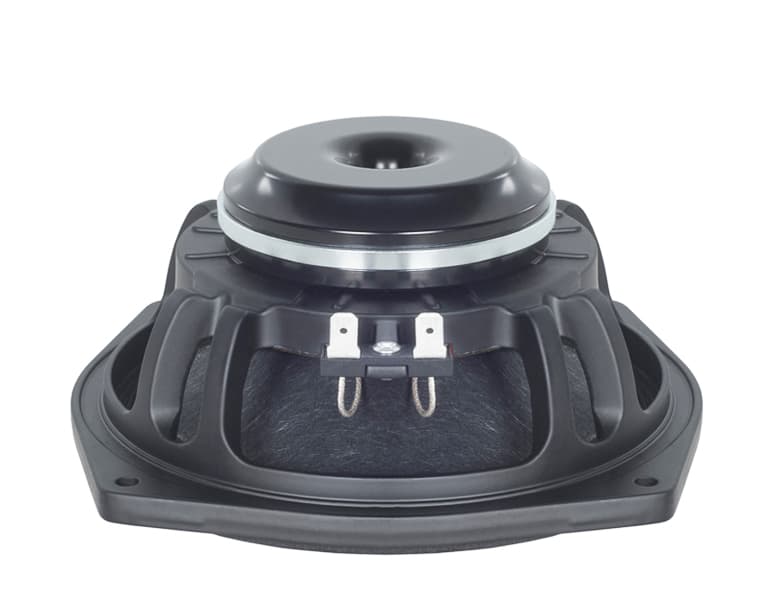

B&C
6MDN44
6.5"
Higher price
Xmax2.5mm-7%
Qts0.4-11%
BL11Tm+14%
Vas2.7L-50%
Qes0.46-4%
67%
Similarity
69% more£120.06
Beyma
6G40ND
6.5"
Higher price
Xmax3mm+11%
Qts0.38-16%
BL10.6Tm+10%
Vas3.7L-31%
Qes0.45-6%
