Overview
LF Driver6PEV series
B&C
B&C 6PEV13
B&C 6PEV13 is a 6.5" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 126Hz, Qts 0.36, Vas 6L, Xmax 2.5mm, sensitivity 96.9dB, plus 33cm³ Vd and 323 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £86.62.
Size
6.5"
Impedance
8Ω
RMS Power
120W
Sensitivity
96.9dB
99.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
323
Vented alignment
Vd
33cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 bc287d1b3ae2…Medium confidence4,768 selected pixels of 4,768 - Trace datasheet-response-trace-poc/v2

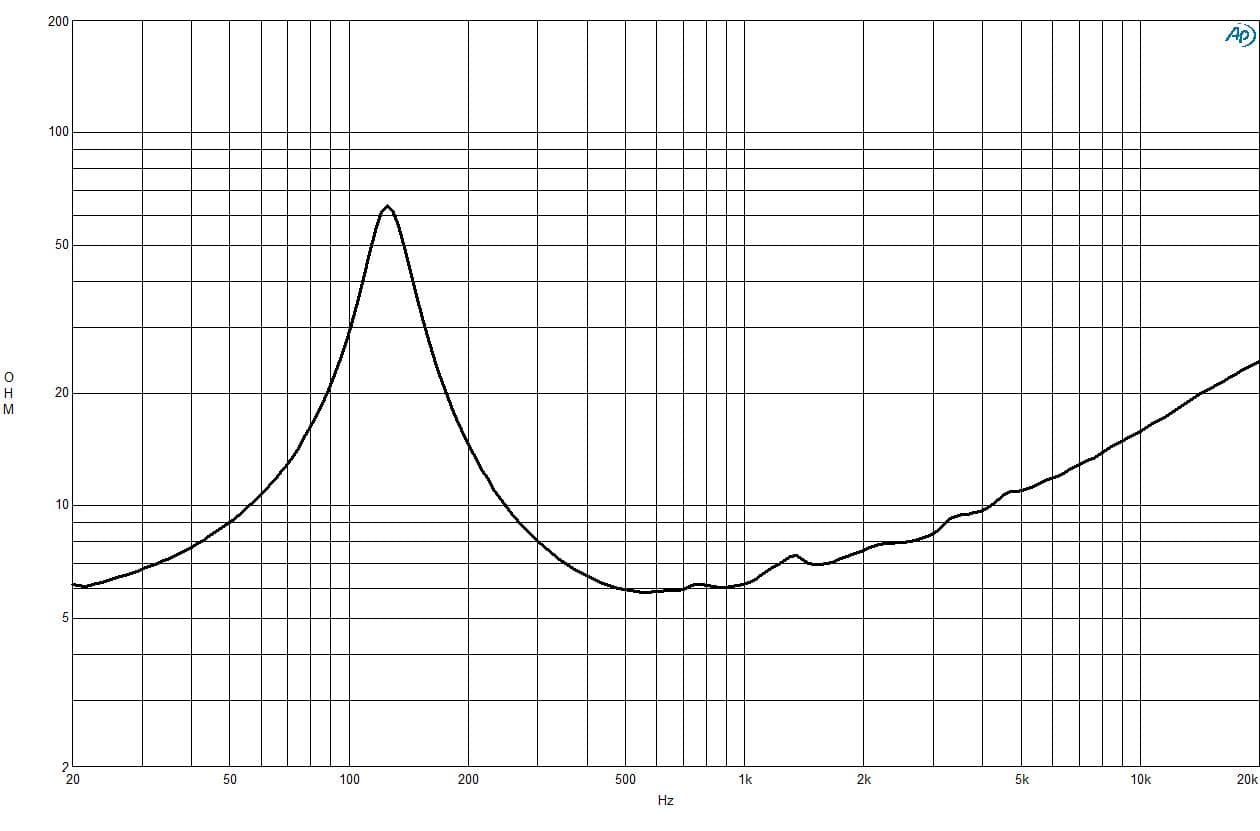

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 bc287d1b3ae2…Medium confidence3,629 selected pixels of 3,629
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs126Hz
Qts0.36
Qes0.39
Qms4.6
Vas6.0L
Re5.2Ω
Le0.60mH
BL8.2Tm
Sd132cm²
Mms6g
Xmax2.5mm
SPL97dB
Power120W
Power Nominal120W
Impedance8Ω
Min Impedance6.0Ω
F Low150Hz
F High8000Hz
Voice Coil38mm
Flux Density1.40T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorjpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£86.62
inc VAT
In stock
Best current price
Updated 7 Aug 2026
jpleisure
£86.62
Avg £86.62£0.00 vs avg (+0.0%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter187.0mm
Overall Depth78.0mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
Additional Manufacturer Specs
Bl8.2 Tm
Fs126 Hz
Le0.6 mH
Re5.2 Ω
Sd132 cm² (20.46 in²)
Ebp323 Hz
Mms6 g
Qes0.39
Qms4.6
Qts0.36
Vas6 dm³ (0.21 ft³)
η03 %
ConeRCK06PEV138
Xmax2.5 mm
Xvar1.5 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth7 mm (0.28 in)
Surround ShapeFlat
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter170 mm (6.5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.24 in)
Bolt Circle Diameter172 mm (6.77 in)
Woofer Cone TreatmentNone
Baffle Cutout Diameter145 mm (5.71 in)
Flange And Gasket Thickness11 mm (0.43 in)
Air Volume Occupied By Driver0.8 dm³ (0.03 ft³)
