FaitalPRO 6FE400 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /FaitalPRO
  4. /6FE400

Media

FaitalPRO 6FE400 6 inch 16 ohm loudspeaker driver view 1
FaitalPRO 6FE400 6 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

LF DriverFE series
FaitalPRO

FaitalPRO 6FE400

FaitalPRO 6FE400 is a 6" 16 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 100Hz, Qts 0.50, Vas 5.5L, Xmax 4.8mm, sensitivity 91.9dB, plus 67cm³ Vd and 175 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
6"
Impedance
16Ω
RMS Power
200W
Sensitivity
91.9dB
94.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
175
Vented alignment
Vd
67cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

3 curves
9987766554501002005001k2k5k10kHzdB0 degrees45 degrees
0 degrees104 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • 0 degrees

    Frequency response

    Trace datasheet-response-trace-poc/v2
    104 plotted pointsSource file SHA-256 0574e22e28af…Medium confidence510 selected pixels of 1,139
    Manufacturer datasheet, page 1

  • 45 degrees

    Frequency response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 0574e22e28af…Medium confidence1,187 selected pixels of 1,187
    Manufacturer datasheet, page 1

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 0574e22e28af…Medium confidence1,271 selected pixels of 1,271
    Manufacturer datasheet, page 1

T/S Parameters

Valid
Canonical
Fs100Hz
Qts0.50
Qes0.57
Qms3.7
Vas5.5L
Re12.0Ω
Le0.42mH
BL13.0Tm
Sd141cm²
Mms13g
Xmax4.8mm
SPL92dB
Power200W
Impedance16Ω
F Low100Hz
F High7000Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight2.7kg
Diameter166.5mm
Overall Depth84.0mm
Cutout Diameter146.0mm
Bolt Circle Diameter155.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
FaitalPRO 6FE400 6 inch 16 ohm loudspeaker driver similar-driver reference
Reference
FaitalPRO
6FE400
6"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

FaitalPRO 6PR130 6 inch 8 ohm loudspeaker driver similar driver
83%
Similarity
£124.63
FaitalPRO
6PR130
6"
Xmax4.6mm-4%
Qts0.48-4%
BL11.4Tm-12%
Vas4.2L-24%
Qes0.570%
PRV Audio 6MR500-NDY 6 inch 8 ohm loudspeaker driver similar driver
74%
Similarity
£140.11
PRV Audio
6MR500-NDY
6"
Xmax4.2mm-12%
Qts0.53+6%
BL9.8Tm-24%
Vas5.1L-7%
Qes0.54-5%

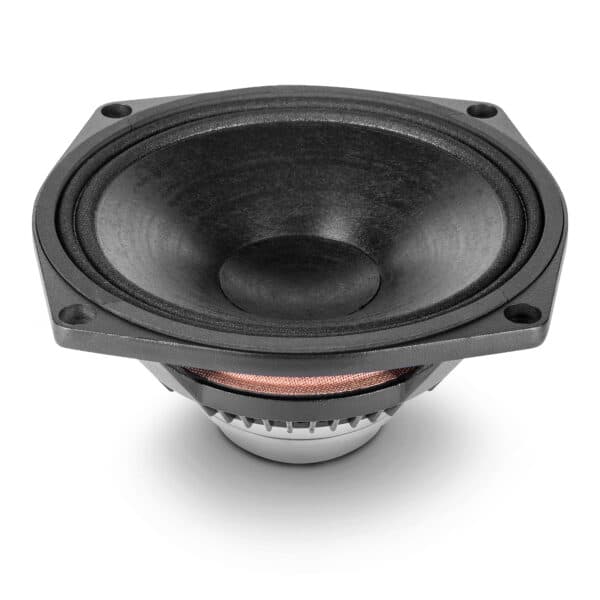

BMS 6N160 6.5 inch 16 ohm loudspeaker driver similar driver
67%
Similarity
BMS
6N160
6.5"
Xmax5mm+5%
Qts0.47-6%
BL11.3Tm-13%
Vas7.7L+40%
Qes0.58+2%
BMS 6C150 6.5 inch 16 ohm loudspeaker driver similar driver
64%
Similarity
BMS
6C150
6.5"
Xmax5mm+5%
Qts0.46-8%
BL11.4Tm-13%
Vas7.6L+38%
Qes0.53-7%
FaitalPRO 6FE300 6 inch 8 ohm loudspeaker driver similar driver
63%
Similarity
£44.66
FaitalPRO
6FE300
6"
Xmax3.9mm-18%
Qts0.46-8%
BL10Tm-23%
Vas4.7L-15%
Qes0.48-16%
PRV Audio 6MR500-NDY-4 6 inch 4 ohm loudspeaker driver similar driver
62%
Similarity
£140.11
PRV Audio
6MR500-NDY-4
6"
Xmax4.4mm-7%
Qts0.43-14%
BL8.8Tm-33%
Vas5.1L-7%
Qes0.47-18%
B&C 6CLA51 6.5 inch 16 ohm loudspeaker driver similar driver
61%
Similarity
B&C
6CLA51
6.5"
Xmax5.5mm+15%
Qts0.41-18%
BL12.8Tm-2%
Vas5.7L+4%
Qes0.46-19%
Celestion NTR06-1705B 6.5 inch 8 ohm loudspeaker driver similar driver
56%
Similarity
£110.00
Celestion
NTR06-1705B
6.5"
Xmax4mm-16%
Qts0.44-12%
BL10.7Tm-18%
Vas3.6L-34%
Qes0.58+1%
CIARE PWA6.38 6.5 inch 8 ohm loudspeaker driver similar driver
55%
Similarity
CIARE
PWA6.38
6.5"
Xmax4mm-16%
Qts0.56+12%
BL8.7Tm-33%
Vas5.6L+2%
Qes0.62+9%
FaitalPRO 5FE120 5 inch 16 ohm loudspeaker driver similar driver
54%
Similarity
FaitalPRO
5FE120
5"
Xmax5.3mm+10%
Qts0.51+2%
BL9Tm-31%
Vas6.6L+20%
Qes0.54-5%
B&C 6MD38 6.5 inch 16 ohm loudspeaker driver similar driver
53%
Similarity
£80.57
B&C
6MD38
6.5"
Xmax3.5mm-27%
Qts0.50%
BL14.5Tm+12%
Vas2.3L-58%
Qes0.61+7%
Image unavailable
49%
Similarity
PHL Audio
930
5"
Xmax4.5mm-6%
Qts0.50%
BL8.7Tm-33%
Vas2.5L-55%
Qes0.570%
