6.5-inch LF driver · 320 W

Eighteen Sound 6NTLW2000 16Ω

Name: Eighteen Sound 6NTLW2000 16 Ohm
Brand: Eighteen Sound
SKU: 6NTLW2000

100–7300 Hz

No price for delivery to the UK

All 2 offers

Open in 00 Simulator

Fs: 86Hz
Xmax: 4.9mm
SPL: 91dB
Pe: 320W
BL: 14.1T·m
Vd: 65cm³
Qts: 0.38
Vas: 5L

See all 25 specs

Published graphs

Eighteen Sound 6NTLW2000 manufacturer graph 1

Eighteen Sound 6NTLW2000 manufacturer graph 2

Specifications

Published by Eighteen Sound

Manufacturer page

Datasheet PDF

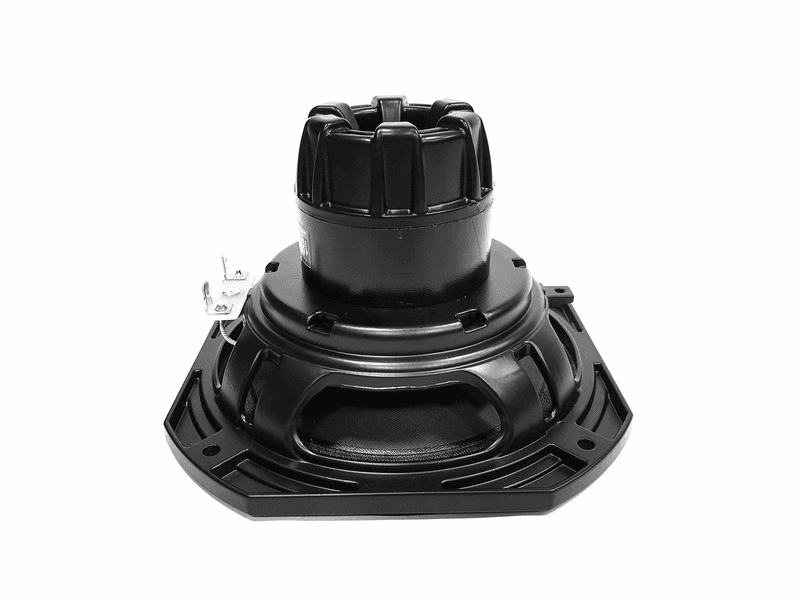

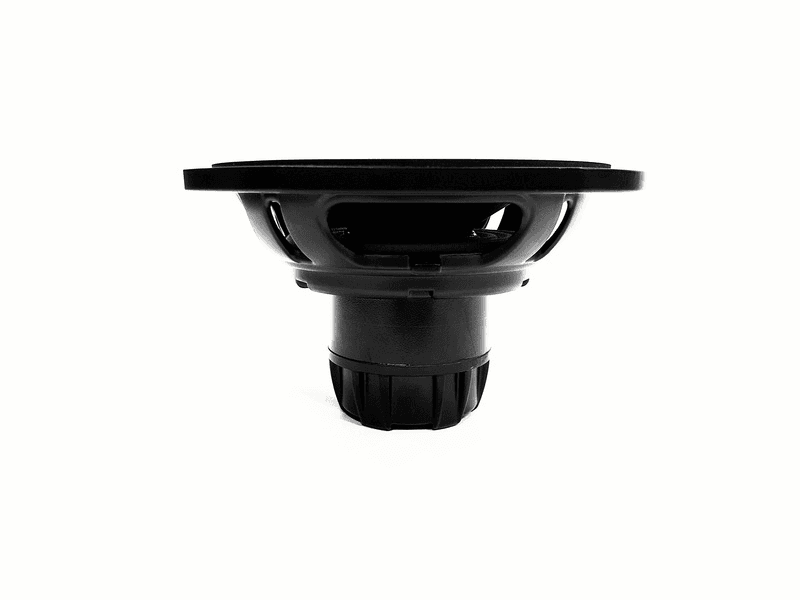

Eighteen Sound 6NTLW2000 is a 6.5-inch 16 ohm LF driver rated at 320 W RMS. The validated T/S data includes Fs 86 Hz, Qts 0.38, Vas 4.8 L, Xmax 4.9 mm, sensitivity 90.5 dB, plus 65 cm³ Vd and 200 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 86Hz
Qts: 0.38
Qes: 0.43
Qms: 3.4
Vas: 4.8L
Re: 9Ω
Le: 0.34mH

Motor and cone

BL: 14.1T·m
Sd: 133cm²
Mms: 18g
Xmax: 4.9mm
Vd †: 65cm³

Power and response

Sensitivity †: 90.5dB
Manufacturer sensitivity: 93dB
Power: 320W
Nominal power: 320W
Impedance: 16Ω
Range: 100–7300Hz
EBP †: 200 · Leans vented

Size and mounting

Diameter: 162mm
Cutout: 148mm
Bolt circle: 170mm
Depth: 108mm
Weight: 1.2kg

Other published values

Power Program: 600

Sensitivity shows 90.5 dB, calculated from the T/S values. Eighteen Sound publishes 93.0 dB, 2.5 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Eighteen Sound lists

LF · Primary · 6.5″

BL: 14.1T·m
Fs: 86Hz
Le: 0.34mH
Re: 9Ω
Sd: 133cm²
Mms: 18g
Qes: 0.43
Qms: 3.4
Qts: 0.38
SPL: 90.5dB
Vas: 4.8L
Xmax: 4.9mm
Power: 320W
Impedance: 16Ω
Sensitivity: 93dB
Low limit: 100Hz
Nominal power: 320W
Power Program: 600
Calculated sensitivity †: 90.5dB
High limit: 7300Hz
Manufacturer sensitivity: 93dB
Weight: 1.2kg
Diameter: 162mm
Depth: 108mm
Cutout: 148mm
Bolt circle: 170mm

Designs

Cabinets for the 6NTLW2000: a design and a suggested box from Eighteen Sound.

All 6NTLW2000 designs How we find designs

Eighteen Sound’s design

From the maker, with plans to download

Picture: Eighteen Sound

Eighteen Sound design

6" compact line array

Drivers: 2 × 6NTLW2000, 16 Ω

Plans · ZIP Plans · PDF Eighteen Sound designs

Eighteen Sound’s suggested box

From Eighteen Sound’s 6NTLW2000 page

Eighteen Sound’s suggestion5 L vented boxFrom Eighteen Sound’s 6NTLW2000 page

Net volume: 5L
Tuning: 85Hz

Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.

Open this box in 00 Simulator

Modelling the box in 00 Simulator…

Compare

Same-size drivers, compared with the 6NTLW2000. Clear differences are green when better and red when worse.

This driver6NTLW2000

Best price

–

86 Hz

Qts

0.38

Vas

4.8 L

14.1 T·m

Xmax

4.9 mm

Sensitivity

90.5 dB

Power

320 W

Dayton AudioSIG180-4

£40.97

Fs41 Hz −53%

Qts0.38 –

Vas23.2 L +383%

BL6.6 T·m −53%

Xmax5 mm –

Sensitivity87.8 dB −2.7

FaitalPRO6FE300

£41.32

Fs98 Hz +14%

Qts0.41 +8%

Vas4.4 L −8%

BL8.3 T·m −41%

Xmax3.9 mm −20%

Sensitivity91.9 dB +1.4

CIAREHW161N

£43.46

Fs47 Hz −45%

Qts0.37 –

Vas19.9 L +315%

BL7.4 T·m −47%

Xmax5 mm –

Sensitivity88.6 dB −1.9

HiViC6.5

£52.15

Fs53 Hz −38%

Qts0.38 –

Vas13.3 L +177%

BL9.1 T·m −36%

Xmax4.9 mm –

Sensitivity88.3 dB −2.2

CelestionTFX0615

£58.42

Fs97 Hz +13%

Qts0.38 –

Vas7.2 L +50%

BL9.8 T·m −30%

Xmax5.3 mm +7%

Sensitivity93.8 dB +3.3

LavoceWAF061.80

£63.34

Fs65 Hz −24%

Qts0.42 +11%

Vas7.3 L +51%

BL9.5 T·m −33%

Xmax4.9 mm –

Sensitivity88.6 dB −1.9

FaitalPRO6PR160

£82.74

Fs90 Hz +5%

Qts0.33 −13%

Vas5.9 L +23%

BL11 T·m −22%

Xmax5 mm –

Sensitivity92.9 dB +2.4

FaitalPRO6PR122

£84.13

Fs110 Hz +28%

Qts0.39 –

Vas4.7 L –

BL10.5 T·m −26%

Xmax2.8 mm −44%

Sensitivity93.6 dB +3.1

FaitalPRO6RS140

£87.80

Fs65 Hz −24%

Qts0.36 −5%

Vas9.9 L +106%

BL14.2 T·m –

Xmax5.5 mm +12%

Sensitivity90.6 dB –

Beyma6P200FE

£88.36

Fs66 Hz −23%

Qts0.35 −8%

Vas8.8 L +83%

BL13.6 T·m −4%

Xmax4 mm −18%

Sensitivity90.3 dB –

Sica6 N 2.5 PL

£95.19

Fs80 Hz −7%

Qts0.27 −29%

Vas4.9 L –

BL13.5 T·m −4%

Xmax4.5 mm −8%

Sensitivity91.4 dB +0.9

Beyma6G40ND

£96.07

Fs100 Hz +16%

Qts0.38 –

Vas3.7 L −23%

BL10.6 T·m −25%

Xmax3 mm −39%

Sensitivity91.2 dB +0.7

REDCATT6NPM

£101.50

Fs150 Hz +74%

Qts0.35 −8%

Vas2.9 L −40%

BL13.7 T·m –

Xmax0.4 mm −92%

Sensitivity96.1 dB +5.6

WavecorSW178WA01

£120.43

Fs38 Hz −56%

Qts0.36 −4%

Vas12.2 L +154%

BL12 T·m −15%

Xmax5 mm –

Sensitivity84.6 dB −5.9

B&C6MBX44

£121.81

Fs115 Hz +34%

Qts0.35 −8%

Vas4 L −17%

BL14.7 T·m +4%

Xmax3.5 mm −29%

Sensitivity93.7 dB +3.2

CIARECMI160ND

£128.55

Fs73 Hz −15%

Qts0.41 +8%

Vas6 L +25%

BL7.8 T·m −45%

Xmax4.5 mm −8%

Sensitivity89.2 dB −1.3

B&C6FHX51

£129.07

Fs85 Hz –

Qts0.37 –

Vas5 L +4%

BL11.3 T·m −20%

Xmax5.7 mm +16%

Sensitivity90.9 dB –

PRV Audio6MR500-NDY-4

£136.19

Fs100 Hz +16%

Qts0.43 +13%

Vas5.1 L +7%

BL8.8 T·m −38%

Xmax4.4 mm −10%

Sensitivity92.4 dB +1.9

Scanspeak18W/8535-01

£145.25

Fs25 Hz −71%

Qts0.38 –

Vas68.9 L +1335%

BL5.9 T·m −58%

Xmax5 mm –

Sensitivity85.7 dB −4.8

Scanspeak15W/8534T00

£154.58

Fs32 Hz −63%

Qts0.39 –

Vas30 L +525%

BL5.5 T·m −61%

Xmax5 mm –

Sensitivity85.6 dB −4.9

FaitalPRO6HX150

£155.14

Fs88 Hz –

Qts0.34 −11%

Vas6.3 L +31%

BL12 T·m −15%

Xmax4.3 mm −11%

Sensitivity92.9 dB +2.4

B&C6HCX51

£175.82

Fs89 Hz +3%

Qts0.38 –

Vas5 L +4%

BL10.9 T·m −23%

Xmax5.5 mm +12%

Sensitivity91.5 dB +1

B&C6CLA51

No current price

Fs89 Hz +3%

Qts0.41 +8%

Vas5.7 L +19%

BL12.8 T·m −9%

Xmax5.5 mm +12%

Sensitivity91.4 dB +0.9

HiViD5.8B

No current price

Fs52 Hz −40%

Qts0.37 –

Vas5.6 L +17%

BL9 T·m −36%

Xmax4.8 mm –

Sensitivity84.8 dB −5.7

Oberton6NM150

No current price

Fs124 Hz +44%

Qts0.38 –

Vas4 L −17%

BL11.6 T·m −18%

Xmax2.3 mm −54%

Sensitivity94.8 dB +4.3

HiViD6G

No current price

Fs44 Hz −49%

Qts0.38 –

Vas12.1 L +152%

BL9.5 T·m −33%

Xmax4.8 mm –

Sensitivity85.8 dB −4.7

LavoceWSN061.52

No current price

Fs90 Hz +5%

Qts0.39 –

Vas5.9 L +23%

BL9.9 T·m −30%

Xmax3.8 mm −22%

Sensitivity92.1 dB +1.6

Oberton6NCX

No current price

Fs89 Hz +4%

Qts0.36 −4%

Vas7.0 L +46%

BL9 T·m −36%

Xmax4.8 mm −3%

Sensitivity93.1 dB +2.6

FaitalPRO6FE400

No current price

Fs100 Hz +16%

Qts0.50 +32%

Vas5.5 L +15%

BL13 T·m −8%

Xmax4.8 mm –

Sensitivity91.9 dB +1.4

Tang BandW6-1936S

No current price

Fs30 Hz −65%

Qts0.36 −5%

Vas4.7 L –

BL21.6 T·m +53%

Xmax7.4 mm +51%

Sensitivity76.9 dB −13.6
