Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 6 N 2.5 PL 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

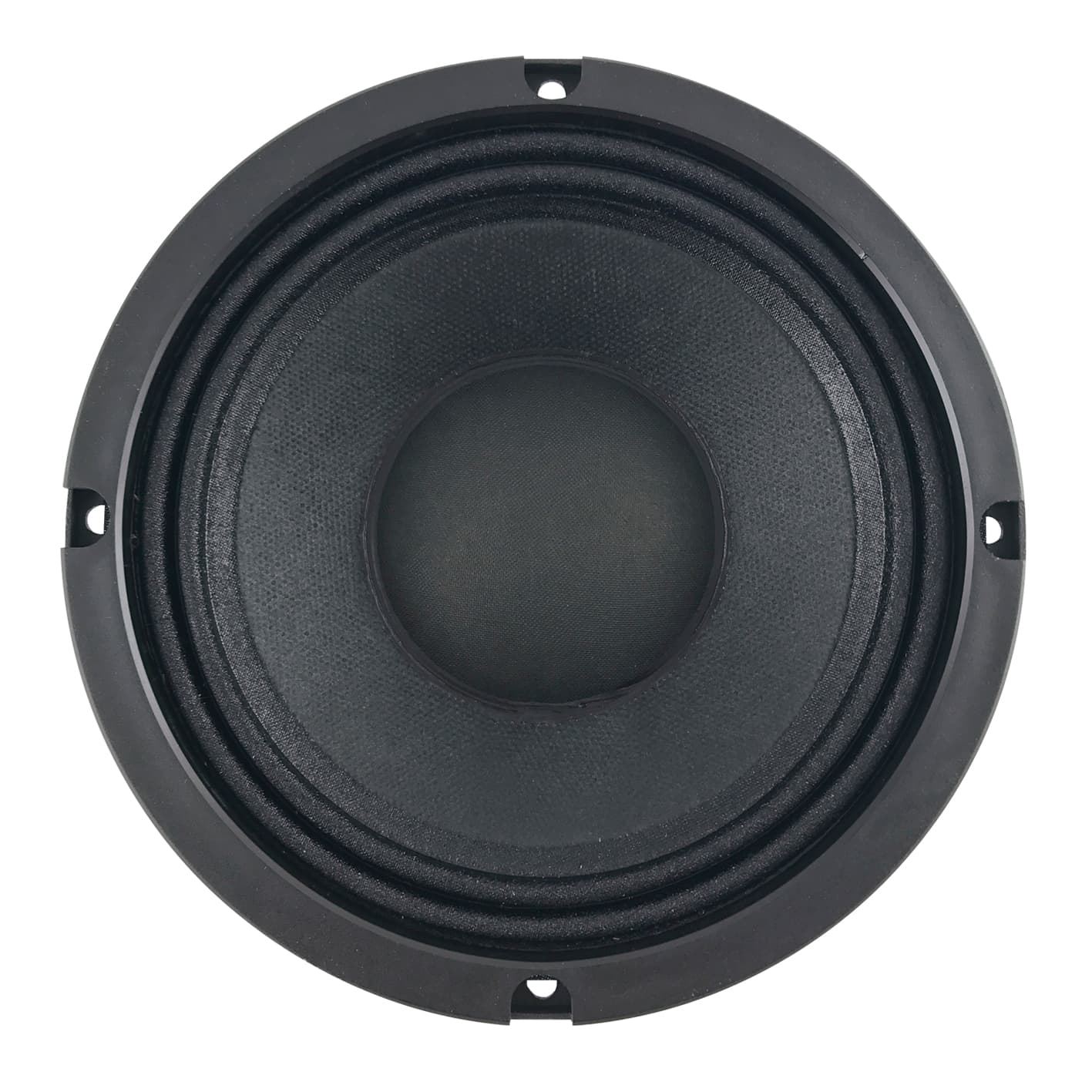

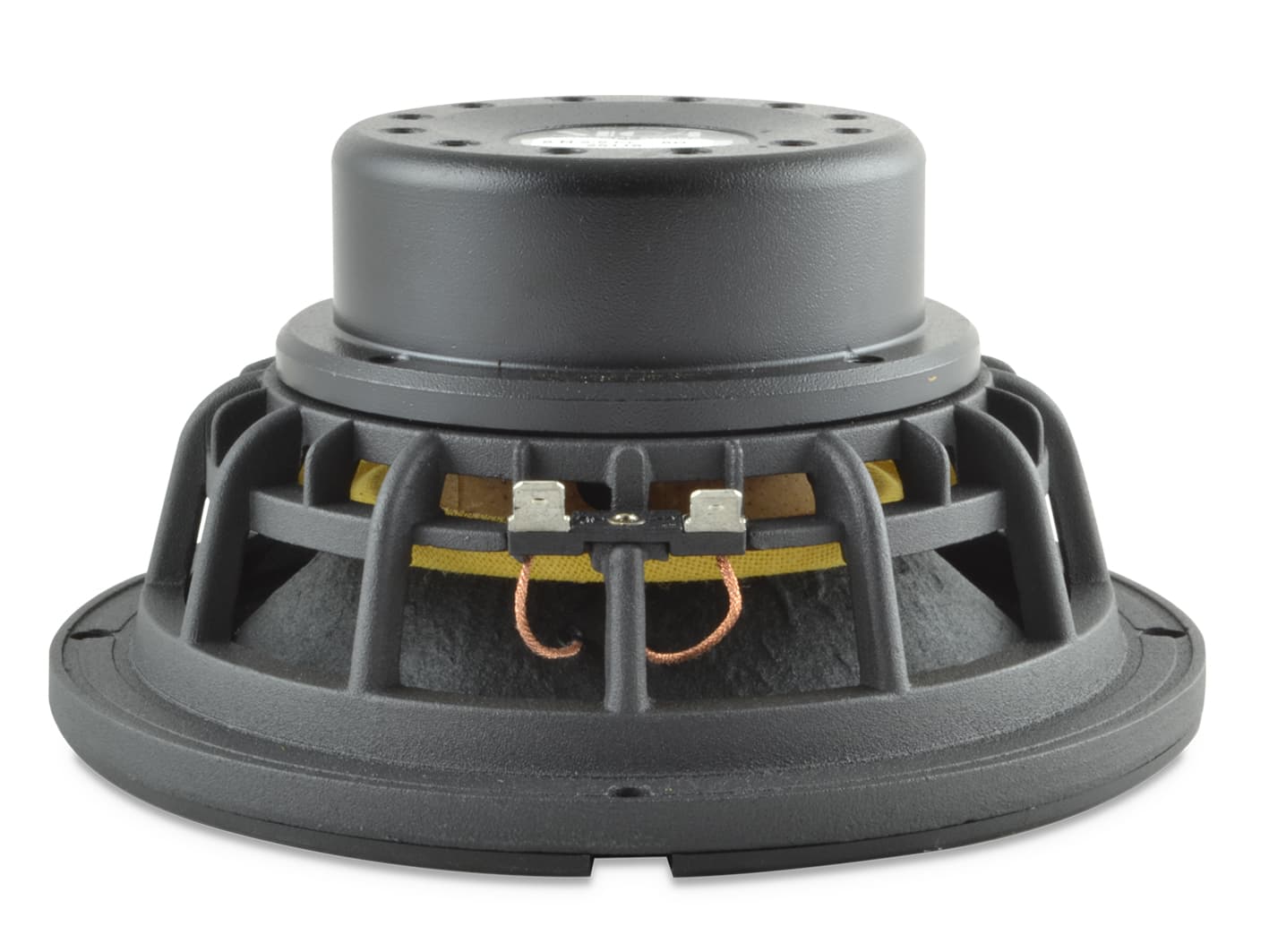

Sica 6 N 2.5 PL
Sica 6 N 2.5 PL is a 6" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 80Hz, Qts 0.27, Vas 4.9L, Xmax 4.5mm, sensitivity 91.4dB, plus 55cm³ Vd and 276 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
300W
Sensitivity
91.4dB
92.5dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
276
Vented alignment
Vd
55cm³
T/S Parameters
Valid
Fs80Hz
Qts0.27
Qes0.29
Qms3.0
Vas4.9L
Re6.2Ω
Le0.62mH
BL13.5Tm
Sd123cm²
Mms17g
Xmax4.5mm
SPL91dB
Power300W
Impedance8Ω
Voice Coil65mm
Flux Density1.14T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter166.0mm
Overall Depth82.8mm
Cutout Diameter143.0mm
Bolt Circle Diameter155.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
6 N 2.5 PL
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
Dayton Audio
APOLLO 6N
6.5"
Xmax3.8mm-16%
Qts0.28+4%
BL14.9Tm+11%
Vas3.5L-29%
Qes0.290%
64%
Similarity
£84.62
Lavoce
MAN062.00
6.5"
Xmax3.9mm-13%
Qts0.3+11%
BL12.7Tm-6%
Vas4.1L-17%
Qes0.33+14%
57%
Similarity
£85.36
FaitalPRO
6PR160
6"
Xmax5mm+11%
Qts0.33+22%
BL11Tm-19%
Vas5.9L+20%
Qes0.35+21%
56%
Similarity
B&C
6CLA51
6.5"
Xmax4.8mm+7%
Qts0.32+19%
BL11.4Tm-16%
Vas4.3L-12%
Qes0.36+24%
54%
Similarity
PRV Audio
6MR600X-NDY
6"
Xmax3.5mm-22%
Qts0.22-19%
BL15.8Tm+17%
Vas5.6L+13%
Qes0.22-24%
52%
Similarity
£74.45
B&C
6MBX44
6.5"
Xmax3.5mm-22%
Qts0.31+15%
BL11.7Tm-13%
Vas4.1L-16%
Qes0.34+17%
50%
Similarity
£86.62
B&C
6PS44
6.5"
Xmax4.5mm0%
Qts0.33+22%
BL11Tm-19%
Vas7L+43%
Qes0.34+17%
47%
Similarity
PRV Audio
MT6MR600CF-NDY-2
6.5"
Xmax3.3mm-28%
Qts0.24-11%
BL9.9Tm-26%
Vas4.4L-11%
Qes0.24-17%
44%
Similarity
£129.00
B&C
5FCX44
5"
Xmax5mm+11%
Qts0.25-7%
BL10.5Tm-22%
Vas7L+43%
Qes0.25-14%
41%
Similarity
£93.42
Beyma
5P200ND
5"
Xmax5.7mm+27%
Qts0.23-15%
BL10.5Tm-22%
Vas4.8L-2%
Qes0.24-17%
40%
Similarity
£66.17
FaitalPRO
5PR160
5"
Xmax5.1mm+13%
Qts0.31+15%
BL9.6Tm-29%
Vas3.7L-24%
Qes0.33+14%
