Overview
LF Driver
Eighteen Sound
Eighteen Sound 6ND410
Eighteen Sound 6ND410 is a 6.5" 8 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 120Hz, Qts 0.24, Vas 6.2L, Xmax 2mm, sensitivity 98dB, plus 29cm³ Vd and 444 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
180W
Sensitivity
98.0dB
102.0dBmanufacturer; using T/S-derived value (4.0dB delta).
EBP
444
Vented alignment
Vd
29cm³

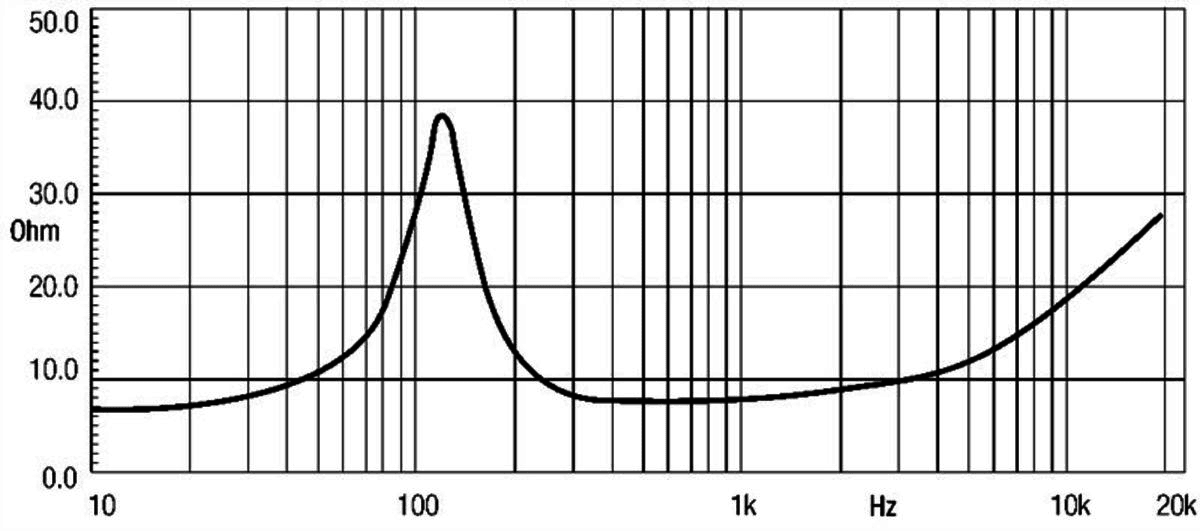

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,261 selected pixels of 1,261
T/S Parameters
Valid
Fs120Hz
Qts0.24
Qes0.27
Qms2.2
Vas6.2L
Re5.9Ω
Le0.67mH
BL11.6Tm
Sd143cm²
Mms8g
Xmax2.0mm
SPL98dB
Power180W
Power Nominal180W
Impedance8Ω
F Low200Hz
F High8000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter162.0mm
Overall Depth60.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter170.0mm
