Overview
LF DriverNSM series
Peerless

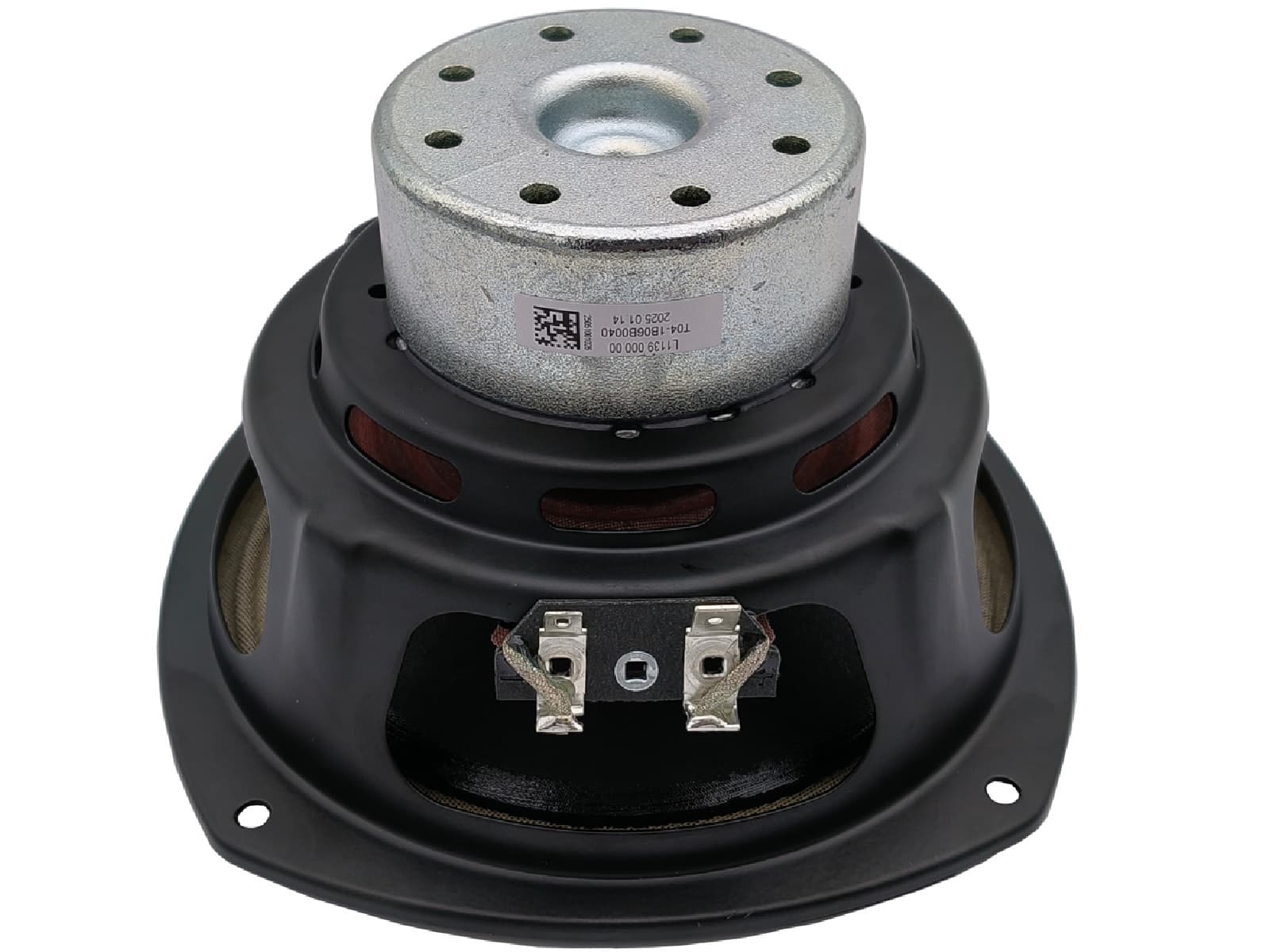

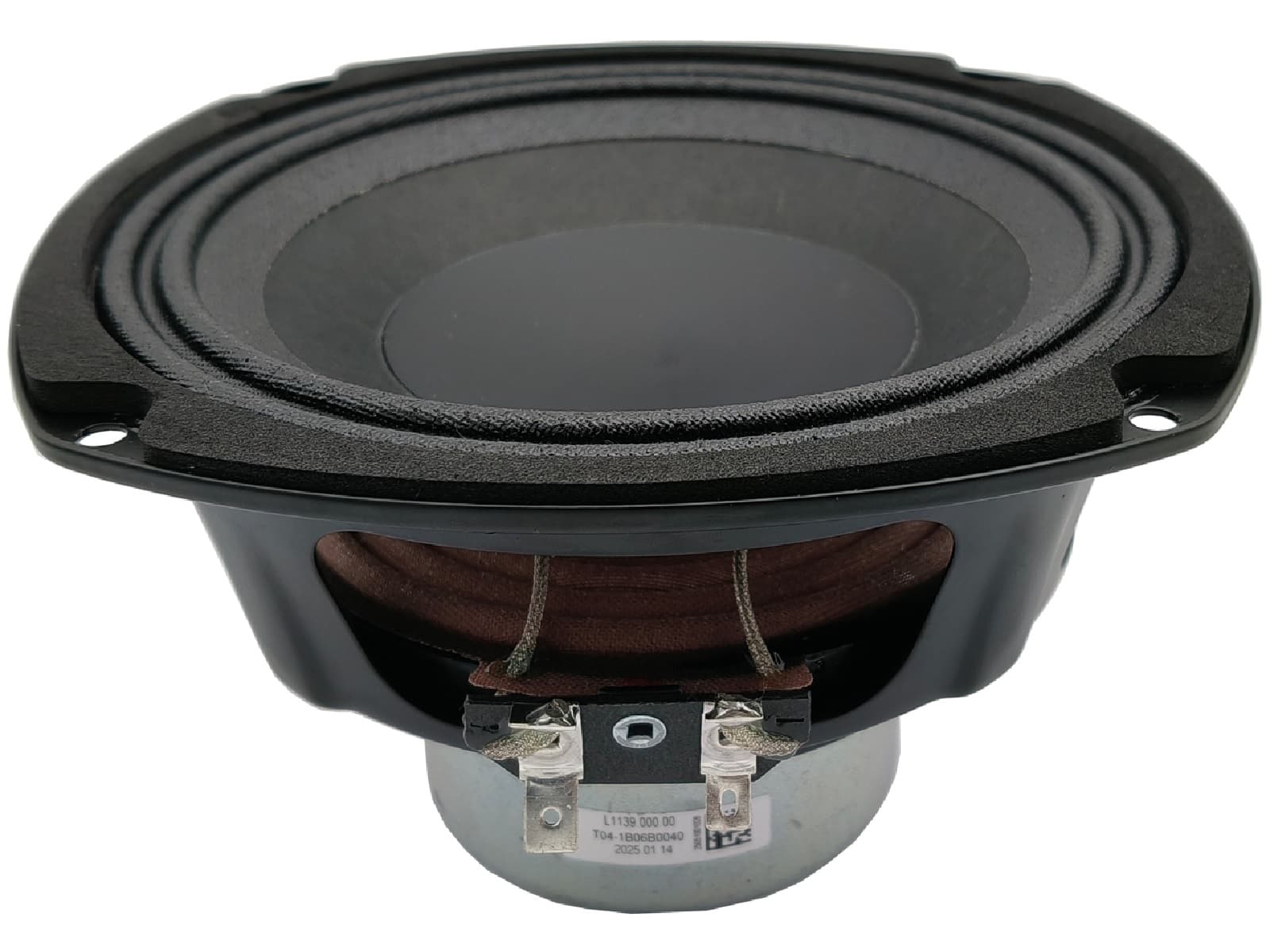

Peerless NSM-0620R00-04
Peerless NSM-0620R00-04 is a 6.5" 4 ohm LF driver rated at 225W RMS. The validated T/S data includes Fs 88Hz, Qts 0.22, Vas 4.2L, Xmax 6.8mm, sensitivity 92.9dB, plus 93cm³ Vd and 376 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
225W
Sensitivity
92.9dB
91.1dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
376
Vented alignment
Vd
93cm³
T/S Parameters
Valid
Fs88Hz
Qts0.22
Qes0.23
Qms3.8
Vas4.2L
Re2.7Ω
Le0.14mH
BL11.5Tm
Sd137cm²
Mms21g
Xmax6.8mm
SPL93dB
Power225W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
