Overview
LF Driver6NMB series
Oberton

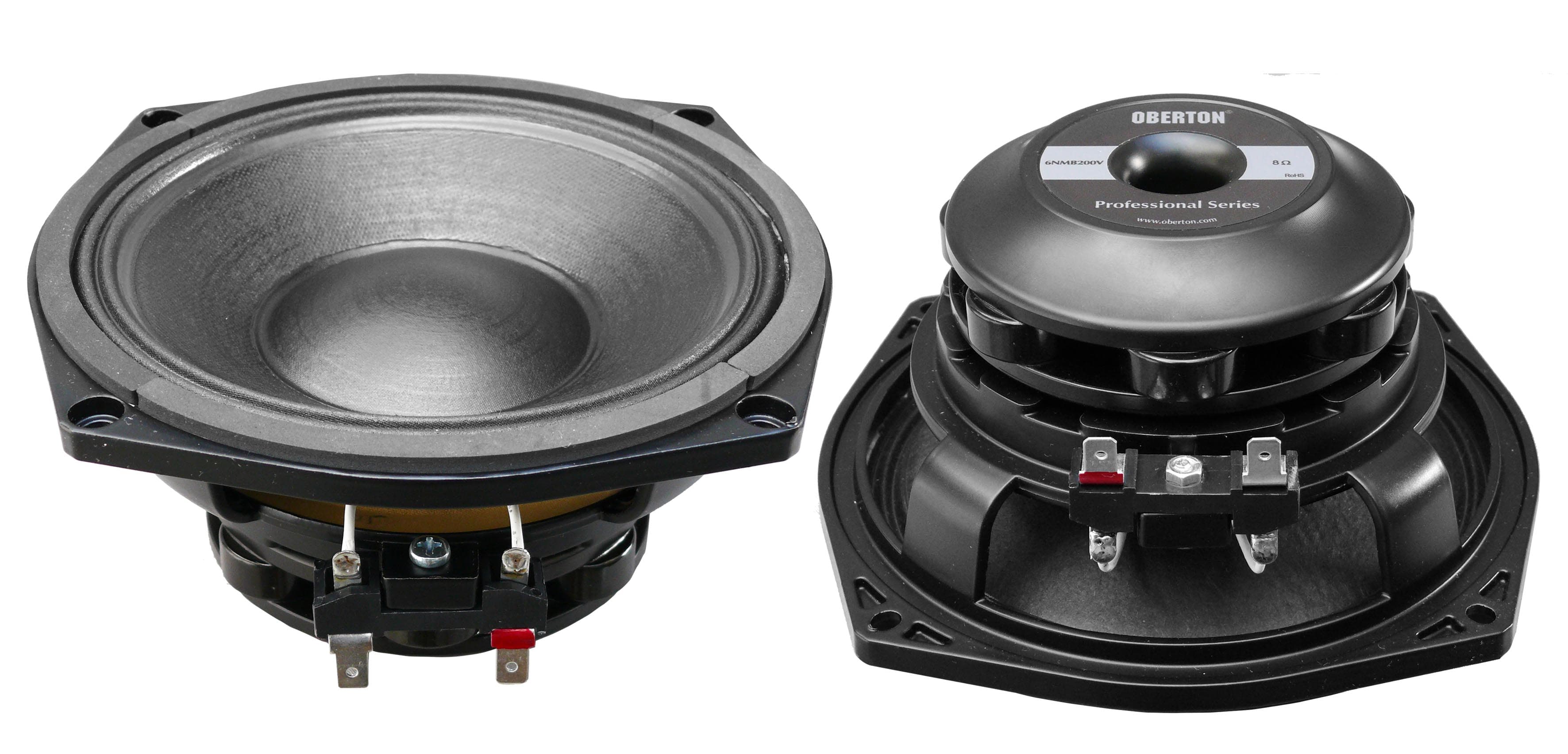

Oberton 6NMB200V
Oberton 6NMB200V is a 6.5" 16 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 79Hz, Qts 0.27, Vas 9.5L, Xmax 4.5mm, sensitivity 94.3dB, plus 63cm³ Vd and 283 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
16Ω
RMS Power
200W
Sensitivity
94.3dB
200.0dBmanufacturer; using T/S-derived value (105.7dB delta).
EBP
283
Vented alignment
Vd
63cm³
T/S Parameters
Valid
Fs79Hz
Qts0.27
Qes0.28
Qms5.8
Vas9.5L
Re10.7Ω
Le0.38mH
BL15.2Tm
Sd139cm²
Mms12g
Xmax4.5mm
SPL94dB
Power200W
Impedance16Ω
Min Impedance12.5Ω
F Low200Hz
F High5000Hz
Voice Coil51mm
Flux Density1.37T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

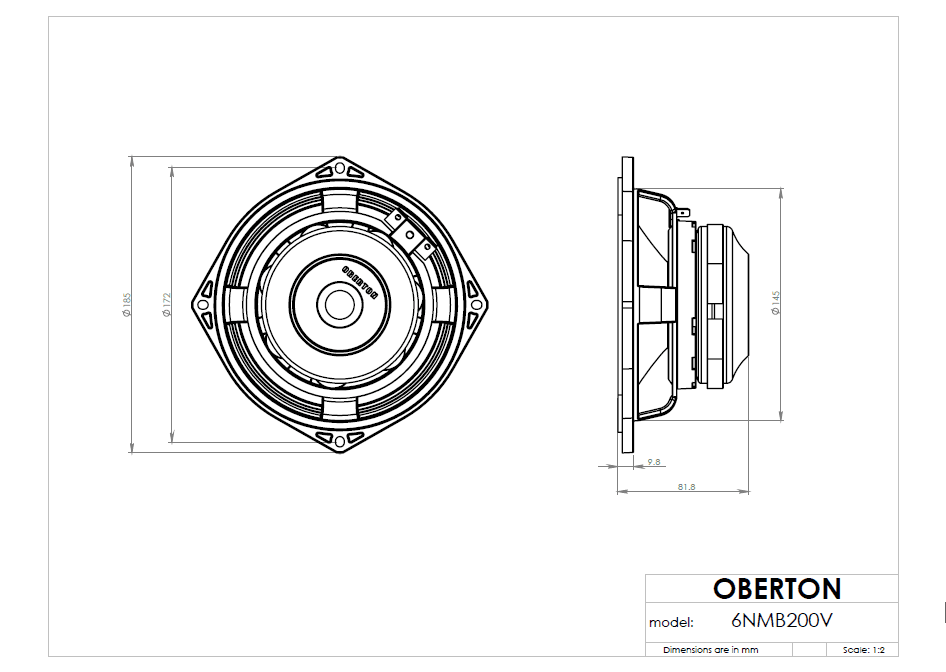

Dimensions & Physical
Weight1.6kg
Diameter185.0mm
Overall Depth81.8mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
