Overview
LF Driver
Tang Band

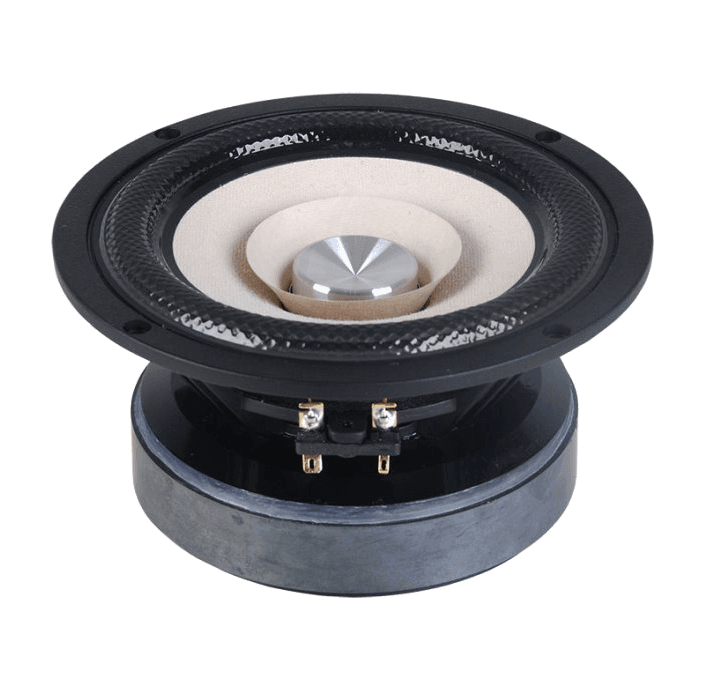

Tang Band W6-1559S
Tang Band W6-1559S is a 6" 6.6 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 45Hz, Qts 0.24, Vas 13.3L, Xmax 5.5mm, sensitivity 88.9dB, plus 78cm³ Vd and 180 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
6.6Ω
RMS Power
50W
Sensitivity
88.9dB
EBP
180
Vented alignment
Vd
78cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsSource file SHA-256 4c57bcb60b44…Medium confidence703 selected pixels of 1,988 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsSource file SHA-256 4c57bcb60b44…Medium confidence2,753 selected pixels of 2,753
T/S Parameters
Valid
Fs45Hz
Qts0.24
Qes0.25
Qms7.1
Vas13.3L
Re6.6Ω
Le0.32mH
BL13.7Tm
SdDerived142cm²
Mms25g
Xmax5.5mm
SPL89dB
Power50W
Impedance7Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
